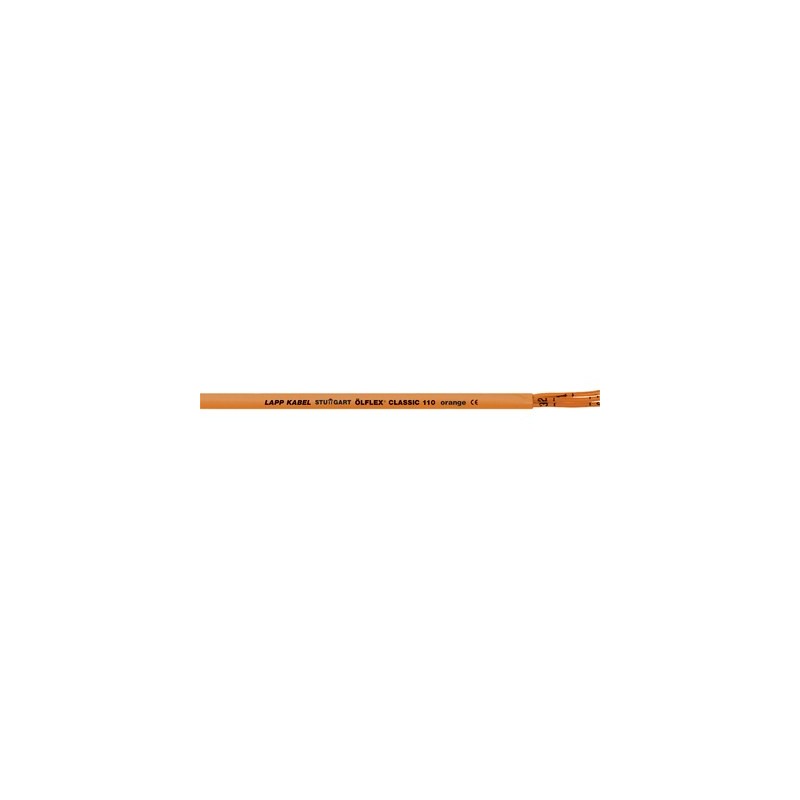

0019700 ÖLFLEX CLASSIC 110 Orange 2X1 LAPP ÖLFLEX CLASSIC 110 Orange 2X1

Benefits

• Space-saving installation due to small cable diameters
• High electrical performance due to 4 kV test voltage

Application range

• According to EN 60204-1 (VDE 0113-1), conductors of control circuits that are supplied by an external power source and/or remain live when the main switch is deactivated must be orange
• Electrical lighting and socket circuits for maintenance or repair purposes
• Undervoltage protection circuits
• Interlocking control circuits
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on IEC 60227-5 and EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Orange cores with black numbers
• Outer sheath: PVC, orange (similar to RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Orange cores with black numbers

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Torsion movement in WTG

• TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
