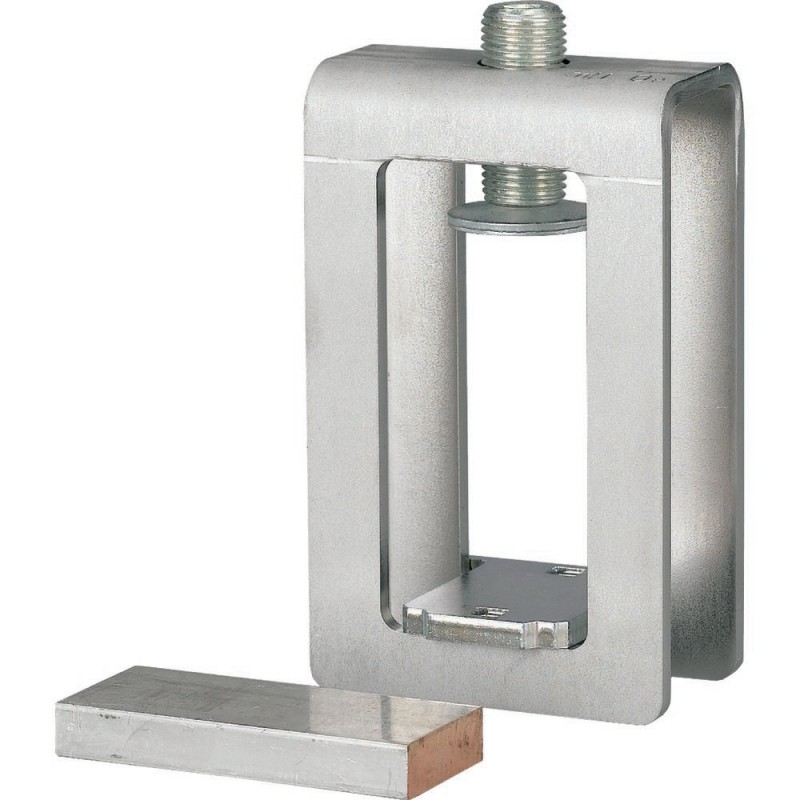

AKP1000 107199 Y7-107199 EATON ELECTRIC Profile terminal 51x20-42
AKP1000
107199
Y7-107199
EATON-MOELLER
Profile terminal 51x20-42
AKP1000
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Profile terminal 51x20-42
Profile terminal, termination to busbars without drilling, put a spacer between the laminated copper busbars when connecting in parallel, 1000mm², terminal area, 51x20-42, width 94mm, Ie=1600 A, can be used for double T profile, 60 mm system, 185 mm system
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
RoHS conform
CSA (Class No. 3211-37)
UL (Category Control Number NMTR2, NMTR8)
UL508A
North America (UL listed, CSA certified)
IEC 60439-1
CSA-C22.2 No. 14
CSA (File No. 236217)
CE marking
Delivery program
Technical data - electrical
Technical data - mechanical
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
1000 mm² (Cu band)
Additional information
Connections
Current limiting circuit breaker, refer to approbation report
- Termination to busbars without drilling
- Put a spacer between the laminated copper busbars when connecting in parallel
Strip conductor connection
Feeder circuits
185 mm system
Connection
60 mm system
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 40 mm |
| Busbar width (EF007219) | 30 mm |
| Suitable for (EF000073) | T-rail |
| Width clamp (EF007092) | 94 mm |
| Max. conductor cross section (EF004969) | 1000 mm² |
| Max. rated operation current Ie (EF007356) | 1600 A |
| Suitable for round conductor connection (EF007258) | No |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKP1000 Y7-107199 107199 ES_107198.pdf | 139 Kbytes |
|
