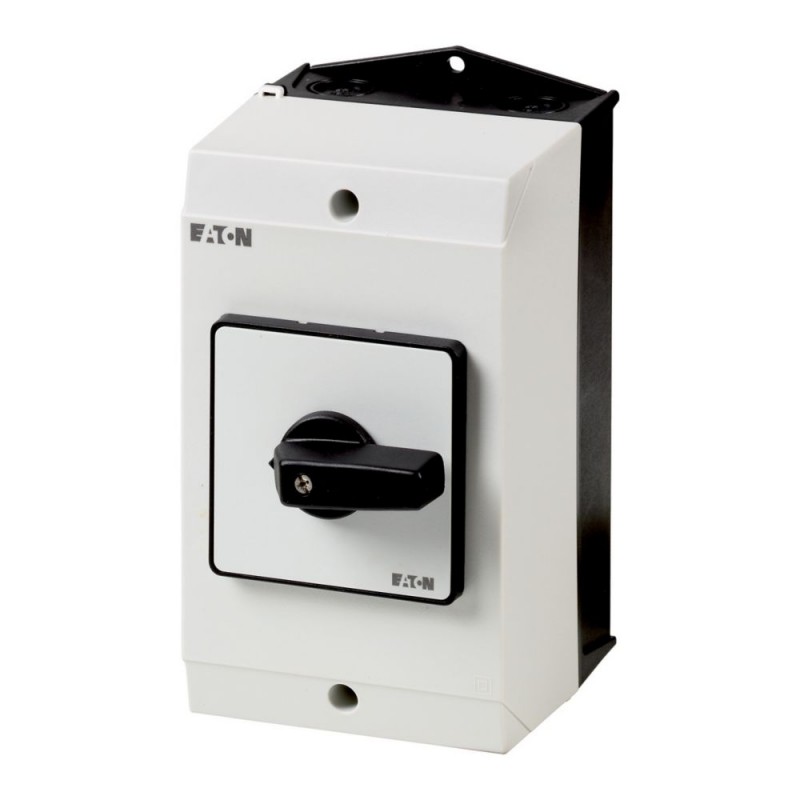

P3-63/I3 207351 Y7-207351 EATON ELECTRIC On-Off switch, +housing, 3p, 63A
P3-63/I3
207351
Y7-207351
EATON-MOELLER
On-Off switch, +housing, 3p, 63A
P3-63/I3
Eaton Moeller® series P3 P3, 63 A, surface mounting
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/63A, degree of protection Front IP65, black handle. Switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 63 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 63 A |
| Rated operation power at AC-3, 400 V (EF001364) | 30 kW |
| Rated short-time withstand current lcw (EF007050) | 1.26 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 37 kW |
| Switching power at 400 V (EF009166) | 30 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 120 mm |
| Height (EF000040) | 222 mm |
| Depth (EF000049) | 152 mm |
