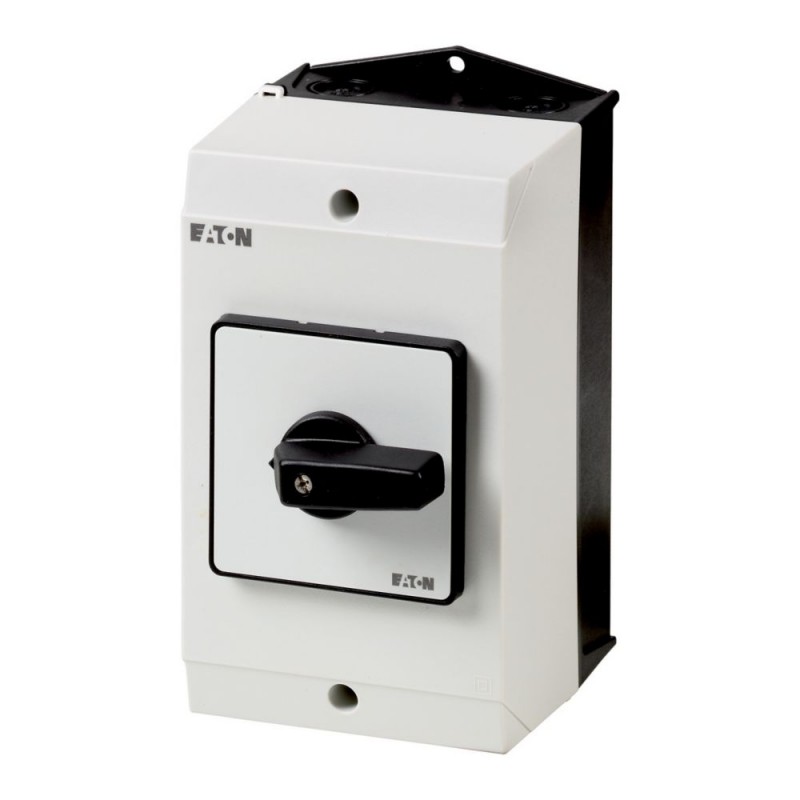

P3-63/I3 207351 Y7-207351 EATON ELECTRIC Выключатель в корпусе, 3Р 63А Увеличить
Изображения носят исключительно иллюстративный. Пожалуйста, ознакомьтесь с техническим паспортом.

P3-63/I3 207351 Y7-207351 EATON ELECTRIC Выключатель в корпусе, 3Р 63А

P3-63/I3

207351

Y7-207351

EATON-MOELLER

Выключатель в корпусе, 3Р 63А

Выключатель ВКЛ-ВЫКЛ; 3-полюс; 63; крепление в коробке

P3, 63 A, surface mounting

Главный выключатель/выключатель-разъединитель вкл/выкл в соответствии с IEC/EN 60947-3, 690В/63А, степень защиты Передняя IP65, черная рукоятка. Выключатели-разъединители П3 имеют очень компактную и прочную конструкцию. Ручной привод воздействует непосредственно на соединение контактов. При выключении контакты принудительно размыкаются. Общие конструктивные особенности: монтаж изоляционного материала на поверхность корпуса, скрытый монтаж, монтаж сзади, монтаж на сервисный распределительный щит IVS

Подробнее


Низковольтное оборудование > Выключатель-разъединитель нагрузки

Разъединители и кулачковые переключатели

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

Общая стоимость: $188.37
Цена за единицу: $188.37
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Related products

▲

Best sellers

▲

Описание

▲


P3, 63 A, surface mounting
Main switch/switch-disconnector on-off according to IEC/EN 60947-3, 690V/63A, degree of protection Front IP65, black handle. Switch-disconnectors P3 have a very compact and robust design. The manual drive act directly to the connection of the contacts. The contacts are forced open when switching off. Design general: insulating material-surface mounting enclosure, flush mounting, rear mounting, IVS service distribution board mounting

General specifications
Product name
Eaton Moeller® series P3 On-Off switch
Part no.
P3-63/I3
EAN
4015082073510
Product Length/Depth
152 millimetre
Product height
222 millimetre
Product width
120 millimetre
Product weight
0.918 kilogram
Compliances
CE
Product Tradename
P3
Product Type
On-Off switch
Product Sub Type
None
Features & Functions
Fitted with:
Black thumb grip and front plate
Number of poles
3
General information
Accessories
Auxiliary contact or neutral conductor fitted by user.
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
Mounting method
Surface mounting
Suitable for
Ground mounting
Electrical rating
Rated operational power at AC-3, 380/400 V, 50 Hz
30 kW
Rated operational power at AC-23A, 400 V, 50 Hz
37 kW
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
63 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Short-circuit rating
Rated conditional short-circuit current (Iq)
4 kA (Load side)
100 kA (Supply side)
Rated short-time withstand current (Icw)
1.26 kA
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Actuator
Actuator color
Black
Actuator type
Toggle
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 207351 Low-voltage industrial controls and switchgear (EC000216)
Характеристика Значение
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 63 A
Rated permanent current at AC-23, 400 V (EF011777) 63 A
Rated permanent current at AC-21, 400 V (EF009165) 63 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Rated short-time withstand current lcw (EF007050) 1.26 kA
Rated operation power at AC-23, 400 V (EF007027) 37 kW
Switching power at 400 V (EF009166) 30 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Toggle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 120 mm
Height (EF000040) 222 mm
Depth (EF000049) 152 mm

Datasheet - PDF

▲
Заглавие: Размер: Тип:
PDF EATON SAFE SWITCHING EN.pdf 935 Kbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
P3-63/I3 Y7-207351 207351 RU_207351.pdf 106 Kbytes P3-63/I3 Y7-207351 207351 RU_207351.pdf
