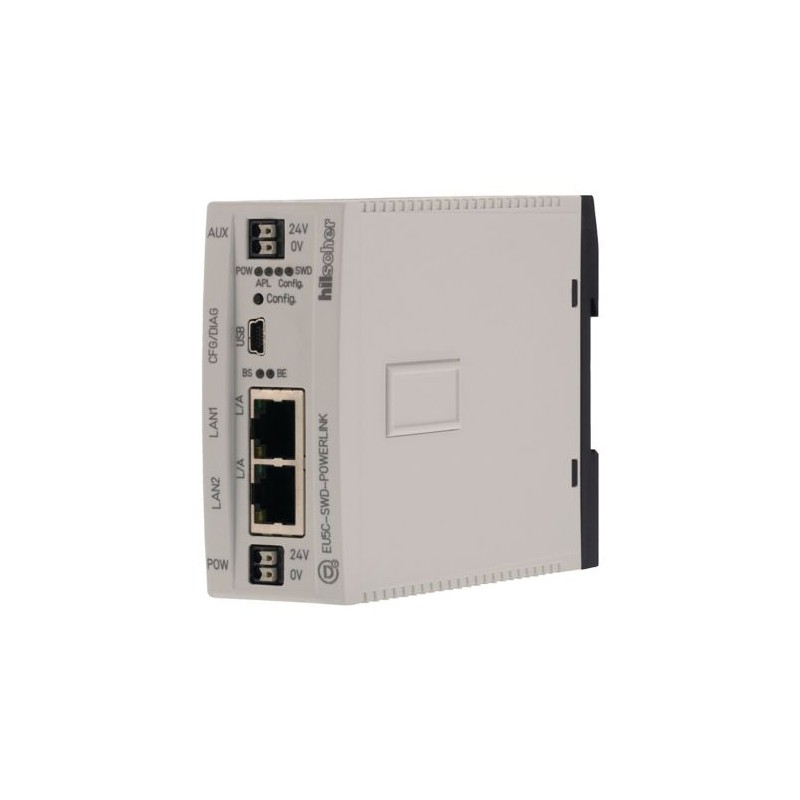

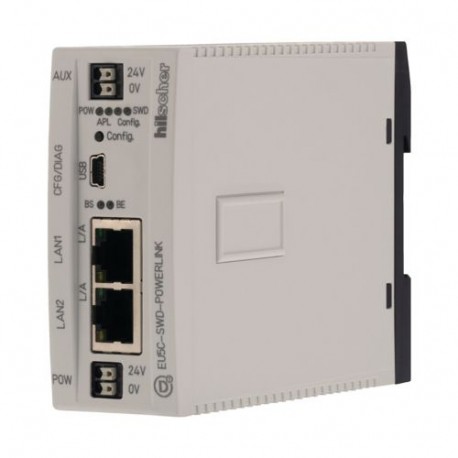

EU5C-SWD-POWERLINK 171797 EATON ELECTRIC Gateway, SWD, 99 SmartWire-DT cards on Powerlink View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EU5C-SWD-POWERLINK 171797 EATON ELECTRIC Gateway, SWD, 99 SmartWire-DT cards on Powerlink

EU5C-SWD-POWERLINK

171797

EATON-MOELLER

Gateway, SWD, 99 SmartWire-DT cards on Powerlink

EU5C-SWD-POWERLINK

More details


PLC's > Fieldbus, decentr. periphery - communication module

Smartwire Darwin

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $578.38
Unit price: $578.38

Quantity Price
1+$578.38
2+$537.58
3+$535.80
4+$535.80
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


EL-Nummer (Norway)
4560875
Gateway, SWD, 99 SmartWire-DT cards on Powerlink
SmartWire-DT gateway for connection to the field bus and for supply of the SmartWire-DT card and switchgears. A connection to Powerlink can be established using the integrated 100 Mbit/s Ethernet switch and a slave configuration. Up to 99 SmartWire-DT modules can be connected. The gateway features a separate USB diagnostic interface.

Delivery program

Product range
SmartWire-DT coordinators
Function
For connection to a POWERLINK field bus as a slave
Short Description
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
Description
SmartWire-DT gateway for connecting up to 99 SmartWire-DT modules to an Industrial Ethernet network and for powering the SmartWire-DT modules and switchgear.
A connection to Powerlink can be established using the integrated 100 Mbit/s Ethernet hub as slave.
The gateway features a separate USB diagnostic interface (mini USB).
Accessories
Connection of up to 99 SWD slaves

Technical data

General
Standards
IEC/EN 61131-2
ApprovalsApprovals
UL
CSA
Dimensions (W x H x D)
35 x 90 x 124 mm
Weight
0.16 kg
Mounting
Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Mounting position
As required
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 61131-2:2008)Constant amplitude 3,5 mm
5 - 9 Hz
Vibrations (IEC/EN 61131-2:2008)Constant acceleration 1 g
9 - 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
9 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
1 m
Electromagnetic compatibility (EMC)
Overvoltage category
II
Pollution degree
2
Electrostatic discharge (IEC/EN 61131-2:2008)Air discharge (Level 3)
8 kV
Electrostatic discharge (IEC/EN 61131-2:2008)Contact discharge (Level 2)
4 kV
Electromagnetic fields (IEC/EN 61131-2:2008)80 - 1000 MHz
10 V/m
Electromagnetic fields (IEC/EN 61131-2:2008)1.4 - 2 GHz
3 V/m
Electromagnetic fields (IEC/EN 61131-2:2008)2 - 2.7 GHz
1 V/m
Radio interference suppression
EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)Supply cable
2 kV
Burst (IEC/EN 61131-2:2008, Level 3)Fieldbus cable
1 kV
Burst (IEC/EN 61131-2:2008, Level 3)SmartWire-DT cable
1 kV
Surge (IEC/EN 61131-2:2008, Level 1)Supply cable
0.5 kV
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
10 V
Operating conditions
Climatic environmental conditionsClimatic proofing
In accordance with IEC 60068-2
Climatic environmental conditionsAmbient temperatureOperation [ϑ]
-25 - +55 °C
Climatic environmental conditionsAmbient temperatureStorage [ϑ]
-40 - +70 °C
Atmospheric conditionsRelative humidity, non-condensing (IEC/EN 60068-2-30)
5 - 95 %
Atmospheric conditionsAir pressure (operation)
795 - 1080 hPa
Supply voltage UAux
Rated operational voltage [UAux]
24 V DC (-15/+20%) V
Residual ripple on the input voltage
≦ 5 %
Protection against polarity reversal
Yes
Max. current [Imax]
3 A
Short-circuit rating
no, external fuse FAZ Z3
Power loss [P]
Normally 1 W
Potential isolation
No
Rated operating voltage of 24-V-DC slaves
typ. UAux- 0.2 V
Supply voltage UPow
Supply voltage [UPow]
24 V DC (-15/+20%) V
Input voltage ripple
≦ 5 %
Protection against polarity reversal
yes
Rated current [I]
0.7 A
Overload proof
yes
Inrush current and duration
44 A/2 ms A
Heat dissipation at 24 V DC
4.4 W
Potential isolation between UPowand 15 V SmartWire-DT supply voltage
No
Bridging voltage dips
10 ms
Repetition rate
1 s
Status indication
yes LED
SmartWire-DT supply voltage
Rated operating voltage [Ue]
14,5 ± 3 % V
max. current [Imax]
0.7 A
Short-circuit rating
Yes
Connection supply voltages
Connection type
Push in terminals
Solid
0.2 - 1.5 mm2
Flexible with ferrule
0.25 - 1.5 mm2
UL/CSA solid or stranded
24 - 16 AWG
SmartWire-DT network
Station type
SmartWire-DT master
Number of SmartWire-DT slaves
99
Baud Rates
125
250 kBd
Status indication
SmartWire-DT master LED: red/green
Configurations LED: red/green
Connections
Plug, 8-pole
Plug connector
Blade terminal SWD4-8MF2
Fieldbus interface
Module type
Powerlink slave
Protocol
Powerlink V2
Input data, max.
800 Byte
Output data, max.
642 Byte
Baud RateBaud Rates
100 MBit/s
Station address
IP
Address allocation
viaPowerlink
Status display interface [Multi colour]
APL, BS, BE, L/A LED
Connection design for field bus
Two RJ45 (two-channel hub)
Potential isolation
Yes
Technical data in sheet catalogue
Other technical data (sheet catalogue)
Notes
If contactors with a total current consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used.
If SWD modules with a total current consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used.

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
1 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
Degree of Protection
IP20
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 7.0

PLC's (EG000024) / Fieldbus, decentr. periphery - communication module (EC001604)
Electric engineering, automation, process control engineering / Control / Field bus, decentralized peripheral / Field bus, decentralized peripheral - communications module ([email protected] [BAA073013])
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
20.4 - 28.8 V
Voltage type of supply voltage
DC
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
With potential separation
No
Fieldbus connection over separate bus coupler possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front build in possible
No
Rack-assembly possible
No
Suitable for safety functions
Yes
Category according to EN 954-1
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
35 mm
Height
90 mm
Depth
127 mm

Approvals

UL File No.
E221530
UL Category Control No.
NRQA
CSA File No.
UL report applies to both US and Canada
North America Certification
UL listed, CSA certified
Specially designed for North America
No
Current Limiting Circuit-Breaker
No

Dimensions

2723DIM-1
SmartWire-DT Gateways

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON PRODUCT CATALOGUE SMART WIRE DT.pdf 23 Mbytes
EU5C-SWD-POWERLINK EU5C-SWD-POWERLINK 171797 EN_171797.pdf 206 Kbytes EU5C-SWD-POWERLINK EU5C-SWD-POWERLINK 171797 EN_171797.pdf
