Agrandir l'image

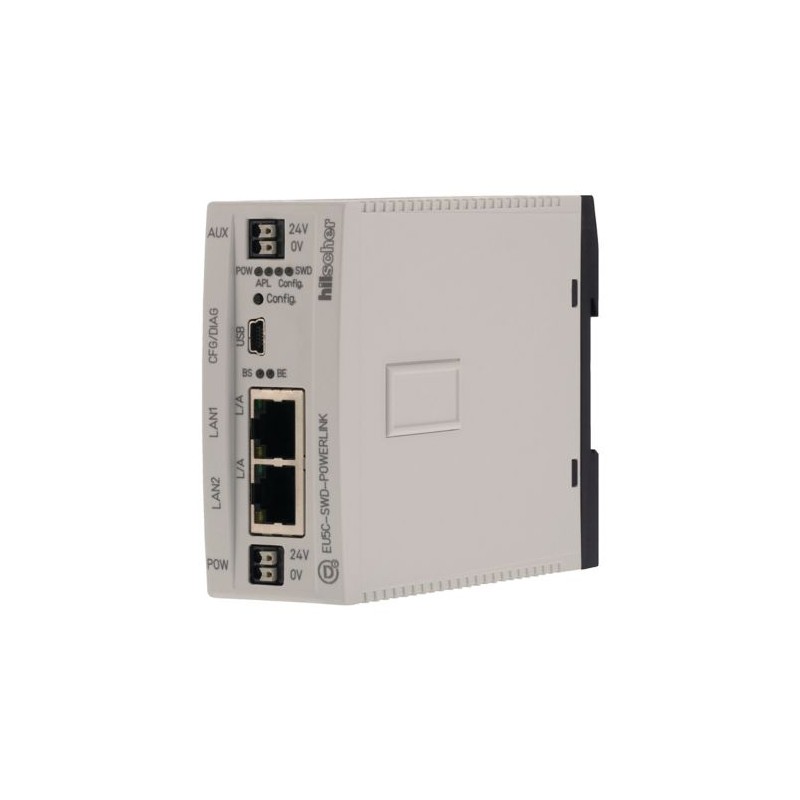

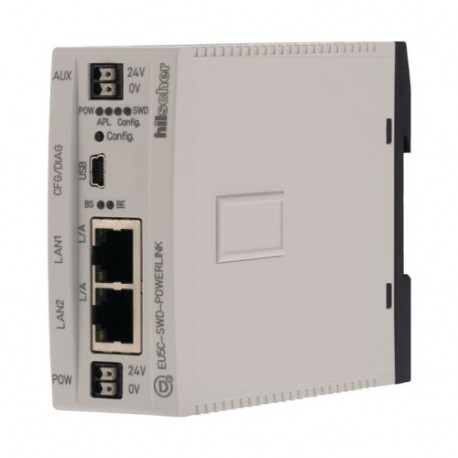

EU5C-SWD-POWERLINK 171797 Y7-171797 EATON ELECTRIC Passerelle SWD, 99 participants SWD à Powerlink
EU5C-SWD-POWERLINK
171797
Y7-171797
EATON-MOELLER
Passerelle SWD, 99 participants SWD à Powerlink
EU5C-SWD-POWERLINK
Eaton EU5C Gateway, SWD, 99 SmartWire-DT cards on Powerlink
Passerelle SmartWire-DT pour la connexion au bus de terrain et pour l’alimentation de la carte SmartWire-DT et des appareillages de commutation. Une connexion à Powerlink peut être établie à l’aide du commutateur Ethernet 100 Mbit/s intégré et d’une configuration esclave. Jusqu’à 99 modules SmartWire-DT peuvent être connectés. La passerelle dispose d’une interface de diagnostic USB distincte.
Commande industrielle API > Bus de terrain, périphérie déc. - module de communication
Smartwire Darwin
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton EU5C Communication module
Catalog Number
171797
Model Code
EU5C-SWD-POWERLINK
EAN
4015081683314
Product Length/Depth
127 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.16 kg
Certifications
UL Category Control No.: NRQA
IEC/EN 61131-2
UL report applies to both US and Canada
UL
CSA
UL File No.: E221530
IEC/EN 61131-2
UL report applies to both US and Canada
UL
CSA
UL File No.: E221530
Features & Functions
Features
Potential isolation (Fieldbus Interface)
Overload proof
Overload proof
Functions
For connection to a POWERLINK field bus as a slave
Operating mode
Address allocation via Powerlink
General
Degree of protection
IP20
Mounting method
Wall mounting/direct mounting
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Rail mounting possible
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
Suitable for
Safety functions
Terminal capacity
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
1 g, 9 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 9 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
In accordance with IEC 60068-2
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Supply cable, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Voltage dips
≤ 10 ms, Bridging voltage dips
Electrical rating
Inrush current
44 A (for 2 ms)
Power loss
Normally 1 W
Rated control supply voltage
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UPOW, -15 %/+20 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
Typically UAUX -0.2 V (for 24 V DC slaves)
Typically UAUX -0.2 V (for 24 V DC slaves)
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Supply current - max
0.7 mA
Supply voltage at AC, 50 Hz - min
0 V
Supply voltage at AC, 50 Hz - max
0 V
Supply voltage at DC - min
20.4 V
Supply voltage at DC - max
28.8 V
Communication
Connection
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
SmartWire-DT gateway for connecting up to 99 SmartWire-DT modules to an Industrial Ethernet network and for powering the SmartWire-DT modules and switchgear.
SmartWire-DT blade terminal SWD4-8MF2
A connection to Powerlink can be established using the integrated 100 Mbit/s Ethernet hub as slave.
SmartWire-DT gateway for connecting up to 99 SmartWire-DT modules to an Industrial Ethernet network and for powering the SmartWire-DT modules and switchgear.
SmartWire-DT blade terminal SWD4-8MF2
A connection to Powerlink can be established using the integrated 100 Mbit/s Ethernet hub as slave.
Connection type
2 x RJ45 (two-channel hub), Field bus interface
SWD: Plug, 8-pole
Push in terminals, Supply voltage
SWD: Plug, 8-pole
Push in terminals, Supply voltage
Data transfer rate
250 kBit/s, SmartWire-DT
100 MBit/s, Fieldbus interface
800 Byte, Fieldbus interface, Input data, max.
125 kBit/s, SmartWire-DT
542 Byte, Fieldbus interface, Output data, max.
100 MBit/s, Fieldbus interface
800 Byte, Fieldbus interface, Input data, max.
125 kBit/s, SmartWire-DT
542 Byte, Fieldbus interface, Output data, max.
Interfaces
Module type: Powerlink slave
Status display fieldbus interface for APL, SF, BF, LINK, RX/TX with Multi colour LED
Status display fieldbus interface for APL, SF, BF, LINK, RX/TX with Multi colour LED
LED indicator
Status indication of Supply voltage: LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Number of modules
99 (SmartWire-DT)
Protocol
Other bus systems
Powerlink V2
Powerlink V2
Station
IP, Station address, Fieldbus interface
SmartWire-DT master, SmartWire-DT network
SmartWire-DT master, SmartWire-DT network
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between UPow and 15 V SmartWire-DT supply voltage: no
Supply voltage UAUX: no
Supply voltage UAUX: no
Protection against polarity reversal
Yes, for supply voltage (Siemens MPI optional)
Yes
Yes
Design verification
Equipment heat dissipation, current-dependent Pvid
4.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Tension d'alimentation CA 50 Hz (EF007532) | 0 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 0 V |
| Tension d'alimentation CC (EF007534) | 20.4 V |
| Type de tension d'alimentation (EF002991) | CC |
| nombre d'interfaces HW CAN (EF017563) | 0 |
| Nombre d'interfaces matérielles Industrial Ethernet (EF003020) | 2 |
| Nombre d'interfaces matérielles PROFINET (EF006932) | 0 |
| Nombre d'interfaces matérielles en série RS-232 (EF003021) | 0 |
| Nombre d'interfaces matérielles en série RS-422 (EF003022) | 0 |
| Nombre d'interfaces matérielles en série RS-485 (EF003023) | 0 |
| Nombre d'interfaces matérielles en série TTY (EF003024) | 0 |
| Nombre d'interfaces matérielles USB (EF003025) | 1 |
| Nombre d'interfaces matérielles parallèles (EF003026) | 0 |
| Nombre d'interfaces matérielles Wireless (EF006933) | 0 |
| Nombre d'autres interfaces matérielles (EF003027) | 0 |
| supporte le protocole pour EtherCAT (EF017564) | Non |
| Protocole pris en charge pour TCP/IP (EF003050) | Non |
| Protocole pris en charge pour PROFIBUS (EF003052) | Non |
| Protocole pris en charge pour CAN (EF003053) | Non |
| Protocole pris en charge pour INTERBUS (EF003054) | Non |
| Protocole pris en charge pour ASI (EF003051) | Non |
| Protocole pris en charge pour KNX (EF003055) | Non |
| Protocole pris en charge pour Modbus (EF003057) | Non |
| Protocole pris en charge pour Data-Highway (EF003058) | Non |
| Protocole pris en charge pour DeviceNet (EF003059) | Non |
| Protocole pris en charge pour SUCONET (EF003060) | Non |
| Protocole pris en charge pour LON (EF003017) | Non |
| Protocole pris en charge pour SERCOS (EF006657) | Non |
| Protocole pris en charge pour PROFINET IO (EF007525) | Non |
| Protocole pris en charge pour PROFINET CBA (EF007524) | Non |
| Protocole pris en charge pour Foundation Fieldbus (EF007522) | Non |
| Protocole pris en charge pour EtherNet/IP (EF007521) | Non |
| Protocole pris en charge pour AS-Interface Safety at Work (EF007519) | Non |
| Protocole pris en charge pour DeviceNet Safety (EF007520) | Non |
| Protocole pris en charge pour INTERBUS-Safety (EF006662) | Non |
| Protocole pris en charge pour PROFIsafe (EF007526) | Non |
| Protocole pris en charge pour SafetyBUS p (EF007527) | Non |
| Protocole pris en charge pour autres systèmes de bus (EF003062) | Oui |
| Standard radio Bluetooth (EF007178) | Non |
| Standard radio WLAN 802.11 (EF007179) | Non |
| Standard radio GPRS (EF008523) | Non |
| Standard radio eGPRS (EF009703) | Non |
| Standard radio GSM (EF008524) | Non |
| Standard radio LTE (EF009709) | Non |
| Standard radio UMTS (EF008525) | Non |
| Maître IO-Link (EF007298) | Non |
| Composants système (EF004118) | Oui |
| Classe de protection (IP) (EF005474) | IP20 |
| Avec séparation de potentiel (EF003272) | Non |
| Raccordement au bus de champ possible sur coupleur de bus séparé (EF004002) | Non |
| Montage possible sur barres profilées (EF003972) | Oui |
| Montage mural/direct possible (EF007020) | Oui |
| Encastrement frontal possible (EF007016) | Non |
| Montage sur rack possible (EF007018) | Non |
| Adapté aux fonctions de sécurité (EF001597) | Oui |
| SIL conformément à IEC 61508 (EF009889) | Sans |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Sans |
| Matériel associé (Ex ia) (EF004141) | Non |
| Matériel associé (Ex ib) (EF004142) | Non |
| Catégorie de protection contre les explosions pour le gaz (EF003997) | Sans |
| Catégorie de protection contre les explosions pour la poussière (EF003998) | Sans |
| certifié pour zone à risque UL classe I (EF017622) | Non |
| certifié pour zone à risque UL classe II (EF017625) | Non |
| certifié pour zone à risque UL classe III (EF017627) | Non |
| certifié pour zone à risque UL division 1 (EF017628) | Non |
| certifié pour zone à risque UL division 2 (EF017629) | Non |
| certifié pour zone à risque UL groupe A (acétylène) (EF017632) | Non |
| certifié pour zone à risque UL groupe B (hydrogène) (EF017633) | Non |
| certifié pour zone à risque UL groupe C (éthylène) (EF017635) | Non |
| certifié pour zone à risque UL groupe D (propane) (EF017636) | Non |
| certifié pour zone à risque UL groupe E (poussière de métal) (EF017637) | Non |
| certifié pour zone à risque UL groupe F (poussière carbonée) (EF017638) | Non |
| certifié pour zone à risque UL groupe G (poussière non conductrice) (EF017639) | Non |
| Largeur (EF000008) | 35 mm |
| Hauteur (EF000040) | 90 mm |
| Profondeur (EF000049) | 127 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf | 26 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EU5C-SWD-POWERLINK Y7-171797 171797 FR_171797.pdf | 206 Kbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
