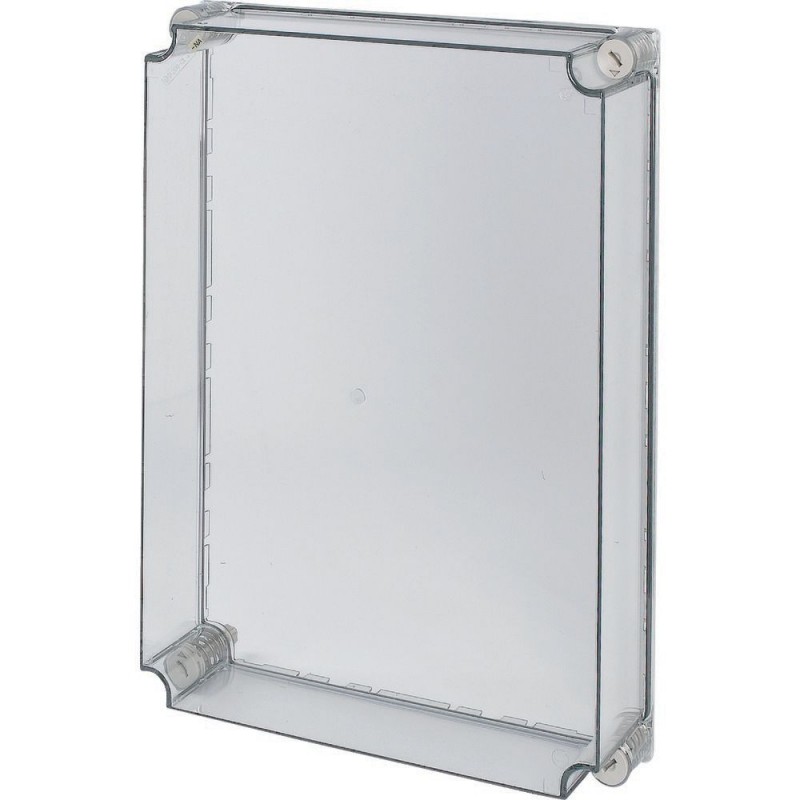

D200-CI45-NA 264022 EATON ELECTRIC Ci Cap, Clear, UL508A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

D200-CI45-NA 264022 EATON ELECTRIC Ci Cap, Clear, UL508A

D200-CI45-NA

264022

Y7-264022

EATON-MOELLER

Ci Cap, Clear, UL508A

Cover transparent smoky, UL approved, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, sealable cover fasteners, continuous foamed gasket, mounting depth with mounting plate=200mm, can be used for CI bases E, X and V, lock mechanism type: actuation with tools (not accessible to unqualified personnel)

More details


Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)

Insulating Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $197.50
Unit price: $197.50
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xEffect Ci Enclosures Switch- & Controlgear Enclosure
Catalog Number
264022
Model Code
D200-CI45-NA
EAN
4015082640224
Product Length/Depth
105 mm
Product Height
500 mm
Product Width
375 mm
Product Weight
1.45 kg
Compliances
RoHS conform

Product specifications

Special features
Sealable cover fasteners
Type
Accessory/spare part type
Enclosure cover NA
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
30 kg per enclosure with support frame and lifting aid met; assembled and secured as per the latest applicable instruction leaflet.
10.2.6 Mechanical impact
IK10
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP65, with base unit
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 1000 V AC
10.9.3 Impulse withstand voltage
8 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Surface finishing
Untreated
Used with
U-CI45...
Basic enclosure
Enclosure cover for North America
xEnergy Safety Ci
Color
Other
Degree of protection
IP65
Unit type
Modular system
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
26 W
Heat diss. ambient 35°C delta T: 20°C wall mount middle encl. top (IEC 60890)
24 W
Heat diss. ambient 35°C delta T:20°C wall mount starting encl. top (IEC 60890)
25 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
52 W
Heat diss. ambient 35°C delta T: 35°C wall mount middle encl. top (IEC 60890)
47 W
Heat diss. ambient 35°C delta T:35°C wall mount starting encl. top (IEC 60890)
50 W
Mounting depth
200 mm
RAL-number
0
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Cover/door type
Transparent, smoky gray
Material
Plastic
Suitable for
Outdoor set-up
Functions
Basic enclosure

ETIM for 264022 Cabinets and enclosures (EC000744)
Feature Name Feature Value
Suitable for roof planking (EF009584) No
Suitable for bottom planking (EF009585) No
Width (EF000008) 375 mm
Height (EF000040) 500 mm
Depth (EF000049) 105 mm
Suitable for enclosure building width (EF000326) 0 mm
Suitable for enclosure building depth (EF000327) 0 mm
Material (EF002169) Plastic
Surface finishing (EF006569) Untreated
Colour (EF000007) Other
RAL-number (EF000116) 0
With de-aeration (EF001161) No
Suitable for outdoor set-up (EF005774) Yes
With cable entry (EF000325) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
