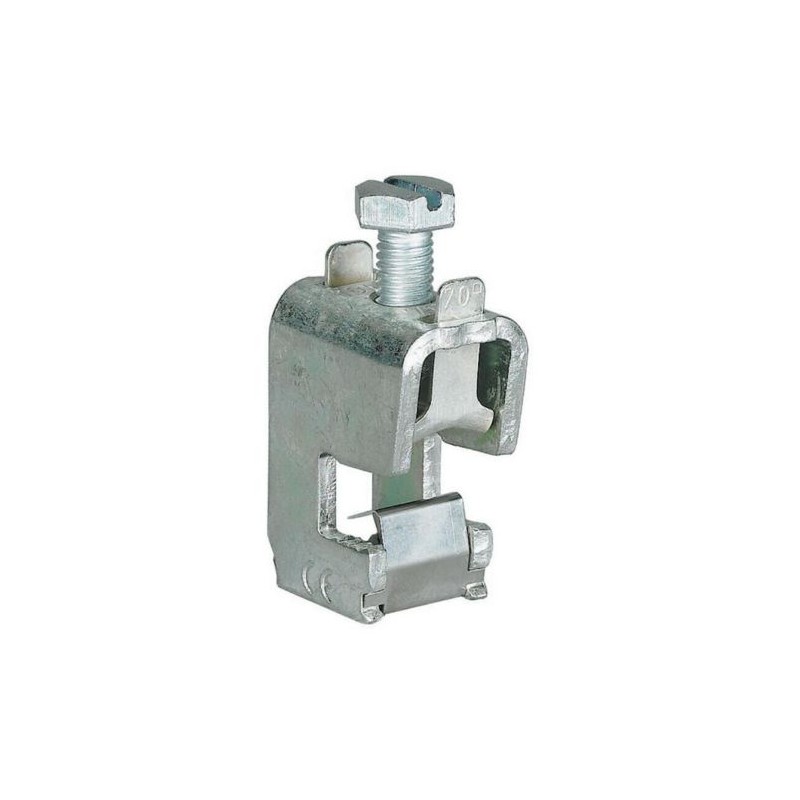

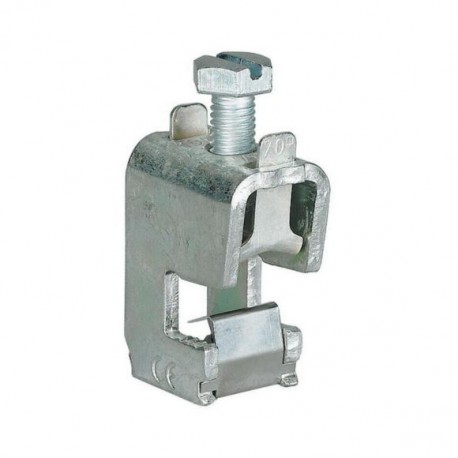

AKU70/10 107193 Y7-107193 EATON ELECTRIC Conductor connection terminal 16-70mm², 10 mm
AKU70/10
107193
Y7-107193
EATON-MOELLER
25
Conductor connection terminal 16-70mm², 10 mm
AKU70/10
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Conductor connection terminal 16-70mm², 10 mm
Universal conductor connection terminal, 16-70mm² AWG 4-AWG 2/0., directly terminated, 2x(3x9x0.8) or 6x9x0.8, 400A, can be used for all 10mm thick flat busbars, width=20.5mm, termination space WxH=14x14mm, with integrated retaining spring, with open terminal chamber and captive fixing screw, can be used for SASY60i, SASY185i
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
RoHS conform
UL508A
CE marking
CSA (Class No. 3211-37)
UL (Category Control Number NMTR2, NMTR8)
IEC 60439-1
North America (UL listed, CSA certified)
CSA-C22.2 No. 14
CSA (File No. 236217)
Delivery program
Technical data - electrical
Technical data - mechanical
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
3 segments of 9 mm x 0.8 mm (2x)
AWG 4 - AWG 2/0
9 mm x 0.8 mm (6x)
Additional information
Connections
Current limiting circuit breaker, refer to approbation report
Strip conductor connection
Flat rail
Sector conductor connection
Feeder circuits
Connection
60 mm system
185 mm system
Compact system
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 10 mm |
| Busbar width (EF007219) | 0 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 20.5 mm |
| Max. conductor cross section (EF004969) | 70 mm² |
| Max. rated operation current Ie (EF007356) | 400 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | Yes |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKU70/10 Y7-107193 107193 EN_107193.pdf | 109 Kbytes |
|
