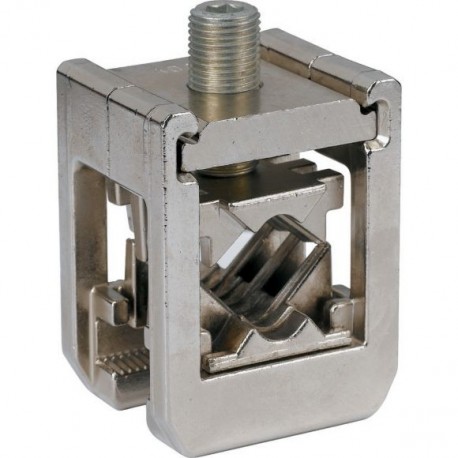

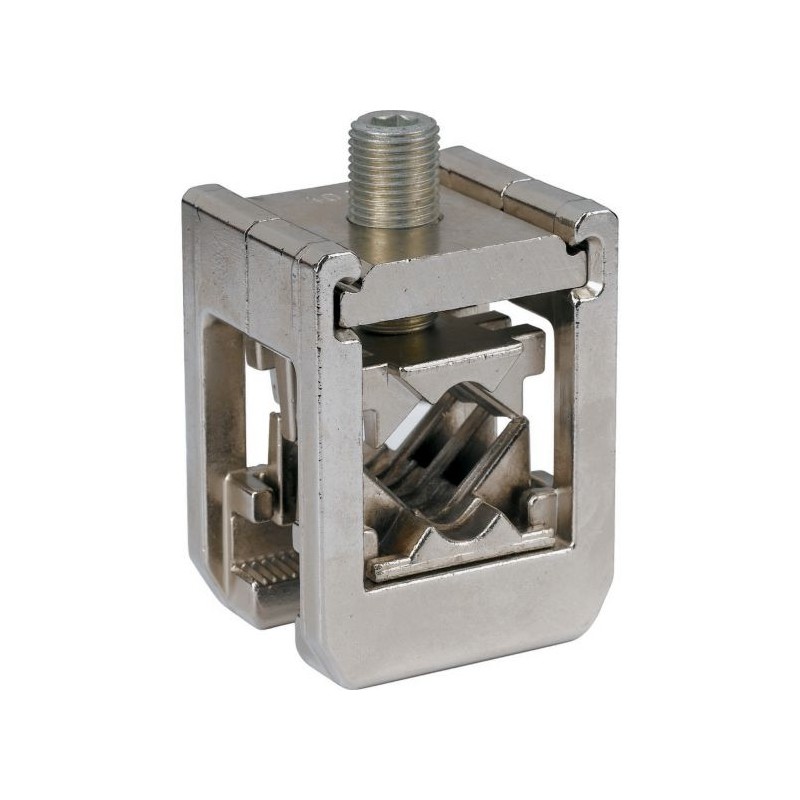

AK300 138363 EATON ELECTRIC Connection terminal 95-300 mm²
AK300
138363
EATON-MOELLER
Connection terminal 95-300 mm²
AK300
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Connection terminal 95-300 mm²
Connection terminal SASY60i, width 48mm, Ie=630A, terminal capacities=95-300mm², for 30x10 busbars and double T profile, triple T profile, contact occurs via cable block
General specifications
Product name
Eaton xEffect SASY 60i busbar terminal
Part no.
AK300
EAN
4015081351435
Product Length/Depth
100 millimetre
Product height
60 millimetre
Product width
48 millimetre
Product weight
0.857 kilogram
Compliances
RoHS conform
Product Tradename
xEffect SASY 60i
Product Type
Busbar system component
Product Sub Type
Busbar terminal
Delivery program
Type
60 mm system
Connection
Connection
Technical Data - Electrical
Rated operation current (Ie)
630 A
Rated operational current
630 A
Rated operational current (Ie) - max
630 A
Technical Data - Mechanical
Busbar thickness - min
10 mm
Busbar thickness - max
10 mm
Busbar width - min
30 mm
Busbar width - max
30 mm
Terminal capacity (conductor)
95 mm² - 300 mm²
Conductor cross section - max
300 mm²
Width clamp
48 mm
Additional information
Functions
Connections
Terminal
Terminal
Special features
Cable block is used to connect the conductor to the busbar
Suitable for
Strip conductor connection
Round conductor connection
T-rail
Round conductor connection
T-rail
Used with
Triple T profile
30 mm x 10 mm rail
Double T profile
Connection
60 mm system
30 mm x 10 mm rail
Double T profile
Connection
60 mm system
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Busbar terminal (EC000001)
Electric engineering, automation, process control engineering / Terminal block systems and system components / Terminal block systems / Busbar terminal (ecl@ss13-27-25-01-16 [BAA025018])
Busbar thickness
10 - 10 mm
Busbar width
30 - 30 mm
Suitable for
T-rail
Width clamp
48 mm
Max. conductor cross section
300 mm²
Max. rated operation current Ie
630 A
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
No
Suitable for strip conductor connection
Yes
