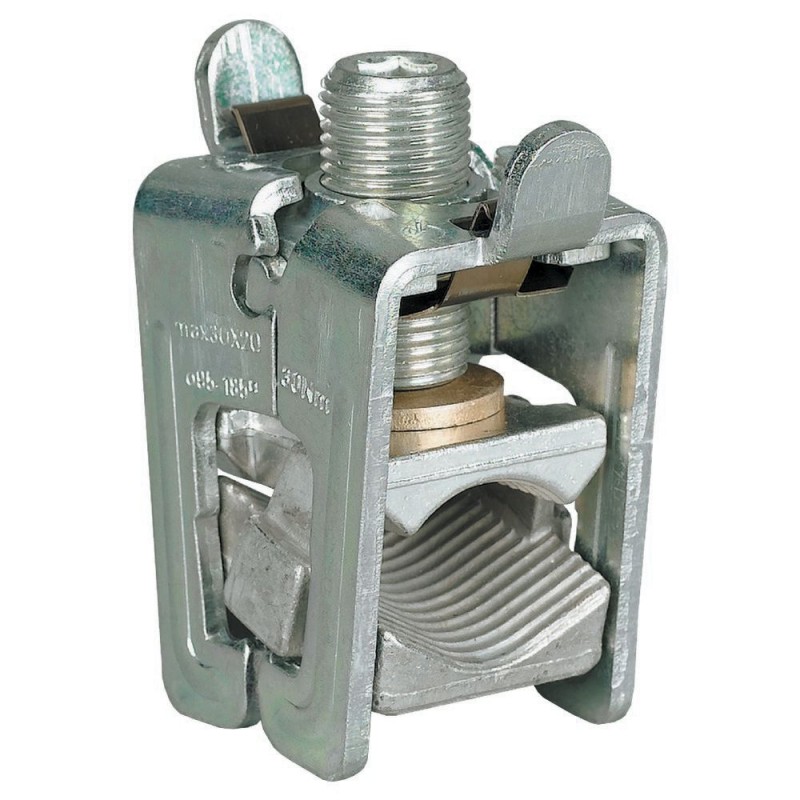

AKS185 107195 Y7-107195 EATON ELECTRIC Clamp terminal 95-185mm², for 20x5-30x10
AKS185
107195
Y7-107195
EATON-MOELLER
Clamp terminal 95-185mm², for 20x5-30x10
AKS185
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Clamp terminal 95-185mm², for 20x5-30x10
Clamp terminal, for SASY60i and SASY185i for busbars 20x5/10 up to 30x10mm, double t and triple t profile-profile-, width=38mm, Ie=500A, terminal capacities=95-185mm²
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
RoHS conform
CE marking
North America (UL listed, CSA certified)
UL (File No. E307559)
CSA-C22.2 No. 14
UL (Category Control Number NMTR2, NMTR8)
UL508A
CSA (File No. 236217)
IEC 60439-1
Delivery program
Technical data - electrical
Technical data - mechanical
Feeder circuits
AWG3/0 - MCM350
Additional information
Connections
Clamp terminal
- Termination to busbars without drilling
- A cable block is used to connect the conductor to the busbar
Round conductor connection
Flat rail
Strip conductor connection
20 mm x 5/10 mm rail
25 mm x 5/10 mm rail
Double T profile
Feeder circuits
Connection
185 mm system
60 mm system
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 5 mm |
| Busbar width (EF007219) | 20 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 38 mm |
| Max. conductor cross section (EF004969) | 185 mm² |
| Max. rated operation current Ie (EF007356) | 500 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | Yes |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKS185 Y7-107195 107195 EN_107195.pdf | 109 Kbytes |
|
