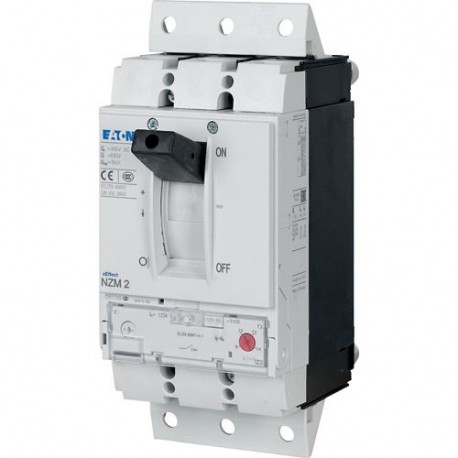

NZMB2-S200-SVE 113201 EATON ELECTRIC Circuit-breaker, 3p, 200A, plug-in module
NZMB2-S200-SVE
113201
EATON-MOELLER
Circuit-breaker, 3p, 200A, plug-in module
NZMB2-S200-SVE
Low-voltage industrial components > Motor protection circuit-breaker
Circuit Breakers NZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Circuit breaker, power, 3p, 200A, adapter
The circuit breakers of the power series NZM..-S to cover with four sizes compact all types of application and are suitable for the market of the IEC. The assembly is flexible due to the functional groups modular. With the release of the magnetic short circuit in the combination with thermal relay with magnetic release without auxiliary heat. The circuit breakers of power to meet all the requirements of the category of use AC‐3.
Delivery program
Assortment
automatic switch of power
Protection function
protection against short circuits
Standard/Approval
IEC
Installation technique
system semiestraibile connector
Technical release
Trip unit circuit breaker
Size
NZM2
Description
Motor protection in conjunction with overload relay
with magnetic release
without trip unit thermal-lr
IEC/EN 60947-4-1, IEC/EN 60947-2
The circuit breakers of power to meet all the requirements of the category of use AC--3.
with magnetic release
without trip unit thermal-lr
IEC/EN 60947-4-1, IEC/EN 60947-2
The circuit breakers of power to meet all the requirements of the category of use AC--3.
Number of poles
3-pole
Standard equipment
screw connection
Rated current = rated uninterrupted current [In= Theu]
200 To
Power
400/415 V, 50 Hz [Icu]
25 kA
Field calibration
Magnetic release
[Therm]without delay
[Thethe= Thenx ...]
[Therm]without delay[Thethe= Thenx ...] 8 - 12,5
Rated power use AC-3 at 400 V 50/60 Hz
380 V 400 V [P]
110 kW
The nominal current of use AC-3 at 400 V 50/60 Hz
400 V [Iand]
max. 196
Technical data
General
Compliance with the standards
IEC/EN 60947, VDE 0660
Protection against accidental contact
protection against contact with the fingers and back of hand per VDE 0106 part 100
Suitability to the climates
Moist heat, constant according to IEC 60068-2-78
The humid heat, cyclic according to IEC 60068-2-30
The humid heat, cyclic according to IEC 60068-2-30
Ambient temperatureStorage ambient temperature
-40 - +70 °C
Ambient temperatureOperation
-25 - +70 °C
Shock resistance (half-wave, 10 ms) according to IEC 60068-2-27
20 (shock duration 20 ms) g
Slicer safe according to EN 61140between auxiliary contacts and main contacts
500 V AC
Slicer safe according to EN 61140between auxiliary contacts
300 V AC
Weight
2.345 kg
Mounting position
| Vertical and rotated 90° in each direction | |
 | with the module of differential protection XFI: |
| - NZM1, N1, NZM2, N2: vertical and rotated 90° in each direction | |
| with a removable device: | |
| - NZM1, N1, NZM2, N2: vertical, 90° right/left | |
| with a removable device: | |
| - NZM3, N3: vertical, 90° right/left | |
| - NZM4, N4: vertical | |
| with remote control: | |
| - NZM2, N(S)2, NZM3, N(S)3, NZM4, N(S)4: vertical and rotated 90° in each direction | |
The sense of power
To pleasure
Degree of protectionUnit
in the field of control elements: IP20 (degree of protection base)
Degree of protectionHousing
frame: IP40
with a handle for control of the delayed door lock: IP66
with a handle for control of the delayed door lock: IP66
Degree of protectionConnection terminals
Terminal tunnel: IP10
Phase separator and clamp strips: IP00
Phase separator and clamp strips: IP00
Other technical data (digital catalogue)
Circuit breakers power
Rated current = rated uninterrupted current [In= Theu]
200 To
Rated voltage impulse withstand [Uimp]Main circuit
8000 V
Rated voltage impulse withstand [Uimp]Auxiliary contacts
6000 V
Rated voltage [Uand]
440 V AC
Overvoltage category/pollution degree
III/3
Rated insulation voltage [Uthe]
690 V
Use in networks with no grounding
≦ 440 V
Power
Nominal power of closing under short-circuit [Thecm]240 V [Icm]
63 kA
Nominal power of closing under short-circuit [Thecm]400/415 V [Icm]
53 kA
Nominal power of closing under short-circuit [Thecm]440 V 50/60 Hz [Icm]
53 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Icu to IEC/EN 60947 switching sequence OtCO [Icu]240 V, 50/60 Hz [Icu]
30 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Icu to IEC/EN 60947 switching sequence OtCO [Icu]400/415 V, 50/60 Hz [Icu]
25 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Icu to IEC/EN 60947 switching sequence OtCO [Icu]440 V, 50/60 Hz [Icu]
25 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Ics to IEC/EN 60947 switching sequence OtCOtCO [Ics]240 V, 50/60 Hz [Ics]
30 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Ics to IEC/EN 60947 switching sequence OtCOtCO [Ics]400/415 V, 50/60 Hz [Ics]
25 kA
Rated breaking capacity under short-circuit Thecn[Thecn]Ics to IEC/EN 60947 switching sequence OtCOtCO [Ics]440 V 50/60 Hz [Ics]
18.5 kA
Rated breaking capacity under short-circuit Thecn[Thecn]
Maximum safety, when the short-circuit current expected at the point of installation exceeds the breaking capacity of the circuit breaker of power.
Use category according to IEC/EN 60947-2
To
Duration, mechanical (shutter max. 50% on the part of the release (A/U) [Operations]
Twenty thousand
Duration, electricalAC-1400 V 50/60 Hz [Operations]
Ten thousand
Duration, electricalAC-1415 V 50/60 Hz [Operations]
Seven thousand five hundred
Duration, electricalMax. switching frequency [op/h]
120 man/h
The total time of interruption short circuit
< 10 ms
Connection cross-sections
Standard equipment
screw connection
Necessary accessories
NZM2-XSVS
Optional accessories
Terminals cloak
Terminals tunnel
Attacks rear
Terminals tunnel
Attacks rear
Cable circular CuClamp coatHard
1 x (10 - 16)
2 x (6 - 16) mmTwo
2 x (6 - 16) mmTwo
Cable circular CuClamp coatFlexible
1 x (25 - 185)
2 x (25 - 70) mmTwo
2 x (25 - 70) mmTwo
Cable circular CuTerminal tunnelHard
1 x 16 mmTwo
Cable circular CuTerminal tunnelflexible1 hole
1 x (25-185) mmTwo
Cable circular CuConnection bolt and connection backdirectly on the switchhard
1 x (10 - 16)
2 x (6 - 16) mmTwo
2 x (6 - 16) mmTwo
Cable circular CuConnection bolt and connection backdirectly on the switchflexible
1 x (25 - 185)
2 x (25 - 70) mmTwo
2 x (25 - 70) mmTwo
Conductor circularTerminal tunnelhard
1 x 16 mmTwo
Conductor circularTerminal tunnelflexibleflexible
1 x (25 - 185) mmTwo
The foil strip of copper (number of slats x width x thickness slat)Clamp coat [min.]
2 x 9 x 0.8 mm
The foil strip of copper (number of slats x width x thickness slat)Clamp cloak [max.]
10 x 16 x 0.8
(2x) 8 x 15.5 x 0.8 mm
(2x) 8 x 15.5 x 0.8 mm
The foil strip of copper (number of slats x width x thickness slat)Connection bolt and connection backStrip copper, perforated [min.]
2 x 16 x 0.8 mm
The foil strip of copper (number of slats x width x thickness slat)Connection bolt and connection backStrip copper, perforated [max.]
10 x 24 x 0,8 mm
The copper bar (width x depth) [mm]Connection bolt and connection backLink to bolt
M8
The copper bar (width x depth) [mm]Connection bolt and connection backdirectly on the switch [min.]
16 x 5 mm
The copper bar (width x depth) [mm]Connection bolt and connection backdirectly on the switch [max.]
24 x 8 mm
Control cables
1 x (0.75 - 2.5)
2 x (0.75 - 1.5) mmTwo
2 x (0.75 - 1.5) mmTwo
Design checks according to IEC/EN 61439
Technical data for design checks
The nominal current of use for the data related to dissipation [Then]
200 To
Dissipation of the device, as a function of the current [Pvid]
48 W
Temperature service environment min.
-25 °C
Ambient temperature max service.
+70 °C
Design checks per IEC/EN 61439
10.2 the Suitability of materials and components10.2.2 Resistance to corrosion
The requirements of the product standard are met.
10.2 the Suitability of materials and components10.2.3.1 Resistance of the housing to the heat
The requirements of the product standard are met.
10.2 the Suitability of materials and components10.2.3.2 Resistance of insulating materials to heat levels normal
The requirements of the product standard are met.
10.2 the Suitability of materials and components10.2.3.3 Resistance of insulating materials to heat levels extraordinary
The requirements of the product standard are met.
10.2 the Suitability of materials and components10.2.4 Resistance to UV irradiation
The requirements of the product standard are met.
10.2 the Suitability of materials and components10.2.5 Lifting
Not applicable since the entire electrical panel should be evaluated.
10.2 the Suitability of materials and components10.2.6 Proof
Not applicable since the entire electrical panel should be evaluated.
10.2 the Suitability of materials and components10.2.7 Labeling
The requirements of the product standard are met.
10.3 Degree of protection provided by enclosures
Not applicable since the entire electrical panel should be evaluated.
10.4 Pathways of dispersion-air and surface
The requirements of the product standard are met.
10.5 Protection against electric shock
Not applicable since the entire electrical panel should be evaluated.
10.6 flush Mounting of appliances
Not applicable since the entire electrical panel should be evaluated.
10.7 internal Circuits and connections
Is the responsibility of the manufacturer of the electrical panel.
10.8 Connections for conductors introduced from the outside
Is the responsibility of the manufacturer of the electrical panel.
10.9 insulation properties10.9.2 dielectric strength at network frequency
Is the responsibility of the manufacturer of the electrical panel.
10.9 insulation properties10.9.3 Voltage impulse
Is the responsibility of the manufacturer of the electrical panel.
10.9 insulation properties10.9.4 Testing of enclosures of insulating material
Is the responsibility of the manufacturer of the electrical panel.
10.10 Heating
The calculation of the overheating is the responsibility of the manufacturer of the electrical panel. Eaton provides data on the dissipation of the equipment.
10.11 Resistance to short circuit
Is the responsibility of the manufacturer of the electrical panel. Respect the default values of the equipment.
10.12 EMC
Is the responsibility of the manufacturer of the electrical panel. Respect the default values of the equipment.
10.13 mechanical Function
For the unit requirements are met while respecting the directions of the assembly instructions (THE).
Technical data according to ETIM 7.0
electrical equipment in low-voltage (EG000017) / circuit breaker for motor protection (EC000074)
The Technique Of Ar., Elem., Energy, Tech. Comm., Network And Proc. Pipeline / Switch Technology, Low Voltage / Power circuit Breakers (Ns, < 1 Hp) / power Switches for the combinations d¦starter ([email protected] [AGZ529016])
adjustment range of trip unit overload
0 - 0 At
the range of adjustment of the activator short-circuit non-time delay
8 - 12.5 A
with thermal protection
no
sensitive to phase failure
no
intervention technique
magnetic
operating voltage nominal
440 - 440 V
nominal continuous current Iu
200 To
operating power rated for AC-3, 230 V
55 kW
operating power rated for AC-3, 400 V
110 kW
type of connection circuit in the main electrical
screw fitting
the execution of the drive element
rocker
the type of construction of the device
recessed luminaire, technique with insert plug-in
with auxiliary switch integrated
no
with undervoltage release built -
no
number of poles
Three
the current limit nominal switching to the short circuit at 400 V, AC
25 kA
degree of protection (IP)
IP20
height
245 mm
width
105 mm
depth
180 mm
Characteristic curves
Feature
Feature
Feature
Feature
Size
① The Space-off, the minimum safety distance compared to other surfaces
② The minimum safety Distance with respect to neighbouring parts
② The minimum safety Distance with respect to neighbouring parts
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NZMB2-S200-SVE 113201 EN_113201.pdf | 754 Kbytes |
 |
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
