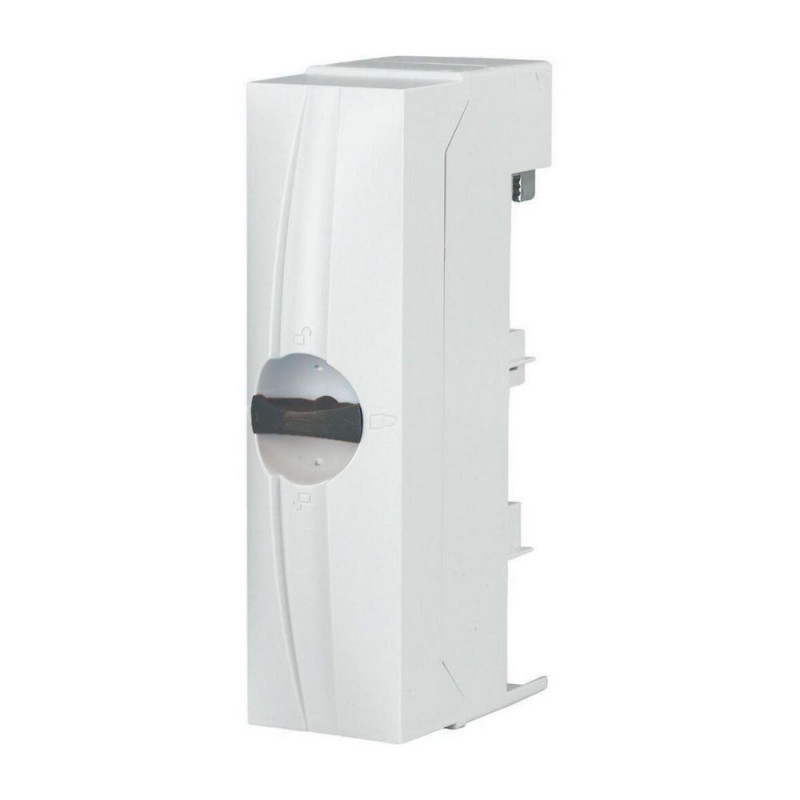

BBA-TP3/100-C 138373 EATON ELECTRIC Connection terminal board 3, 35-150mm2, 90mm, compact View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BBA-TP3/100-C 138373 EATON ELECTRIC Connection terminal board 3, 35-150mm2, 90mm, compact

BBA-TP3/100-C

138373

EATON-MOELLER

Connection terminal board 3, 35-150mm2, 90mm, compact

BBA-TP3/100-C

More details


Low-voltage industrial components > Busbar terminal

Motor-protective circuit-breakers PKZ (Accessories)

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $54.08
Unit price: $54.08

Quantity Price
1+$54.08
2+$47.94
3+$44.10
4+$41.93
5+$41.47
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Connection terminal board 3, 35-150mm2, 90mm, compact
Connection terminal board, 60-mm compact system, poles=3, screw terminals, terminal capacity=35 up to 150mm² or AWG2-MCM300 or 10x20x1 or 10x16x0.8, Ie=480A, width=90mm, can be used for rail 12x5/10, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, the terminal can be removed for the connection of uncut conductors, passing through is not possible

Delivery program

Product range
Compact system
Basic function
Connections
Subrange
Clamp plate
Description
The terminal can be removed for the connection of uncut conductors
A cable block is used to connect the conductor to the busbar
Width
90 mm
Pole
3
Rated operational current [Ie]
480 A
conductor
35 - 150 mm2
AWG 2 - MCM 300.


▤ 10 x 20 x 1
For use with
12 x 5/10
Notes

⊙ round conductor, solid

Flexible, round conductor with correctly crimped ferrule

Round conductor, stranded

Section conductor, solid

Sector conductor, stranded

▤ CU band

▃ CU busbar

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Busbar terminal (EC000001)
Electric engineering, automation, process control engineering / Electrical installation, device / Terminal (not overhead line) / Switch board ([email protected] [BAA025013])
Busbar thickness
5 - 10 mm
Busbar width
12 - 30 mm
Suitable for
Flat rail
Width clamp
90 mm
Max. conductor cross section
150 mm²
Max. rated operation current Ie
480 A
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
Yes
Suitable for strip conductor connection
Yes

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 34 Mbytes
BBA-TP3/100-C 138373 EN_138373.pdf 127 Kbytes BBA-TP3/100-C 138373 EN_138373.pdf
