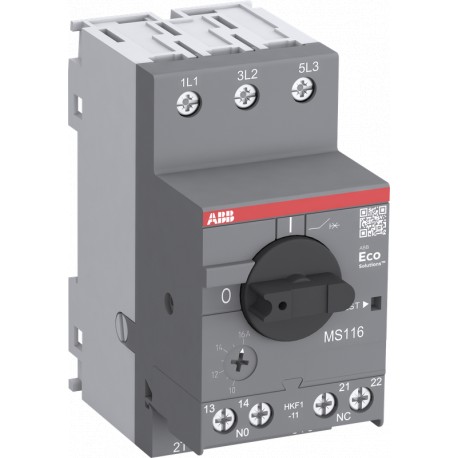

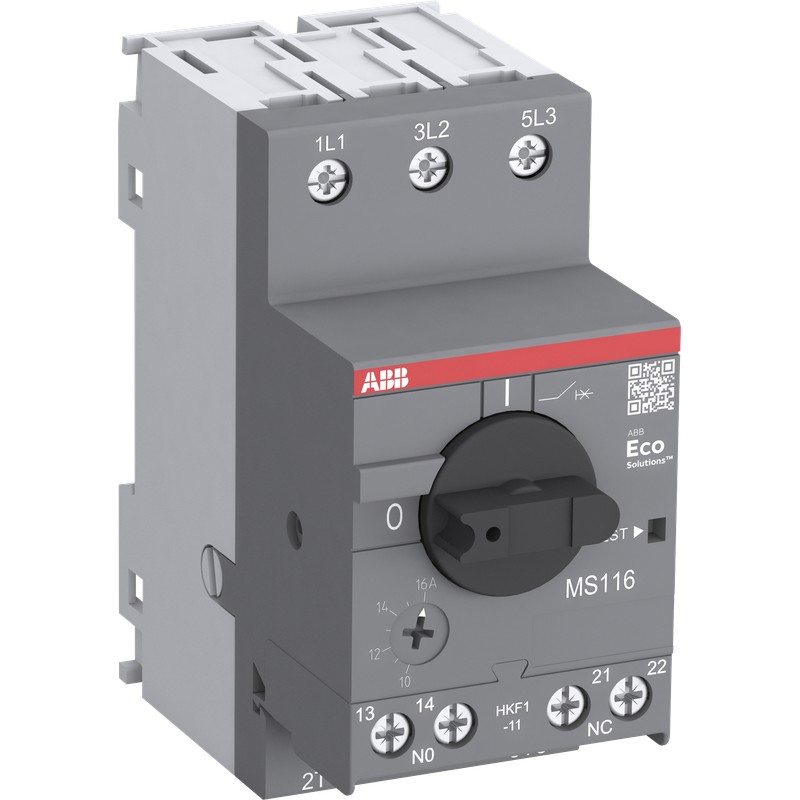

1SAM250005R1007 ABB MS116-2.5-HKF1-11 Manual Motor Starter

1SAM250005R1007

ABB

MS116-2.5-HKF1-11 Manual Motor Starter

The MS116-2.5-HKF1-11 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 2.5 A and a pre-assembled front mounted auxiliary contact HKF1-11. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

More details


Electronic motor protection relays

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


More info

▲


b'

\n

General Information

\n
\n
\n\nExtended Product Type:\n\n\n\n
MS116-2.5-HKF1-11
\n\n
\n
\n\nProduct ID:\n\n\n\n
1SAM250005R1007
\n\n
\n
\n\nEAN:\n\n\n\n
4013614394775
\n\n
\n
\n\nCatalog Description:\n\n\n\n
MS116-2.5-HKF1-11 Manual Motor Starter
\n\n
\n
\n\nLong Description:\n\n\n\n
The MS116-2.5-HKF1-11 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 2.5 A and a pre-assembled front mounted auxiliary contact HKF1-11. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
\n\n
\n
\n\n
\n \n
\n
\n\n

Ordering

\n\n
\n
\n\nMinimum Order Quantity:\n\n\n\n
1 piece
\n\n
\n
\n\nCustoms Tariff Number:\n\n\n\n
85362010
\n\n
\n
\n\n\n
\n
\n\n

Popular Downloads

\n\n
\n
\n\nData Sheet, Technical Information:\n\n\n\n2CDC131025D0201\n
\n
\n\nData Sheet, Technical Information (Part 3):\n\n\n\n1SAM200507F0001
\n1SAM200507F0002
\n1SAM200507F0003
\n1SAM200508F0001
\n1SAM200508F0002
\n1SAM200508F0003\n
\n
\n\nInstructions and Manuals:\n\n\n\n2CDC131011M6802\n
\n
\n\nInstructions and Manuals (Part 2):\n\n\n\n2CDC131060M0202\n
\n
\n\nTime-Current Characteristic Curve:\n\n\n\n1SAM200505F0107\n
\n
\n\nDimension Diagram:\n\n\n\n1SAM200422F0001\n
\n
\n\n\n
\n
\n\n

Dimensions

\n\n
\n
\n\nProduct Net Width:\n\n\n\n
45 mm
\n\n
\n
\n\nProduct Net Height:\n\n\n\n
90 mm
\n\n
\n
\n\nProduct Net Depth / Length:\n\n\n\n
85.6 mm
\n\n
\n
\n\nProduct Net Weight:\n\n\n\n
0.28 kg
\n\n
\n
\n\n\n
\n
\n\n

Technical

\n\n
\n
\n\nRated Service Short-Circuit Breaking Capacity (Ics):\n\n\n\n
(230 V AC) 50 kA
\n
\n
(400 V AC) 50 kA
\n
\n
(440 V AC) 10 kA
\n
\n
(500 V AC) 10 kA
\n
\n
(690 V AC) 5 kA
\n\n
\n
\n\nRated Ultimate Short-Circuit Breaking Capacity (Icu):\n\n\n\n
(230 V AC) 75 kA
\n
\n
(400 V AC) 75 kA
\n
\n
(440 V AC) 30 kA
\n
\n
(500 V AC) 20 kA
\n
\n
(690 V AC) 10 kA
\n\n
\n
\n\nRated Instantaneous Short-Circuit Current Setting (Ii):\n\n\n\n
31.3 A
\n\n
\n
\n\nSetting Range:\n\n\n\n
1.6 ... 2.5 A
\n\n
\n
\n\nRated Operational Power AC-3 (Pe):\n\n\n\n
(400 V) Three Phase 0.75 kW
\n\n
\n
\n\nRated Operational Power AC-3e (Pe):\n\n\n\n
(400 V) Three Phase 0.75 kW
\n\n
\n
\n\nRated Operational Voltage:\n\n\n\n
Main Circuit 690 V AC
\n\n
\n
\n\nRated Operational Current (Ie):\n\n\n\n
2.5 A
\n\n
\n
\n\nRated Operational Current AC-3 (Ie):\n\n\n\n
2.5 A
\n\n
\n
\n\nRated Operational Current AC-3e (Ie):\n\n\n\n
2.5 A
\n\n
\n
\n\nRated Frequency (f):\n\n\n\n
Main Circuit 50 Hz
\n
\n
Main Circuit 60 Hz
\n\n
\n
\n\nRated Impulse Withstand Voltage (Uimp):\n\n\n\n
Main Circuit 6 kV
\n\n
\n
\n\nRated Insulation Voltage (Ui):\n\n\n\n
690 V
\n\n
\n
\n\nPower Loss:\n\n\n\n
at Rated Operating Conditions per Pole 0.7 W
\n\n
\n
\n\nNumber of Poles:\n\n\n\n
3
\n\n
\n
\n\nMounted Auxiliary Contacts:\n\n\n\n
1 NO, 1 NC
\n\n
\n
\n\nConventional Free-air Thermal Current (Ith):\n\n\n\n
Main Circuit 2.5 A
\n\n
\n
\n\nDegree of Protection:\n\n\n\n
Housing IP20
\n
\n
Main Circuit Terminals IP10
\n\n
\n
\n\nPollution Degree:\n\n\n\n
3
\n\n
\n
\n\nElectrical Durability:\n\n\n\n
100000 cycle
\n\n
\n
\n\nMechanical Durability:\n\n\n\n
100000 cycle
\n\n
\n
\n\nTerminal Type:\n\n\n\n
Screw Terminals
\n\n
\n
\n\nConnecting Capacity Main Circuit:\n\n\n\n
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
\n
\n
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
\n
\n
Flexible 1/2x 0.75 ... 2.5 mm²
\n
\n
Rigid 1/2x 1 ... 4 mm²
\n\n
\n
\n\nConnecting Capacity Auxiliary Circuit:\n\n\n\n
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
\n
\n
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
\n
\n
Flexible 1/2x 0.75 ... 1.5 mm²
\n
\n
Rigid 1/2x 1 ... 1.5 mm²
\n\n
\n
\n\nTightening Torque:\n\n\n\n
Auxiliary Circuit 0.8 ... 1.2 N·m
\n
\n
Main Circuit 0.8 ... 1.2 N·m
\n\n
\n
\n\nWire Stripping Length:\n\n\n\n
Auxiliary Circuit 8 mm
\n
\n
Main Circuit 9 mm
\n\n
\n
\n\nRecommended Screw Driver:\n\n\n\n
Pozidriv 2
\n\n
\n
\n\nMounting Position:\n\n\n\n
Position 1 to 6
\n\n
\n
\n\nMounting on DIN Rail:\n\n\n\n
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
\n
\n
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
\n\n
\n
\n\nMinimum Mounting Distance:\n\n\n\n
Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
\n
\n
Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
\n
\n
Electrical Conductive Board, Vertical 75 mm
\n
\n
Other Device Same Type, Horizontal 0 mm
\n
\n
Other Device Same Type, Vertical 150 mm
\n\n
\n
\n\nActuator Type:\n\n\n\n
Rotary Handle
\n\n
\n
\n\nContact Position Indication:\n\n\n\n
ON / OFF
\n\n
\n
\n\nStandards:\n\n\n\n
IEC/EN 60947-1
\n
\n
IEC/EN 60947-2
\n
\n
IEC/EN 60947-4-1
\n
\n
IEC/EN 60947-5-1
\n
\n
UL 60947-1
\n
\n
UL 60947-4-1
\n\n
\n
\n\n\n
\n
\n\n

Technical UL/CSA

\n\n
\n
\n\nShort-Circuit Current Rating (SCCR):\n\n\n\n
Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 30 kA
\n
\n
Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kA
\n
\n
Any UL Listed Fuses or Circuit-Breakers,  Motor Disconnect (480 V AC) 30 kA
\n
\n
Any UL Listed Fuses or Circuit-Breakers,  Motor Disconnect (600 V AC) 5 kA
\n\n
\n
\n\nMaximum Operating Voltage UL/CSA:\n\n\n\n
Auxiliary Circuit 250 V AC/DC
\n
\n
Main Circuit 600 V AC
\n\n
\n
\n\nAmpere Rating UL/CSA:\n\n\n\n
2.5 A
\n\n
\n
\n\nHorsepower Rating UL/CSA:\n\n\n\n
(200 V AC) Three Phase 0.5 Hp
\n
\n
(208 V AC) Three Phase 0.5 Hp
\n
\n
(220 ... 240 V AC) Three Phase 0.5 Hp
\n
\n
(440 ... 480 V AC) Three Phase 1 Hp
\n
\n
(550 ... 600 V AC) Three Phase 1.5 Hp
\n\n
\n
\n\nFull Load Amps Motor Use:\n\n\n\n
(200 V AC) Three Phase 2.5 A
\n
\n
(208 V AC) Three Phase 2.5 A
\n
\n
(220 ... 240 V AC) Three Phase 2.5 A
\n
\n
(440 ... 480 V AC) Three Phase 2.5 A
\n
\n
(550 ... 600 V AC) Three Phase 2.5 A
\n\n
\n
\n\nLocked Rotor Amps:\n\n\n\n
(200 V AC) Three Phase 15 A
\n
\n
(208 V AC) Three Phase 15 A
\n
\n
(220 ... 240 V AC) Three Phase 15 A
\n
\n
(440 ... 480 V AC) Three Phase 15 A
\n
\n
(550 ... 600 V AC) Three Phase 15 A
\n\n
\n
\n\nGeneral Use Rating UL/CSA:\n\n\n\n
(600 V AC) 2.5 A
\n\n
\n
\n\nConnecting Capacity Main Circuit UL/CSA:\n\n\n\n
Flexible 1/2x 16-12 AWG
\n
\n
Stranded 1/2x 16-12 AWG
\n\n
\n
\n\nConnecting Capacity Auxiliary Circuit UL/CSA:\n\n\n\n
Flexible 1/2x 16-14 AWG
\n
\n
Stranded 1/2x 16-14 AWG
\n\n
\n
\n\nTightening Torque UL/CSA:\n\n\n\n
Auxiliary Circuit 7 in·lb
\n
\n
Main Circuit 10 in·lb
\n\n
\n
\n\nContact Rating UL/CSA:\n\n\n\n
B300
\n
\n
R300
\n\n
\n
\n\n\n
\n
\n\n

Environmental

\n\n
\n
\n\nAmbient Air Temperature:\n\n\n\n
Around the Enclosure 0 ... +40 °C
\n
\n
Operation -25 ... +70 °C
\n
\n
Operation Compensated -25 ... +55 °C
\n
\n
Storage -50 ... +80 °C
\n\n
\n
\n\nAmbient Air Temperature Compensation:\n\n\n\n
Yes
\n\n
\n
\n\nMaximum Operating Altitude Permissible:\n\n\n\n
2000 m
\n\n
\n
\n\nResistance to Shock acc. to IEC 60068-2-27:\n\n\n\n
11 ms Pulse 25g
\n\n
\n
\n\nResistance to Vibrations acc. to IEC 60068-2-6:\n\n\n\n
5g / 3 ... 150 Hz
\n\n
\n
\n\nRoHS Status:\n\n\n\n
Following EU Directive 2011/65/EU
\n\n
\n
\n\n\n
\n
\n\n

Certificates and Declarations (Document Number)

\n\n
\n
\n\nABS Certificate:\n\n\n\n1SAA963000-0104\n
\n
\n\nBV Certificate:\n\n\n\n1SAA963000-0204\n
\n
\n\nCB Certificate:\n\n\n\n1SAA963005-2003\n
\n
\n\nCQC Certificate:\n\n\n\nCQC2019010307170287\n
\n
\n\ncUL Certificate:\n\n\n\ncUL_E137861\n
\n
\n\nDeclaration of Conformity - CCC:\n\n\n\n2020980307003381\n
\n
\n\nDeclaration of Conformity - CE:\n\n\n\n1SAD938522-0060\n
\n
\n\nDeclaration of Conformity - UKCA:\n\n\n\n1SAD938500-1060\n
\n
\n\nDNV Certificate:\n\n\n\n1SAA963000-0304\n
\n
\n\nDNV GL Certificate:\n\n\n\n1SAA963000-0304\n
\n
\n\nEAC Certificate:\n\n\n\n1SAA963000-2701\n
\n
\n\nEnvironmental Information:\n\n\n\n1SAC200050H0009\n
\n
\n\nGL Certificate:\n\n\n\n1SAA963000-0402\n
\n
\n\nInstructions and Manuals:\n\n\n\n2CDC131011M6802\n
\n
\n\nInstructions and Manuals (Part 2):\n\n\n\n2CDC131060M0202\n
\n
\n\nKC Certificate:\n\n\n\n1SAA963000-1501\n
\n
\n\nLR Certificate:\n\n\n\n1SAA963000-0505\n
\n
\n\nRMRS Certificate:\n\n\n\n1SAA918000-0704\n
\n
\n\nRoHS Information:\n\n\n\n1SAD938517-0060\n
\n
\n\nTime-Current Characteristic Curve:\n\n\n\n1SAM200505F0107\n
\n
\n\nUL Certificate:\n\n\n\nUL_E137861\n
\n
\n\n\n
\n
\n\n

Container Information

\n\n
\n
\n\nPackage Level 1 Units:\n\n\n\n
box 1 piece
\n\n
\n
\n\nPackage Level 1 Width:\n\n\n\n
92 mm
\n\n
\n
\n\nPackage Level 1 Depth / Length:\n\n\n\n
95 mm
\n\n
\n
\n\nPackage Level 1 Height:\n\n\n\n
50 mm
\n\n
\n
\n\nPackage Level 1 Gross Weight:\n\n\n\n
0.295 kg
\n\n
\n
\n\nPackage Level 1 EAN:\n\n\n\n
4013614394775
\n\n
\n
\n\nPackage Level 2 Units:\n\n\n\n
carton 40 piece
\n\n
\n
\n\nPackage Level 2 Width:\n\n\n\n
280 mm
\n\n
\n
\n\nPackage Level 2 Depth / Length:\n\n\n\n
395 mm
\n\n
\n
\n\nPackage Level 2 Height:\n\n\n\n
210 mm
\n\n
\n
\n\nPackage Level 2 Gross Weight:\n\n\n\n
12.186 kg
\n\n
\n
\n\nPackage Level 2 EAN:\n\n\n\n
4013614408823
\n\n
\n
\n\n\n
\n
\n\n

Classifications

\n\n
\n
\n\nObject Classification Code:\n\n\n\n
F
\n\n
\n
\n\nETIM 4:\n\n\n\n
EC000074 - Motor protective circuit-breaker
\n\n
\n
\n\nETIM 5:\n\n\n\n
EC000074 - Motor protective circuit-breaker
\n\n
\n
\n\nETIM 6:\n\n\n\n
EC000074 - Motor protection circuit-breaker
\n\n
\n
\n\nETIM 7:\n\n\n\n
EC000074 - Motor protection circuit-breaker
\n\n
\n
\n\neClass:\n\n\n\n
V11.0 : 27370401
\n\n
\n
\n\nUNSPSC:\n\n\n\n
39121521
\n\n
\n
\n\nIDEA Granular Category Code (IGCC):\n\n\n\n
4845 >> 3 Pole Motor Circuit Protector Circuit Breakers
\n\n
\n
\n\nE-Number (Finland):\n\n\n\n
3707206
\n\n
\n
\n\n\n
\n\n\n
\n\n\n
\n

Accessories

\n
\n\n\n
\n
\n\n
\n\n
\n\n \n \n
\n \n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MOTOR PROTECTION EN.pdf 132 Mbytes

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
