PLC-OSC-LPE-24DC/48DC/100
2903171
PHOENIX_CONTACT
1

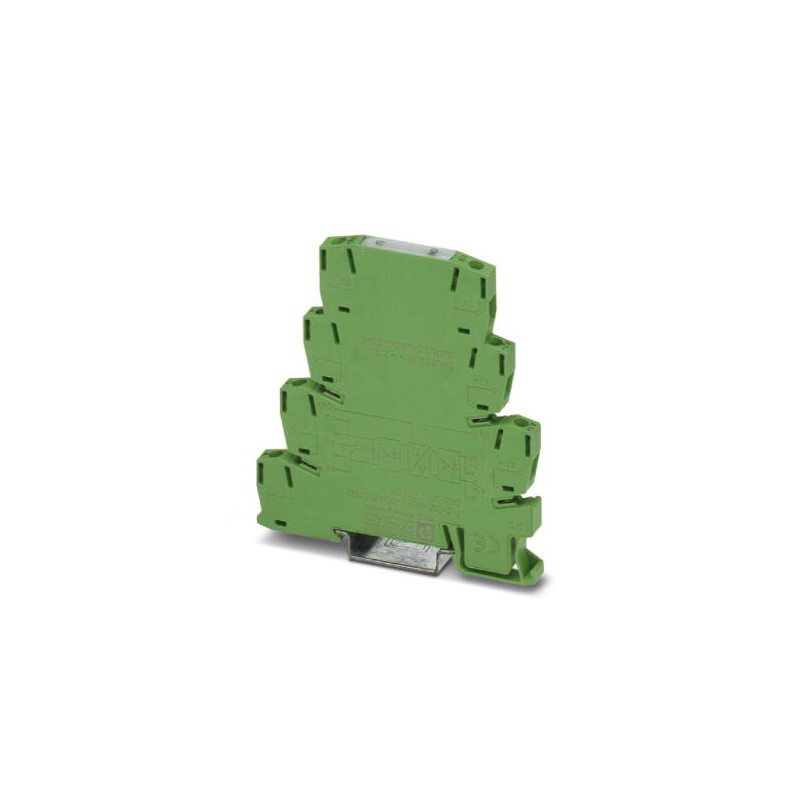

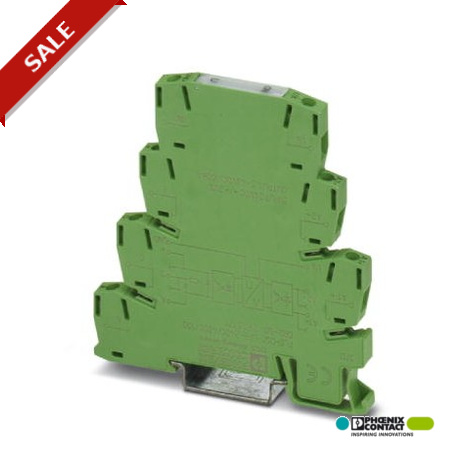

Pulso de alongamento componente de um canal, de entrada: 24 V DC, saída: 3-48 V DC / 100 mA de energia: 24 V DC, parafuso de conexão
Interface
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
DIP switch settings:
Function
DIP A low - no restart when triggered again (default)
DIP A high - restart when triggered again
DIP B low - input pulse time > 2 ms (default)
DIP B high - input pulse time > 100 us
Pulse expansion times
DIP 1 - 10 ms
DIP 2 - 20 ms
DIP 3 - 40 ms
DIP 4 - 80 ms
DIP 5 - 160 ms
DIP 6 - 320 ms
DIP 7 - 640 ms
DIP 8 - 1280 ms
No DIP switch set: no switching function for the output
If the input signal is longer than the selected time, the output is switched off after removal of the input signal.
The settings are applied after a voltage reset of the rated control supply voltage.
Width | 6.2 mm |
---|---|
Height | 80 mm |
Depth | 86 mm |
Ambient temperature (operation) | -25 °C ... 60 °C |
---|---|
Ambient temperature (storage/transport) | -25 °C ... 75 °C |
Degree of protection | IP20 |
"0" signal switching threshold in reference to UC | < 0.4 |
---|---|
"1" signal switching threshold in reference to UC | > 0.8 |
Status display | Yellow LED |
Operating voltage display | Green LED |
Type of protection | Protection against polarity reversal |
Surge protection | |
Surge voltage protection | > 33 V DC |
Output voltage range | 3 V DC ... 48 V DC |
---|---|
Limiting continuous current | 100 mA |
Surge voltage protection | > 54 V DC |
Voltage drop at max. limiting continuous current | < 1 V DC |
Output circuit | 3-conductor, ground-referenced |
Type of protection | Protection against polarity reversal |
Surge protection | |
Free running |
Connection name | Input side |
---|---|
Connection method | Screw connection |
Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Test voltage input/output | 2.5 kVrms(50 Hz, 1 min.) |
---|---|
Mounting position | any |
Assembly instructions | In rows with zero spacing |
Operating mode | 100% operating factor |
Designation | Air clearances and creepage distances between the power circuits |
Standards/regulations | DIN EN 50178 |
Rated insulation voltage | 50 V DC |
Pollution degree | 2 |
Overvoltage category | II |
