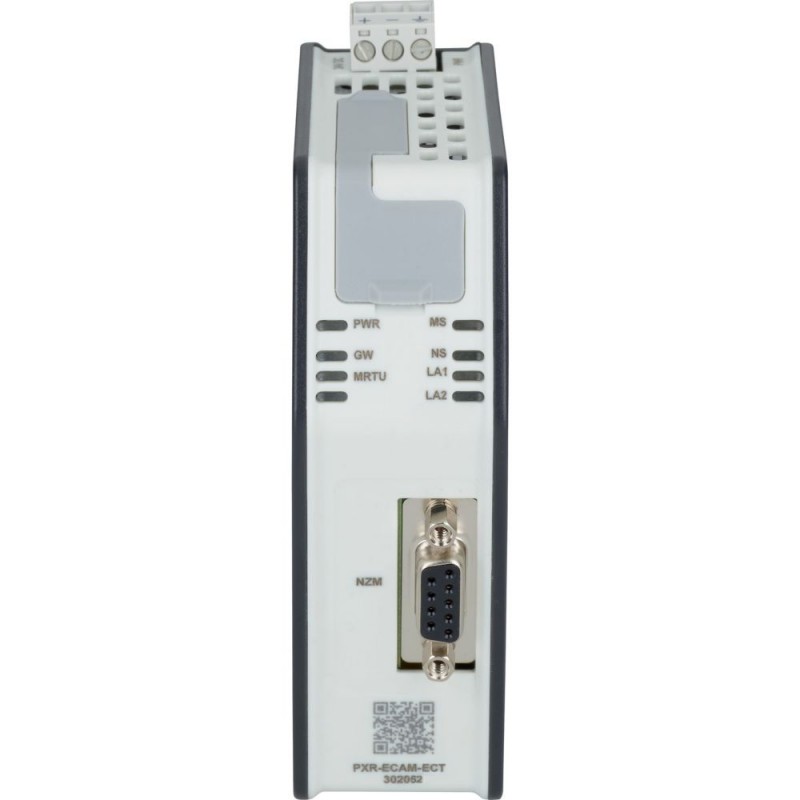

PXR-ECAM-ECT 302052 Y7-302052 EATON ELECTRIC Модуль связи, RJ45, EtherCAT Увеличить
Изображения носят исключительно иллюстративный. Пожалуйста, ознакомьтесь с техническим паспортом.

PXR-ECAM-ECT 302052 Y7-302052 EATON ELECTRIC Модуль связи, RJ45, EtherCAT

PXR-ECAM-ECT

302052

Y7-302052

EATON-MOELLER

Модуль связи, RJ45, EtherCAT

Communication module, RJ45, EtherCAT

Дополнительные принадлежности для автоматических выключателей серии NZM. Предлагает широкий спектр приложений для использования во всем мире. Благодаря модульным функциональным группам монтаж всегда гибок и прост. Примечания: Модули коммуникационных адаптеров - Для подключения к полевой шине. Модуль для НЗМ. Для подключения к EtherCAT. Не может использоваться с электронным спусковым устройством PXR10 NZM-AX.

Подробнее


Низковольтное оборудование > Аксессуары для низковольтного оборудования

Автоматические выключатели в литом корпусе NZM

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER

Общая стоимость: $809.25
Цена за единицу: $809.25
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Best sellers

▲

Описание

▲


Communication module, RJ45, EtherCAT
Optional accessories for NZM series circuit-breakers. Offers a comprehensive portfolio of applications for worldwide use. Thanks to the modular functional groups, installation is always flexible and simple. Notes: Communication adapter modules - For fieldbus connection. Module for NZM. For connection to EtherCAT. Cannot be used with the PXR10 NZM-AX electronic release.

General specifications
Product name
Eaton Moeller series NZM electronic accessory
Part no.
PXR-ECAM-ECT
EAN
9010238154827
Product Length/Depth
123 millimetre
Product height
101 millimetre
Product width
35 millimetre
Product weight
0.155 kilogram
Compliances
RoHS conform
IEC
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Electronic accessory
Delivery program
Type
Communications module
Accessory/spare part type
Communication and measuring function
Communications module
Accessory
Special features
For fieldbus connection to NZM circuit breakers.The module is mounted externally near the circuit breaker.For connection to EtherCAT.Cannot be used with the PXR10 NZM-AX electronic trip.
Frame
NZM…2(3)(4)-MX(VX)(PX)(PMX)…
Used with
NZM2(3)(4)(-4)-VX(MX)(PX)(PMX)
Technical Data - Electrical
Power supply
9 - 30 V DC
Power consumption
4.5 W
Technical Data - Communication
Fieldbus type
RJ45 Ethernet cable Cat6
Interface type (fieldbus)
EtherCAT
Participant type
Slave
Technical Data - Mechanical
Connection type
Pre-wired connection (communication, NZM connection)
With bolt connection
Special features
For fieldbus connection to NZM circuit breakers.The module is mounted externally near the circuit breaker.For connection to EtherCAT.Cannot be used with the PXR10 NZM-AX electronic trip.
Technical Data - Mechanical - Terminals
Terminal capacity (stranded cable)
0.5 mm² - 2.5 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1)
0.5 mm² - 2.5 mm² (1x) at supply connection (insulated ferrule according to DIN46228 / 4)
0.5 mm² - 2.5 mm² (1x)
20 - 14 AWG (1x) at supply connection
Terminal capacity (solid cable)
0.5 mm² - 2.5 mm² (1x)
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
85 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switch technology (accessories) ([email protected] [AKN570013])
Type of accessory/spare part
Communication and measuring function
Accessory
Yes
Spare part
No

ETIM for 302052 Low-voltage industrial controls and switchgear (EC002498)
Характеристика Значение
Type of accessory/spare part (EF000215) Communication and measuring function
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Заглавие: Размер: Тип:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PXR-ECAM-ECT Y7-302052 302052 RU_302052.pdf 109 Kbytes PXR-ECAM-ECT Y7-302052 302052 RU_302052.pdf
