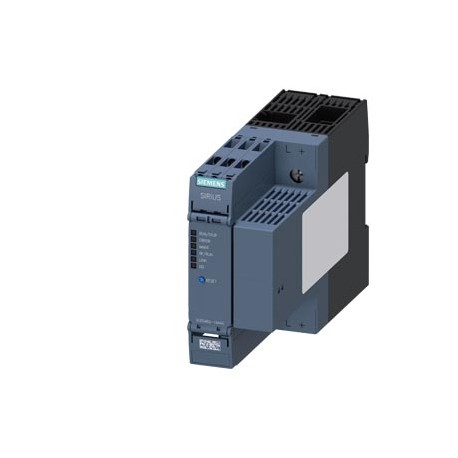

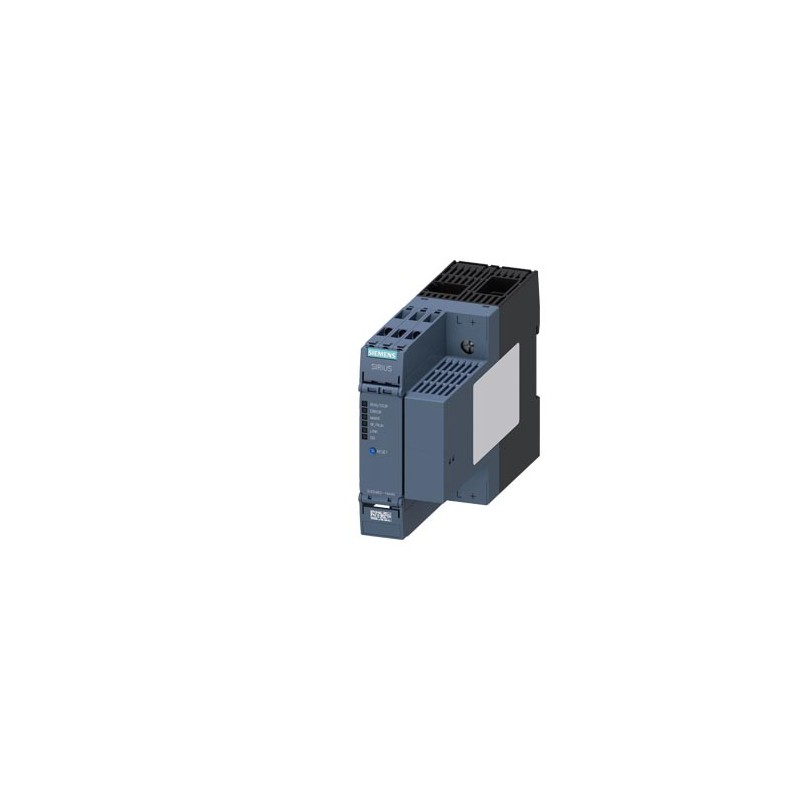

3UG5462-1AA40 SIEMENS DC load monitoring relay for PROFINET, max. 1x63 A DC, max. 800 V Width: 45.0 mm Monit.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

3UG5462-1AA40 SIEMENS DC load monitoring relay for PROFINET, max. 1x63 A DC, max. 800 V Width: 45.0 mm Monit..

3UG5462-1AA40

SIEMENS

DC load monitoring relay for PROFINET, max. 1x63 A DC, max. 800 V Width: 45.0 mm Monitoring for violation of upper and lower limit of current, voltage and power; Energy consumption counter, energy recovery counter, switching cycle counter, operating hours counter, warning and alarm thresholds, automatic or manual reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, automatic reclosing delay 0-999.0 sec Supply voltage: 24 V DC 1 changeover contact, screw terminal

Relé de monitoramento de carga DC para PROFINET, máximo de 1 × 63 A DC, max. 800 V Largura: 45,0 mm Monitoramento de sobrecarga devido ao excesso e padrão de corrente, tensão e potência; medidor de consumo de energia, medidor de regeneração, medidor de manobra, contador de horas de operação, limiares de aviso e atraso de retrocênnio automático ou manual de alarme no início 0-999.0 s, atraso na desconexão 0-999.0 s, atraso na reconexão. Tensão de alimentação 0-999.0: 24 V DC 1 comut, terminais de parafuso

Mais detalhes


CONTROLE E CONTATORES > Relés de função

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

Preço total: $1,385.56
Preço unitário: $1,385.56
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados adicionais

Product
Article Number (Market Facing Number)3UG5462-1AA40
Product DescriptionDC load monitoring relay for PROFINET, max. 1x63 A DC, max. 800 V Width: 45.0 mm Monitoring for violation of upper and lower limit of current, voltage and power; Energy consumption counter, energy recovery counter, switching cycle counter, operating hours counter, warning and alarm thresholds, automatic or manual reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, automatic reclosing delay 0-999.0 sec Supply voltage: 24 V DC 1 changeover contact, screw terminal
Product familyDC load monitoring
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,385 Kg
Packaging Dimension110,00 x 175,00 x 70,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621064727
UPC804766977251
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group4K62
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 31.05.2019
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-08
eClass7.127-37-92-08
eClass827-37-92-08
eClass927-37-16-92
eClass9.127-37-16-92
ETIM5EC002586
ETIM6EC002586
ETIM7EC002586
ETIM8EC002586

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3UG5462-1AA40 3UG5462-1AA40 PT_3UG5462-1AA40.pdf 277 Kbytes 3UG5462-1AA40 3UG5462-1AA40 PT_3UG5462-1AA40.pdf
