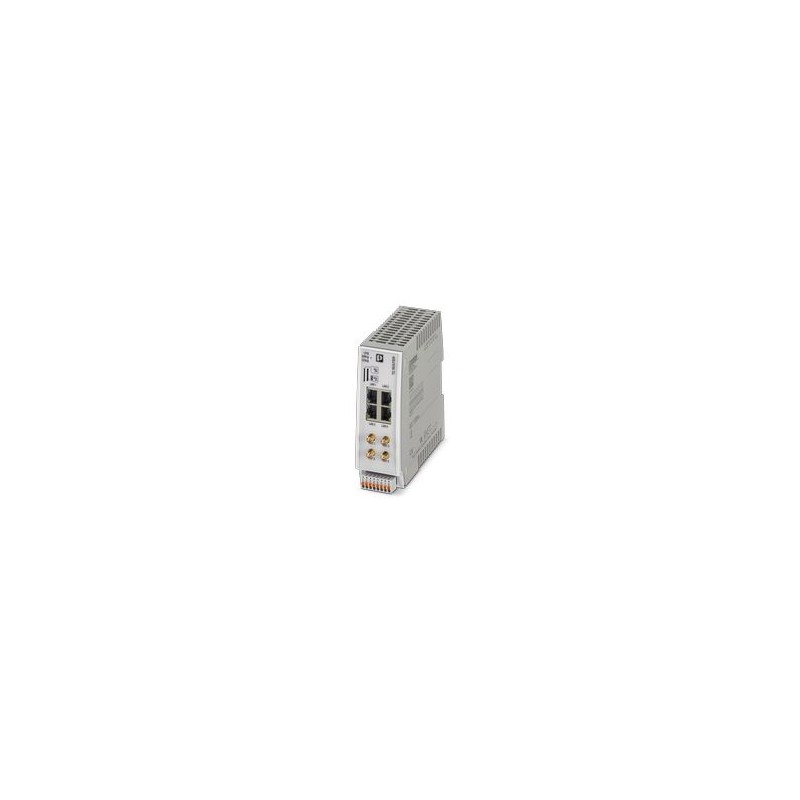

TC ROUTER 5004T-5G EU 1439475 PHOENIX CONTACT Roteador industrial 5G (5G NR, SA/NSA), equipamentos da UE, re..
TC ROUTER 5004T-5G EU
1439475
PHOENIX_CONTACT
Roteador industrial 5G (5G NR, SA/NSA), equipamentos da UE, reserva para 4G (LTE Advanced Pro) e 3G (HSPA+), switch de 4 portas, firewall, NAT, IPsec e OpenVPN, 4 conectores fêmea para antenas SMA F, envio de SMS e e-mail, 4 DI, 2 DO
Roteador
Industrial 5G router (5G NR, SA/NSA), EU device, fallback to 4G (LTE Advanced Pro) and 3G (HSPA+), 4-port switch, firewall, NAT, IPsec and OpenVPN, 4x SMA-F antenna sockets, SMS and email transmission, 4 DI, 2 DO
Material de instalação de redes de telecomunicações DNT / FNT > Roteador de rede
Segurança e Comunicações
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲Dados técnicos
Product properties
| Product type | Cellular router |
| Application | Ethernet |
| MTTF | 378 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 164 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 65 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Electrical properties
| Electrical isolation | Ethernet // PE |
| Maximum power dissipation for nominal condition | 7.2 W |
| Mains type | Cellular communication |
| Supply | |
| Supply voltage range | 10 V DC ... 30 V DC (Via pluggable Push-in terminal block) |
| Typical current consumption | 300 mA (24 V DC) |
| 90 mA (24 V DC, with activated energy-saving mode) | |
| Function | |
| Management | Web-based management |
| SNMPv1/v2/v3 | |
| SSHv2 | |
Input data
| Digital | |
| Description of the input | Digital input |
| Number of inputs | 4 |
| Voltage input signal | 10 V DC ... 30 V DC |
| Switching level "0" signal | < 8 V DC |
| Switching level "1" signal | 10 V DC ... 30 V DC |
Output data
| Signal | |
| Output name | Digital output |
| Number of outputs | 2 |
| Voltage output signal | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Current output signal | ≤ 50 mA (Not short-circuit proof) |
Connection data
| Cross section AWG | (converted acc. to IEC) |
| Supply | |
| Connection method | Push-in spring connection |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Single conductor/terminal point, rigid | 0.14 mm² ... 1.5 mm² |
| Single-wire/terminal point, flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 16 |
| Stripping length | 9 mm |
Interfaces
| Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 | |
| Serial transmission speed | 10/100/1000 Mbps, auto negotiation |
| Connection method | RJ45 jack, shielded |
| No. of channels | 4 |
| Transmission length | 100 m (shielded twisted pair) |
| Protocols supported | TCP/IP, UDP/IP, HTTP(S), (S)FTP |
| VPN: IPsec, OpenVPN, GRE | |
| Auxiliary protocols | ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS |
| Wireless | |
| Interface description | 5G (NR) / 4G (LTE Advanced Pro) / 3G (HSPA+) |
| Operating mode | LTE (CAT16) |
| 5G NR (3GPP R15) | |
| Frequency range | 2100 MHz (5G NR NSA, n1) |
| 1800 MHz (5G NR NSA, n3) | |
| 850 MHz (5G NR NSA, n5) | |
| 2600 MHz (5G NR NSA, n7) | |
| 900 MHz (5G NR NSA, n8) | |
| 800 MHz (5G NR NSA, n20) | |
| 700 MHz (5G NR NSA, n28) | |
| 2600 MHz (5G NR NSA, n38) | |
| 2300 MHz (5G NR NSA, n40) | |
| 2600 MHz (5G NR NSA, n41) | |
| 3700 MHz (5G NR NSA, n77) | |
| 2100 MHz (5G NR SA, n1) | |
| 1800 MHz (5G NR SA, n3) | |
| 850 MHz (5G NR SA, n5) | |
| 2600 MHz (5G NR SA, n7) | |
| 900 MHz (5G NR SA, n8) | |
| 800 MHz (5G NR SA, n20) | |
| 700 MHz (5G NR SA, n28) | |
| 2600 MHz (5G NR SA, n38) | |
| 2300 MHz (5G NR SA, n40) | |
| 2600 MHz (5G NR SA, n41) | |
| 3700 MHz (5G NR SA, n77) | |
| 3500 MHz (5G NR SA, n78) | |
| 2100 MHz (LTE (FDD), B1) | |
| 1800 MHz (LTE (FDD), B3) | |
| 850 MHz (LTE (FDD), B5) | |
| 2600 MHz (LTE (FDD), B7) | |
| 900 MHz (LTE (FDD), B8) | |
| 800 MHz (LTE (FDD), B20) | |
| 700 MHz (LTE (FDD), B28) | |
| 1500 MHz (LTE (FDD), B32) | |
| 2600 MHz (LTE (TDD), B38) | |
| 2300 MHz (LTE (TDD), B40) | |
| 2500 MHz (LTE (TDD), B41) | |
| 3500 MHz (LTE (TDD), B42) | |
| 3700 MHz (LTE (TDD), B43) | |
| 2100 MHz (WCDMA, B1) | |
| 850 MHz (WCDMA, B5) | |
| 900 MHz (WCDMA, B8) | |
| Data rate | 2.1 Gbps (5G NR SA, DL) |
| 900 Mbps (5G NR SA, UL) | |
| 2.5 Gbps (5G NR NSA, DL) | |
| 650 Mbps (5G NR NSA, UL) | |
| 1 Gbps (LTE, DL) | |
| 200 Mbps (LTE, UL) | |
| Number | 4 |
| Connection method | SMA (female) |
| Impedance | 50 Ω |
| SIM Interface | 1.8 volt, 3 volt |
| Micro SIM (3FF) | |
| Country support | Europe |
Dimensions
| Dimensional drawing |  |
| Width | 45 mm |
| Height | 130 mm |
| Depth | 130 mm |
Material specifications
| Material | Polycarbonate |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Approvals
| CE | |
| Certificate | CE-compliant |
EMC data
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with RED Directive 2014/53/EU |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | ± 6 kV (Test Level 3) |
| Discharge in air | ± 8 kV (Test Level 3) |
| Comments | Criterion B |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Field intensity | 10 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | ± 2 kV (Test Level 3) |
| Signal | ± 2 kV (Ethernet) |
| Comments | Criterion B |
| Surge current load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Surge current load (surge) | |
| Input | ± 0.5 kV (symmetrical) |
| ± 1 kV (asymmetrical) | |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Comments | Criterion B |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A |
| Voltage | 10 V |
| Emitted interference | |
| Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Mounting
| Mounting type | DIN rail mounting |
| Assembly instructions | To achieve all frequency combinations and maximum reception quality, always use four antennas. |
| Característica | Valor |
|---|---|
| Protocolo de rádio (EF001007) | Outro |
| Grau de proteção (IP) (EF005474) | IP20 |
