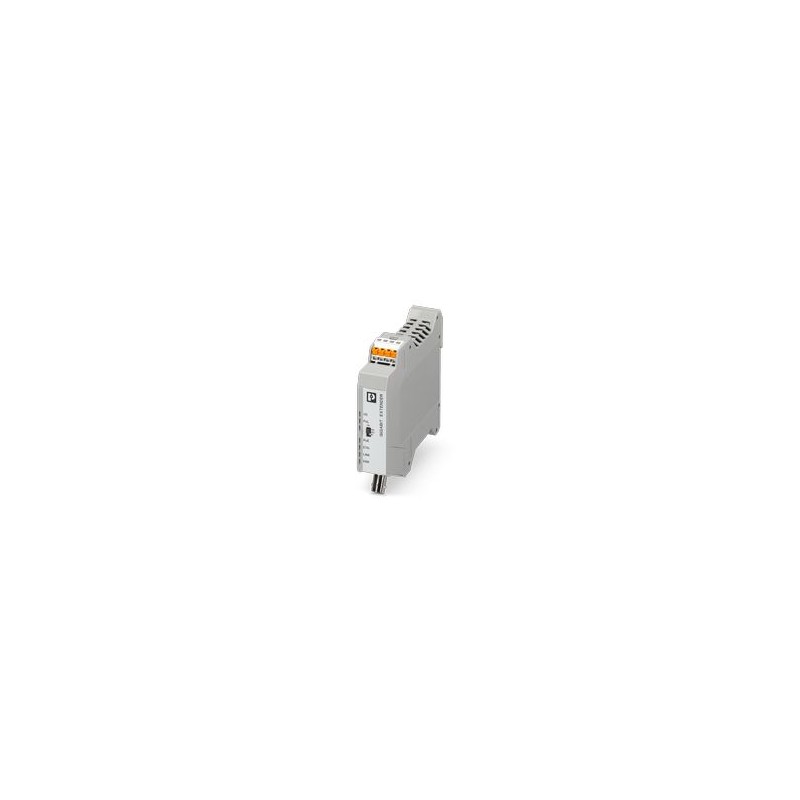

EXTENDER 2010 ETH COAX-G 1319320 PHOENIX CONTACT Extensor Gigabit Ethernet, expansão de rede com cabo coaxia..
EXTENDER 2010 ETH COAX-G
1319320
PHOENIX_CONTACT
Extensor Gigabit Ethernet, expansão de rede com cabo coaxial de até 1 quilômetro e largura de banda de até 1 GBit/s, função Power over Link (PoL) para fornecimento de tensão a outros dispositivos via cabo coaxial, função Power over Ethernet (PoE)
Gigabit Ethernet extender, network extension with coaxial cable up to 1 kilometer and bandwidth up to 1 Gbps, Power over Link function (PoL) for the power supply of additional devices via the coaxial cable, Power over Ethernet function (PoE)
Material de instalação de redes de telecomunicações DNT / FNT > Módulo para componente de rede ativo
Segurança e Comunicações
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Product type | Ethernet extenders |
| MTTF | 293 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 134 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 55 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | |
| Insulation characteristics | |
| Pollution degree | 2 |
| Functionality | |
| Basic functions | Gigabit Ethernet extender in accordance with ITU G.9960 |
| Electrical isolation | VCC (US+GND) // Ethernet (PoE) // G.hn (without PoL) // FE |
| Mains type | Permanent line |
| Test voltage data interface/power supply | 1.5 kV AC (50 Hz, 1 min.) |
| Supply | |
| Supply voltage range | 18 V DC ... 57 V DC |
| Nominal supply voltage | 24 V DC (Without PoL, without PoE) |
| 48 V DC (With PoL or with PoE) | |
| Power consumption | ≤ 7.5 W (Without PoL, without PoE) |
| ≤ 37.5 W (Without PoL, with PoE) | |
| ≤ 37.5 W (With PoL, without PoE) | |
| ≤ 82.5 W (With PoL, with PoE) | |
| Protective circuit | Overload protection, protection against polarity reversal; Internal device protection: 2x 5 AF, internal series diode |
| Cross section AWG | (converted acc. to IEC) |
| Supply | |
| Connection method | Push-in spring connection |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Single conductor/terminal point, rigid | 0.2 mm² ... 2.5 mm² |
| ≥ 0.5 mm² (PoL cables in accordance with DIN VDE 0100, part 523) | |
| Single-wire/terminal point, flexible | 0.2 mm² ... 2.5 mm² |
| ≥ 0.5 mm² (PoL cables in accordance with DIN VDE 0100, part 523) | |
| Conductor cross section, flexible [AWG] | 24 ... 16 |
| Stripping length | 10 mm |
| Signal | Ethernet |
| Basic functions | Gigabit Ethernet extender in accordance with ITU G.9960 |
| Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 | |
| Serial transmission speed | 10/100/1000 Mbps |
| Connection method | RJ45 jack, shielded |
| No. of channels | 1 |
| Transmission length | < 100 m (shielded twisted pair) |
| Protocols supported | Protocol-transparent for TCP/IP, IPv4, and IPv6 |
| Maximum output power | 15 W (at ≤55°C) |
| 30 W (at ≤50°C) | |
| Data: G.hn interface in accordance with ITU G.9960 | |
| Transmission speed | ≤ 1000 Mbps (Depending on the quality of the data line) |
| Connection method | BNC female connector for coaxial cables |
| Transmission length | ≤ 1000 m (Depending on the quality of the data line) |
| Transmission method | QAM (quadrature amplitude modulation) carrier frequency method |
| Output power | ≤ 91 W (With PoL) |
| Dimensional drawing |  |
| Width | 23 mm |
| Height | 101 mm |
| Depth | 115 mm |
| Material | PA 6.6-FR |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 60 °C (Free standing, without PoE) |
| -40 °C ... 55 °C (Free standing, PoE up to 15 W) | |
| -40 °C ... 50 °C (Free standing, PoE up to 30 W) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| CE | |
| Certificate | CE-compliant |
| Corrosive gas test | |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Noise immunity | EN 55035 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4, Class A, industrial area of application |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | ± 6 kV |
| Discharge in air | ± 8 kV |
| Indirect discharge | ± 6 kV |
| Comments | Criterion B |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Frequency range | 80 MHz ... 3 GHz (80% amplitude modulation with 1 kHz) |
| Field intensity | 10 V/m |
| Frequency range | 3 GHz ... 6 GHz (80% amplitude modulation with 1 kHz) |
| Field intensity | 3 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | ± 2.2 kV |
| Signal | ± 2.2 kV (Ethernet, G.hn) |
| Surge current load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Surge current load (surge) | |
| Input | ± 0.5 kV (Symmetrical, unshielded supply line) |
| ± 1 kV (Asymmetrical, unshielded supply line) | |
| Signal | ± 1 kV (Ethernet signal / asymmetrical: shielded Ethernet cable) |
| ± 4 kV (Ethernet signal / asymmetrical: cable to ground, unshielded G.hn cable) | |
| ± 2 kV (Ethernet signal / symmetrical: cable to cable, unshielded G.hn cable) | |
| ± 4 kV (Telecommunication lines, symmetrical, unshielded, with primary protection) | |
| ± 1 kV (Telecommunication lines, symmetrical, unshielded, without primary protection) | |
| Comments | Criterion B |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Frequency range | 0.15 MHz ... 80 MHz (80% amplitude modulation with 1 kHz) |
| Comments | Criterion A |
| Voltage | 10 V |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Mounting type | DIN rail mounting |
| Assembly instructions | To allow for air circulation, mount the device freestanding, with a clearance of at least one centimeter on all sides to other devices. |
| Mounting position | Vertical (horizontal DIN rail) |
| Característica | Valor |
|---|---|
| Ethernet (EF003535) | Sim |
| Ethernet rápida (EF003536) | Não |
| Tipo de construção (EF000767) | Outro |
| Altura (EF000040) | 106.115298 mm |
| Largura (EF000008) | 22.6 mm |
| Profundidade (EF000049) | 114.8188 mm |
