QUINT4-PS/48DC/24DC/5/PT 2910125 PHOENIX CONTACT Primária de comutação de conversor DC/DC, QUINT, montagem e.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

QUINT4-PS/48DC/24DC/5/PT 2910125 PHOENIX CONTACT Primária de comutação de conversor DC/DC, QUINT, montagem e..

QUINT4-PS/48DC/24DC/5/PT

2910125

PHOENIX_CONTACT

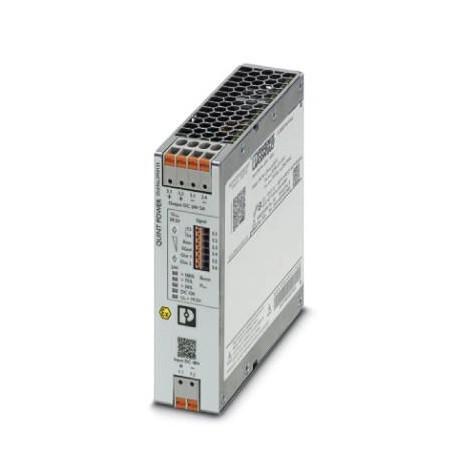

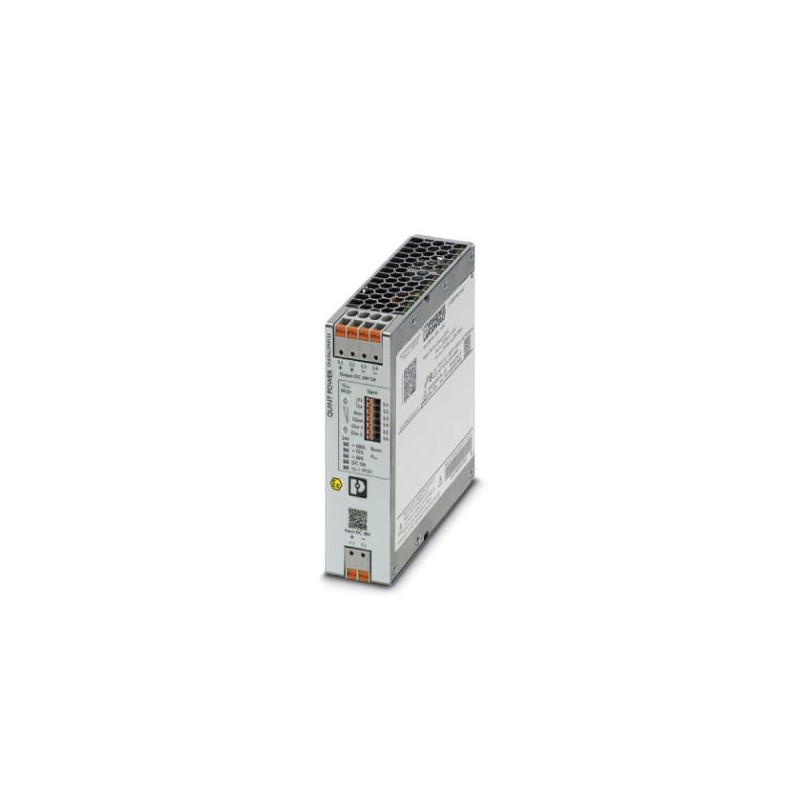

Primária de comutação de conversor DC/DC, QUINT, montagem em trilho DIN, SFB (Tecnologia da Seletiva Fusível de Quebra), Push-in de conexão de entrada: 48 V DC, saída: 24 V DC / 5

Primary-switched DC/DC converter, QUINT, DIN rail mounting, SFB Technology (Selective Fuse Breaking), Push-in connection, input: 48 V DC, output: 24 V DC / 5 A

Mais detalhes


Fontes de alimentação

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Preço total: $304.46
Preço unitário: $304.46

Quantidade Preço
1+$304.46
2+$300.00
3+$300.00
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

Mais informação



Dados comerciais

Chave de encomenda2910125
Quantidade de embalagem1 UNID
Página de catálogoPágina 289 (C-4-2019)
GTIN (EAN)4055626537436
Peso por unidade (exclusive embalagem)824,000 g
Número do imposto alfandegário85044030
País de origemTH (Tailândia)

Desenhos



Block diagram

Block diagram

Diagram

Diagram



Diagram

Diagram

Schematic diagram

Schematic diagram



Voltar para cima

Input data

Input voltage range29 V DC ... 57.5 V DC
Electric strength, max.35 V DC (60 s)
Typical current consumption3.3 A (48 V DC)
Mains bufferingtyp. 18 ms (48 V DC)
Switch-on time< 1 s
Typical response time300 ms (from SLEEP MODE)
Inrush current limitation typical1 A
Inrush current integral (I2t)< 0.2 A2s
Input fuse10 A (slow-blow, internal)
Voltar para cima

Insulation electric strength

Insulation voltage input/output4 kV DC (type test)
2 kV DC (routine test)
Type test (IEC/EN 60950-1) A2 kV DC
Type test (IEC/EN 60950-1) B4 kV DC
Type test (IEC/EN 60950-1) C0.5 kV DC
Type test (IEC/EN 60950-1) D0.5 kV DC
Production test A2 kV DC
Production test B2 kV DC
Production test C0.5 kV DC
Production test D0.5 kV DC
Voltar para cima

Input connection data

Connection methodPush-in connection
Conductor cross section solid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² 4 mm²
Flexible conductor cross section flexible (ferrule, w/o plastic sleeve)0.2 mm² 4 mm²
Conductor cross section AWG24 ... 10
Stripping length10 mm
Voltar para cima

Output data

Nominal output voltage (UN)24 V DC
Setting range of the output voltage (USet)24 V DC ... 29.5 V DC (> 24 V DC, constant capacity)
Nominal output current (IN)5 A
Static Boost (IStat.Boost)6.25 A
Dynamic Boost (IDyn.Boost)10 A (5 s)
Selective Fuse Breaking (ISFB)30 A (15 ms)
Magnetic circuit breaker trippingA1 ... A4 / B2 / C1 ... C2 / Z1 ... Z4
System deviation, static< 1 % (change in load, static 10 % ... 90 %)
System deviation, dynamic< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
System deviation, input voltage change< 0.1 % (change in input voltage ±10 %)
Short-circuit-proofyes
No-load proofyes
Residual ripple< 15 mVPP
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback voltage resistance≤ 35 V DC
Protection against overvoltage at the output (OVP)≤ 32 V DC
Rise time< 1 s (UOUT(10 % ... 90 %))
Voltar para cima

Output connection data

Connection methodPush-in connection
Conductor cross section solid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² 4 mm²
Flexible conductor cross section flexible (ferrule, w/o plastic sleeve)0.2 mm² 4 mm²
Conductor cross section AWG24 ... 10
Stripping length10 mm
Voltar para cima

LED signaling

Types of signalingLED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd
POut> 100% (LED lights up yellow, output power > 240 W)
> 75% (LED lights up green, output power > 180 W)
> 50% (LED lights up green, output power > 120 W)
UOut> 0.9 x USet(LED lights up green)
< 0.9 x USet(LED flashes green)
UIn> 0.8 x UInNom(LED off)
< 0.8 x UInNom(LED lights up yellow)
Voltar para cima

Signal contacts – signal output Out 1 (configurable)

Connection labeling3.5 +
Digital0 V DC
24 V DC
20 mA
DefaultUINinput voltage OK
Signal optionOutput voltage
Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Voltar para cima

Signal contacts – signal output Out 2 (configurable)

Connection labeling3.6 +
Digital0 V DC
24 V DC
20 mA
DefaultOutput power
Signal optionOutput voltage
Output current
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Analog4 mA ... 20 mA ±5 % (Load ≤400 )
Signal optionOutput voltage
Output current
Output power
Voltar para cima

Signal contacts – signal output relay 13/14 (configurable)

Connection labeling3.1, 3.2
Switch contactfloating
Maximum contact load24 V DC
1 A
30 V AC
0.5 A
DefaultOutput voltage
Signal optionOutput current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
UINinput voltage OK
Voltar para cima

Signal contacts – remote signal input (configurable)

Connection labeling3.3 +
FunctionOutput power ON/OFF (remote)
DefaultOutput power ON (>40 kΩ/24 V DC/open bridge between REM and SGnd)
Voltar para cima

Signal contacts – signal ground SGnd

Connection labeling3.4 +
FunctionSignal ground
Reference potentialto OUT1, OUT2, REM
Voltar para cima

Signal connection data

Connection methodPush-in connection
Conductor cross section solid0.2 mm² ... 1 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.2 mm² 0.75 mm²
Flexible conductor cross section flexible (ferrule, w/o plastic sleeve)0.2 mm² 1.5 mm²
Conductor cross section AWG24 ... 16
Stripping length8 mm
Voltar para cima

Reliability

MTBF (IEC 61709, SN 29500)> (25 °C)
> 1000000 h (40 °C)
> (60 °C)
Voltar para cima

Life expectancy (electrolytic capacitors)

Output current2.5 A
Temperature40 °C
Time520000 h
Voltage24 V DC
Output current5 A
Temperature40 °C
Time290000 h
Voltage24 V DC
Output current5 A
Temperature30 °C
Time590000 h
Voltage24 V DC
Voltar para cima

Switching frequency

Auxiliary converter stage190 kHz ... 220 kHz
Main converter stage50 kHz ... 420 kHz
Voltar para cima

General data

Degree of protectionIP20
Protection classSpecial with SELV input and output
Inflammability class in acc. with UL 94 (housing / terminal blocks)V0
Side element versionAluminum
Hood versionStainless steel X6Cr17
Width36 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly39 mm
Weight0.6 kg
Efficiencytyp. 94 % (48 V DC)
Voltar para cima

Power dissipation

Maximum power dissipation in no-load condition< 2 W
Power dissipation SLEEP MODE< 1 W
Power loss nominal load max.< 8 W
Voltar para cima

Ambient conditions

Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Maximum altitude≤ 5000 m (> 2000 m, observe derating)
Vibration (operation)5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Degree of pollution2
Climatic class3K3 (EN 60721)
Overvoltage category EN 61010-1II
Overvoltage category EN 62477-1III
Voltar para cima

Standards

EMC requirements for noise immunityEN 61000-6-1
EN 61000-6-2
EMC requirements for noise emissionEN 61000-6-3
EN 61000-6-4
EMC requirements, power plantIEC 61850-3
EN 61000-6-5
Standard designationElectrical safety (of control and regulation devices)
Standards/regulationsIEC 61010-1
Standard designationSafety extra-low voltage
Standards/regulationsEN 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Standard designationExplosive atmospheres
Standards/regulationsIEC 60079-0
IEC 60079-7
IEC 60079-11
IEC 60079-15
Standard designationMains variation/undervoltage
Standards/regulationsEN 61000-4-29
Voltar para cima

Conformance/approvals

DesignationUL
IdentificationUL Listed UL 61010-1
DesignationUL
IdentificationUL Listed UL 61010-2-201
DesignationUL
IdentificationUL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)
DesignationCSA
IdentificationCAN/CSA-C22.2 No. 61010-1-12
DesignationCSA
IdentificationCAN/CSA-IEC 61010-2-201:14
DesignationSIQ
IdentificationType tested (type approved)
DesignationSIQ
IdentificationCB scheme (IEC 61010-1, IEC 61010-2-201)
DesignationShipbuilding
IdentificationDNV GL
DesignationShipbuilding
IdentificationABS
DesignationATEX
Identification II 3 G Ex ec ic nC IIC T4 Gc X
DesignationIECEx
IdentificationIECEx SIQ 19.0005X
Ex ec ic nC IIC T4 Gc
Voltar para cima

EMC data

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
Conducted noise emissionEN 55016
EN 61000-6-3 (Class B)
Noise emissionEN 55016
EN 61000-6-3 (Class B)
DNV GL conducted interferenceClass B
Additional textBridge and deck area
DNV GL noise radiationClass B
Additional textBridge and deck area
Electrostatic dischargeEN 61000-4-2
Contact discharge8 kV (Test Level 4)
Discharge in air15 kV (Test Level 4)
Electromagnetic HF fieldEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength20 V/m (Test Level 3)
Frequency range1 GHz ... 6 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1 GHz ... 6 GHz
Test field strength10 V/m (Test Level 3)
CommentsCriterion A
Fast transients (burst)EN 61000-4-4
Input2 kV (Test Level 3 - asymmetrical)
Output2 kV (Test Level 3 - asymmetrical)
Signal2 kV (Test Level 4 - asymmetrical)
CommentsCriterion A
Surge voltage load (surge)EN 61000-4-5
Input1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical)
Output1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical)
Signal2 kV (Test Level 3 - asymmetrical)
CommentsCriterion A
I/O/Sasymmetrical
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
CommentsCriterion A
Frequency16.7 Hz
50 Hz
60 Hz
Test field strength100 A/m
Additional text60 s
CommentsCriterion A
Frequency50 Hz
60 Hz
Test field strength1 kA/m
Additional text3 s
CommentsCriterion A
Frequency0 Hz
Test field strength300 A/m
Additional textDC, 60 s
CommentsCriterion A
Voltage dipsEN 61000-4-29
Voltage24 V DC
Voltage dip70 %
Additional textTest Level 2
CommentsCriterion A
Voltage dip40 %
Additional textTest Level 2
CommentsCriterion A
Voltage dip0 %
Additional textTest Level 2
CommentsCriterion B
Pulse-shape magnetic fieldEN 61000-4-9
Test field strength1000 A/m
CommentsCriterion A
Damped oscillating magnetic fieldEN 61000-4-10
Test field strength100 A/m
Test level 1100 kHz
Test field strength100 A/m
Test level 21 MHz
CommentsCriterion A
Asymmetrical conducted disturbance variablesEN 61000-4-16
Test level 115 Hz 150 Hz (Test Level 3)
Voltage10 V 1 V
Test level 2150 Hz 1.5 kHz (Test Level 3)
Voltage1 V
Test level 31.5 kHz 15 kHz (Test Level 3)
Voltage1 V 10 V
Test level 415 kHz 150 kHz (Test Level 3)
Voltage10 V
Test level 516.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3)
Voltage10 V (Permanent)
Test level 60 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3)
Voltage100 V (1 s)
CommentsCriterion A
Alternating component of DC voltageEN 61000-4-17
Attenuated oscillating waveEN 61000-4-18
Input, output (test level 1)100 kHz 1 MHz (Test Level 3 - symmetrical)
Voltage1 kV
Input, output (test level 2)100 kHz 1 MHz (Test Level 2 - asymmetrical)
Voltage1 kV
Input, output (test level 1)10 MHz (Test Level 2 - asymmetrical)
Voltage0.5 kV
Signals (test level 1)100 kHz 1 MHz (Test Level 2 - symmetrical)
Voltage0.5 kV
Signals (test level 2)100 kHz 1 MHz (Test Level 2 - asymmetrical)
Voltage1 kV
CommentsCriterion A
Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.
Criterion CTemporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.
Voltar para cima

Classificações

eCl@ss

eCl@ss 8.027210901
eCl@ss 9.027210901
Voltar para cima

ETIM

ETIM 5.0EC002046
ETIM 6.0EC002046
ETIM 7.0EC002046
Voltar para cima

Datasheet - PDF

Título: Tamanho: Tipo:
PDF CATALOG PHOENIX PROTECTION EN.pdf 27 Mbytes

Avaliações: (0)

Não há comentários do produto ainda.

Adicionar avaliação
ocultar formulário
Avaliação:
Nome:
Email:
Título:
Opinión:
  Captcha
  Adicionar avaliação

Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
