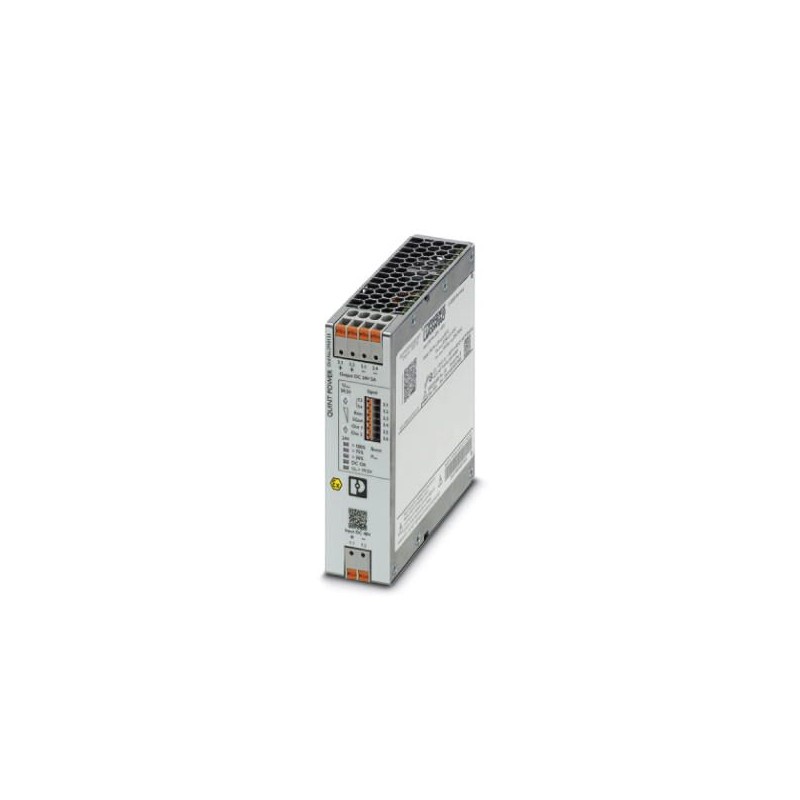

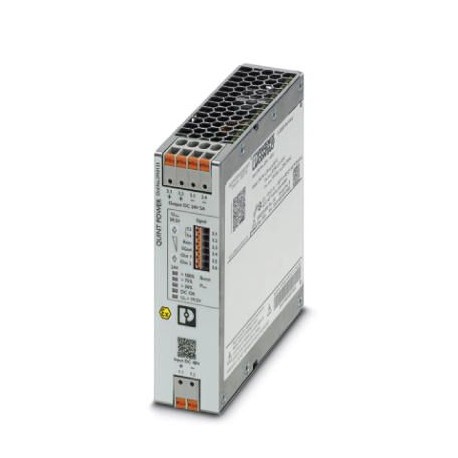

QUINT4-PS/48DC/24DC/5/PT 2910125 PHOENIX CONTACT Primary-switched DC/DC converter, QUINT, DIN rail mounting,..
QUINT4-PS/48DC/24DC/5/PT
2910125
PHOENIX_CONTACT
Primary-switched DC/DC converter, QUINT, DIN rail mounting, SFB Technology (Selective Fuse Breaking), Push-in connection, input: 48 V DC, output: 24 V DC / 5 A
DC/DC Switched Converter in Primary, QUINT POWER, Rail Mounting, SFB Technology (Selective Fuse Breaking),- 48 VDC, Output: 24 VDC / 5 A
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2910125 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 289 (C-4-2019) |
| GTIN | 4055626537436 |
| Weight per Piece (excluding packing) | 820.000 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Back to top
Input data
| Input voltage range | 29 V DC ... 57.5 V DC |
|---|---|
| Electric strength, max. | 35 V DC (60 s) |
| Typical current consumption | 3.3 A (48 V DC) |
| Mains buffering | typ. 18 ms (48 V DC) |
| Switch-on time | < 1 s |
| Typical response time | 300 ms (from SLEEP MODE) |
| Inrush current limitation typical | 1 A |
| Inrush current integral (I2t) | < 0.2 A2s |
| Input fuse | 10 A (slow-blow, internal) |
Insulation electric strength
| Insulation voltage input/output | 4 kV DC (type test) |
|---|---|
| 2 kV DC (routine test) | |
| Type test (IEC/EN 60950-1) A | 2 kV DC |
| Type test (IEC/EN 60950-1) B | 4 kV DC |
| Type test (IEC/EN 60950-1) C | 0.5 kV DC |
| Type test (IEC/EN 60950-1) D | 0.5 kV DC |
| Production test A | 2 kV DC |
| Production test B | 2 kV DC |
| Production test C | 0.5 kV DC |
| Production test D | 0.5 kV DC |
Input connection data
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² 4 mm² |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) | 0.2 mm² 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
| Stripping length | 10 mm |
Output data
| Nominal output voltage (UN) | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC ... 29.5 V DC (> 24 V DC, constant capacity) |
| Nominal output current (IN) | 5 A |
| Static Boost (IStat.Boost) | 6.25 A |
| Dynamic Boost (IDyn.Boost) | 10 A (5 s) |
| Selective Fuse Breaking (ISFB) | 30 A (15 ms) |
| Magnetic circuit breaker tripping | A1 ... A4 / B2 / C1 ... C2 / Z1 ... Z4 |
| System deviation, static | < 1 % (change in load, static 10 % ... 90 %) |
| System deviation, dynamic | < 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) |
| System deviation, input voltage change | < 0.1 % (change in input voltage ±10 %) |
| Short-circuit-proof | yes |
| No-load proof | yes |
| Residual ripple | < 15 mVPP |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback voltage resistance | ≤ 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 32 V DC |
| Rise time | < 1 s (UOUT(10 % ... 90 %)) |
Output connection data
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² 4 mm² |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) | 0.2 mm² 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
| Stripping length | 10 mm |
LED signaling
| Types of signaling | LED |
|---|---|
| Floating signal contact | |
| Active signal output Out1 (digital, configurable) | |
| Active signal output Out2 (analog, configurable) | |
| Remote contact | |
| Signal ground SGnd | |
| POut | > 100% (LED lights up yellow, output power > 240 W) |
| > 75% (LED lights up green, output power > 180 W) | |
| > 50% (LED lights up green, output power > 120 W) | |
| UOut | > 0.9 x USet(LED lights up green) |
| < 0.9 x USet(LED flashes green) | |
| UIn | > 0.8 x UInNom(LED off) |
| < 0.8 x UInNom(LED lights up yellow) |
Signal contacts – signal output Out 1 (configurable)
| Connection labeling | 3.5 + |
|---|---|
| Digital | 0 V DC |
| 24 V DC | |
| 20 mA | |
| Default | UINinput voltage OK |
| Signal option | Output voltage |
| Output current | |
| Output power | |
| Operating hours | |
| Early warning of high temperatures | |
| OVP voltage limitation active |
Signal contacts – signal output Out 2 (configurable)
| Connection labeling | 3.6 + |
|---|---|
| Digital | 0 V DC |
| 24 V DC | |
| 20 mA | |
| Default | Output power |
| Signal option | Output voltage |
| Output current | |
| Operating hours | |
| Early warning of high temperatures | |
| OVP voltage limitation active | |
| Analog | 4 mA ... 20 mA ±5 % (Load ≤400 ) |
| Signal option | Output voltage |
| Output current | |
| Output power |
Signal contacts – signal output relay 13/14 (configurable)
| Connection labeling | 3.1, 3.2 |
|---|---|
| Switch contact | floating |
| Maximum contact load | 24 V DC |
| 1 A | |
| 30 V AC | |
| 0.5 A | |
| Default | Output voltage |
| Signal option | Output current |
| Output power | |
| Operating hours | |
| Early warning of high temperatures | |
| OVP voltage limitation active | |
| UINinput voltage OK |
Signal contacts – remote signal input (configurable)
| Connection labeling | 3.3 + |
|---|---|
| Function | Output power ON/OFF (remote) |
| Default | Output power ON (>40 kΩ/24 V DC/open bridge between REM and SGnd) |
Signal contacts – signal ground SGnd
| Connection labeling | 3.4 + |
|---|---|
| Function | Signal ground |
| Reference potential | to OUT1, OUT2, REM |
Signal connection data
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid | 0.2 mm² ... 1 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² 0.75 mm² |
| Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) | 0.2 mm² 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
Life expectancy (electrolytic capacitors)
| Output current | 2.5 A |
|---|---|
| Temperature | 40 °C |
| Time | 520000 h |
| Voltage | 24 V DC |
| Output current | 5 A |
| Temperature | 40 °C |
| Time | 290000 h |
| Voltage | 24 V DC |
| Output current | 5 A |
| Temperature | 30 °C |
| Time | 590000 h |
| Voltage | 24 V DC |
Switching frequency
| Auxiliary converter stage | 190 kHz ... 220 kHz |
|---|---|
| Main converter stage | 50 kHz ... 420 kHz |
General data
| Degree of protection | IP20 |
|---|---|
| Protection class | Special with SELV input and output |
| Inflammability class in acc. with UL 94 (housing / terminal blocks) | V0 |
| Side element version | Aluminum |
| Hood version | Stainless steel X6Cr17 |
| Width | 36 mm |
| Height | 130 mm |
| Depth | 125 mm |
| Width with alternative assembly | 122 mm |
| Height with alternative assembly | 130 mm |
| Depth with alternative assembly | 39 mm |
| Weight | 0.6 kg |
| Efficiency | typ. 94 % (48 V DC) |
Power dissipation
| Maximum power dissipation in no-load condition | < 2 W |
|---|---|
| Power dissipation SLEEP MODE | < 1 W |
| Power loss nominal load max. | < 8 W |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
|---|---|
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) |
| Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Degree of pollution | 2 |
| Climatic class | 3K3 (EN 60721) |
| Overvoltage category EN 61010-1 | II |
| Overvoltage category EN 62477-1 | III |
Standards
| EMC requirements for noise immunity | EN 61000-6-1 |
|---|---|
| EN 61000-6-2 | |
| EMC requirements for noise emission | EN 61000-6-3 |
| EN 61000-6-4 | |
| EMC requirements, power plant | IEC 61850-3 |
| EN 61000-6-5 | |
| Standard designation | Electrical safety (of control and regulation devices) |
| Standards/regulations | IEC 61010-1 |
| Standard designation | Safety extra-low voltage |
| Standards/regulations | EN 61010-1 (SELV) |
| IEC 61010-2-201 (PELV) | |
| Standard designation | Explosive atmospheres |
| Standards/regulations | IEC 60079-0 |
| IEC 60079-7 | |
| IEC 60079-11 | |
| IEC 60079-15 | |
| Standard designation | Mains variation/undervoltage |
| Standards/regulations | EN 61000-4-29 |
Conformance/approvals
| Designation | UL |
|---|---|
| Identification | UL Listed UL 61010-1 |
| Designation | UL |
| Identification | UL Listed UL 61010-2-201 |
| Designation | UL |
| Identification | UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
| Designation | CSA |
| Identification | CAN/CSA-C22.2 No. 61010-1-12 |
| Designation | CSA |
| Identification | CAN/CSA-IEC 61010-2-201:14 |
| Designation | SIQ |
| Identification | Type tested (type approved) |
| Designation | SIQ |
| Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) |
| Designation | Shipbuilding |
| Identification | DNV GL |
| Designation | Shipbuilding |
| Identification | ABS |
| Designation | ATEX |
| Identification | II 3 G Ex ec ic nC IIC T4 Gc X |
| Designation | IECEx |
| Identification | IECEx SIQ 19.0005X |
| Ex ec ic nC IIC T4 Gc |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Conducted noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| Noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| DNV GL conducted interference | Class B |
| Additional text | Bridge and deck area |
| DNV GL noise radiation | Class B |
| Additional text | Bridge and deck area |
| Electrostatic discharge | EN 61000-4-2 |
| Contact discharge | 8 kV (Test Level 4) |
| Discharge in air | 15 kV (Test Level 4) |
| Electromagnetic HF field | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 20 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A |
| Fast transients (burst) | EN 61000-4-4 |
| Input | 2 kV (Test Level 3 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 2 kV (Test Level 4 - asymmetrical) |
| Comments | Criterion A |
| Surge voltage load (surge) | EN 61000-4-5 |
| Input | 1 kV (Test Level 3 - symmetrical) |
| 2 kV (Test Level 3 - asymmetrical) | |
| Output | 1 kV (Test Level 3 - symmetrical) |
| 2 kV (Test Level 3 - asymmetrical) | |
| Signal | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| I/O/S | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz |
| Voltage | 10 V (Test Level 3) |
| Comments | Criterion A |
| Frequency | 16.7 Hz |
| 50 Hz | |
| 60 Hz | |
| Test field strength | 100 A/m |
| Additional text | 60 s |
| Comments | Criterion A |
| Frequency | 50 Hz |
| 60 Hz | |
| Test field strength | 1 kA/m |
| Additional text | 3 s |
| Comments | Criterion A |
| Frequency | 0 Hz |
| Test field strength | 300 A/m |
| Additional text | DC, 60 s |
| Comments | Criterion A |
| Voltage dips | EN 61000-4-29 |
| Voltage | 24 V DC |
| Voltage dip | 70 % |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Voltage dip | 40 % |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Voltage dip | 0 % |
| Additional text | Test Level 2 |
| Comments | Criterion B |
| Pulse-shape magnetic field | EN 61000-4-9 |
| Test field strength | 1000 A/m |
| Comments | Criterion A |
| Damped oscillating magnetic field | EN 61000-4-10 |
| Test field strength | 100 A/m |
| Test level 1 | 100 kHz |
| Test field strength | 100 A/m |
| Test level 2 | 1 MHz |
| Comments | Criterion A |
| Asymmetrical conducted disturbance variables | EN 61000-4-16 |
| Test level 1 | 15 Hz 150 Hz (Test Level 3) |
| Voltage | 10 V 1 V |
| Test level 2 | 150 Hz 1.5 kHz (Test Level 3) |
| Voltage | 1 V |
| Test level 3 | 1.5 kHz 15 kHz (Test Level 3) |
| Voltage | 1 V 10 V |
| Test level 4 | 15 kHz 150 kHz (Test Level 3) |
| Voltage | 10 V |
| Test level 5 | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) |
| Voltage | 10 V (Permanent) |
| Test level 6 | 0 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3) |
| Voltage | 100 V (1 s) |
| Comments | Criterion A |
| Alternating component of DC voltage | EN 61000-4-17 |
| Attenuated oscillating wave | EN 61000-4-18 |
| Input, output (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) |
| Voltage | 1 kV |
| Input, output (test level 2) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) |
| Voltage | 1 kV |
| Input, output (test level 1) | 10 MHz (Test Level 2 - asymmetrical) |
| Voltage | 0.5 kV |
| Signals (test level 1) | 100 kHz 1 MHz (Test Level 2 - symmetrical) |
| Voltage | 0.5 kV |
| Signals (test level 2) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) |
| Voltage | 1 kV |
| Comments | Criterion A |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| 1st secondary output voltage (EF006792) | 24 V |
| Max. output current 1 (EF008284) | 10 A |
| Secondary voltage adjustable (EF007002) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output current 1 (EF009396) | 5 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage DC (EF007078) | 29 V |
| Output voltage stabilized (EF003092) | Yes |
| Power output (EF003034) | 120 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Other |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 130 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 36 mm |
| Height (EF000040) | 130 mm |
| Depth (EF000049) | 125 mm |
| Suitable for safety functions (EF001597) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
