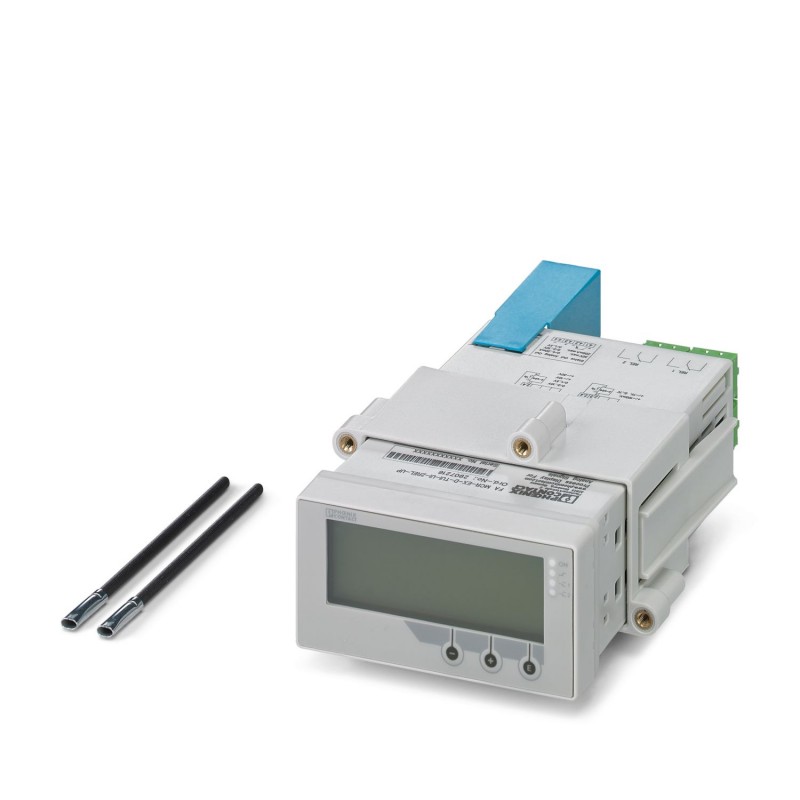

FA MCR-EX-D-TUI-UI-2REL-UP 2907216 PHOENIX CONTACT Display digital
FA MCR-EX-D-TUI-UI-2REL-UP
2907216
PHOENIX_CONTACT
Display digital
Ex i, Indicador de Processo Multifuncional em Caixa para Componentes de Painéis Elétricos para Monitoramento e Exibição de Valores de Medição Analógica. As entradas universais permitem a conexão de corrente, tensão, RTDs e termopares. 2 saídas de relé de contato comutado e 1 saída analógica. HART
Ex i, Process indicator, multifunctional, in control panel component housing for monitoring and displaying analog measurement data. Universal inputs enable the connection of current, voltage, RTDs, and TCs. 2 relay change-over contact outputs and 1 analog output.. HART
Acessórios/peças para instrumentos > Acessórios/peças para sensores
Interface
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados técnicos
Product properties
| Product type | Digital displays |
| Product family | Field Analog |
| Configuration | Keyboard |
| Software | |
| Data management status | |
| Article revision | 02 |
| Insulation characteristics | |
| Protection class | I |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
System properties
| Functionality | |
| Configuration | Keyboard |
| Software | |
Electrical properties
| Test voltage | 2500 V (Relay/relay) |
| 2500 V (Relay for input/output/power supply) | |
| Test voltage output/power supply | 2500 V |
| Test voltage input/output | 1500 V |
| Test voltage input/power supply | 2500 V |
| Electrical isolation Input/output/power supply | |
| Electrical isolation | 375 V |
| Supply | |
| Supply voltage range | 24 V AC/DC ... 230 V AC/DC (-20 % ... +10 %, 50 Hz ... 60 Hz) |
| Max. current consumption | 30 mA |
| Power consumption | ≤ 6.9 W |
Input data
| Signal: Current | |
| Description of the input | Universal input |
| Number of inputs | 1 |
| Input signal | Current |
| Current input signal | 0 mA ... 20 mA +10 % |
| 4 mA ... 20 mA +10 % | |
| Max. current input signal | < 150 mA |
| Available input sources | Current |
| Input resistance current input | 10 Ω |
| Transmitter supply voltage | > 16 V (22 mA) |
| Transmitter supply voltage range | 22.8 V ... 27.6 V (No-load) |
| Transmitter supply current | < 30 mA (Short-circuit and overload protection) |
| D/A converter resolution | 16 bit |
| Signal: Voltage | |
| Description of the input | Universal input |
| Input signal | Voltage |
| Voltage input signal | 0 V ... 10 V |
| 2 V ... 10 V | |
| 0 V ... 5 V | |
| 0 V ... 1 V | |
| 1 V ... 5 V | |
| -1 V ... 1 V | |
| -10 V ... 10 V | |
| -30 V ... 30 V | |
| -100 mV ... 100 mV | |
| Max. voltage input signal | ± 35 V (≥ 1 V) |
| ± 12 V (< 1 V) | |
| Available input sources | Voltage |
| Input resistance of voltage input | > 1 MΩ |
| Signal: Resistance | |
| Description of the input | Universal input |
| Input signal | Resistor |
| Available input sources | Resistance: 30 Ω ... 3000 Ω |
| Measurement | |
| Description of the input | Universal input |
| Configurable/programmable | Yes |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors |
| Available input sources | Resistance thermometers |
| Temperature measuring range | -200 °C ... 1100 °C (Range depends on sensor type, adjustable) |
| Connection technology | 2-, 3-, 4-conductor |
| Measuring rate | 200 ms |
| Measurement | |
| Description of the input | Universal input |
| Configurable/programmable | Yes |
| Sensor types that can be used (TC) | J, K, T, N, B, S, R, U. L, C, D |
| Available input sources | Thermocouples |
| Temperature measuring range | -200 °C ... 2495 °C (Range depends on sensor type, adjustable) |
| Measuring rate | 200 ms |
Output data
| Switching: Relay | |
| Contact switching type | 2 changeover contacts |
| Minimum switching voltage | 12 V |
| Maximum switching voltage | 30 V DC (3 A) |
| 230 V AC (3 A) | |
| Min. switching current | 10 mA |
| Max. switching current | 3 A |
| Switching: Transistor | |
| Output description | Open collector output |
| Number of outputs | 1 |
| Contact switching type | Transistor |
| Maximum switching voltage | 28 V |
| Max. switching current | 200 mA |
| Signal: Current | |
| Number of outputs | 1 |
| Configurable/programmable | Yes |
| Current output signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Max. current output signal | < 22 mA |
| Load/output load current output | ≤ 500 Ω (22 mA) |
| Ripple | < 10 mVPP(500 Ω) |
| D/A converter resolution | 13 bit |
| Number of positions displayed | 5 |
| Display | 7-segment LC display, with backlight, dot matrix for text/bar graph |
| Temperature coefficient, typical | 0.01 %/K |
| Signal: Voltage | |
| Voltage output signal | 0 V ... 10 V |
| 2 V ... 10 V | |
| 0 V ... 5 V | |
| 1 V ... 5 V | |
| Max. voltage output signal | < 11 V |
| Non-load voltage | 24 V DC (+15 %/-5 %) |
| Short-circuit current | < 25 mA |
| Ripple | < 10 mVPP(1000 Ω) |
| D/A converter resolution | 13 bit |
| Temperature coefficient, typical | 0.01 %/K |
Connection data
| Input, Output, Status | |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 |
| Relay, power supply | |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.4 Nm ... 0.4 Nm |
Ex data
| Ex i circuits (EPL) | Ga |
| Da | |
| Safety data | |
| Note | Two-conductor measuring transducer supply (intrinsically safe) |
| Max. internal inductance Li | 75 µH |
| Max. internal capacitance Ci | 8 nF |
| Max. output voltage Uo | ≤ 27.3 V |
| Max. output current Io | ≤ 96.5 mA |
| Max. output power Po | ≤ 659 mW |
| Ex ia IIC: Max. external inductivity Lo/ Max. external capacitance Co | 4 mH / 88 nF |
| Ex ia IIB: Max. external inductivity Lo/ Max. external capacitance Co | 17 mH / 683 nF |
| Ex ia IIA: Max. external inductivity Lo/ Max. external capacitance Co | 34 mH / 2280 nF |
| Safety data | |
| Note | Temperature inputs (intrinsically safe) |
| Max. internal inductance Li | 75 µH |
| Max. internal capacitance Ci | 8 nF |
| Max. output voltage Uo | ≤ 27.3 V |
| Max. output current Io | ≤ 22.1 mA |
| Max. output power Po | ≤ 151 mW |
| Ex ia IIC: Max. external inductivity Lo/ Max. external capacitance Co | 500 µH / 85 nF |
| Ex ia IIB: Max. external inductivity Lo/ Max. external capacitance Co | 2 mH / 360 nF |
| Ex ia IIA: Max. external inductivity Lo/ Max. external capacitance Co | 5 mH / 530 nF |
| Safety data | |
| Note | Current input (intrinsically safe) |
| Max. internal inductance Li | 75 µH |
| Max. internal capacitance Ci | 8 nF |
| Max. output voltage Uo | ≤ 27.3 V |
| Max. output current Io | ≤ 5 mA |
| Max. output power Po | ≤ 34.2 mW |
| Ex ia IIC: Max. external inductivity Lo/ Max. external capacitance Co | 500 mH / 88 nF |
| Ex ia IIB: Max. external inductivity Lo/ Max. external capacitance Co | 2 mH / 380 nF |
| Ex ia IIA: Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 540 nF |
| Safety data | |
| Note | Voltage input (intrinsically safe) |
| Max. internal inductance Li | 75 µH |
| Max. internal capacitance Ci | 8 nF |
| Max. output voltage Uo | ≤ 27.3 V |
| Max. output current Io | ≤ 5 mA |
| Max. output power Po | ≤ 34.2 mW |
| Ex ia IIC: Max. external inductivity Lo/ Max. external capacitance Co | 500 mH / 88 nF |
| Ex ia IIB: Max. external inductivity Lo/ Max. external capacitance Co | 2 mH / 380 nF |
| Ex ia IIA: Max. external inductivity Lo/ Max. external capacitance Co | 100 mH / 540 nF |
Interfaces
| Data: T-PORT | |
| Connection method | 4-pos. socket |
| Data: USB | |
| Serial transmission speed | 38400 baud |
| Data communication (bypass) | |
| Protocols supported | HART |
Signaling
| Status display | LED (red) |
Dimensions
| Width | 96 mm |
| Height | 48 mm |
| Depth | 175 mm |
Material specifications
| Color | light gray (RAL 7035) |
| Housing material | PC-GF10 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 (Front) |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | < 2000 m (Above sea level) |
| Climatic class | according to IEC 60654-1, class B2 |
| Permissible humidity (operation) | Front: condensation permitted |
| Device body: no condensation | |
Approvals
| CE | |
| Certificate | CE-compliant |
| ATEX | |
| Identification | II (1) G [Ex ia Ga] IIC |
| II (1) D [Ex ia Da] IIIC | |
| Certificate | PTB 15 ATEX 2011 |
| UKCA Ex (UKEX) | |
| Certificate | CML 21UKEX2995 |
| UL, USA/Canada | |
| Identification | UL 61010 Recognized |
| FM | |
| Identification | AIS, NI/I/2/ABCDEFG/T4 |
| CSA | |
| Identification | AIS, NI/I/2/ABCDEFG/T4 |
| Shipbuilding approval | |
| Certificate | DNV GL TAA000029G |
| DNV GL data | |
| Temperature | B |
| Humidity | B |
| Vibration | A |
| EMC | B |
| Enclosure | B (front) / A (rear) |
EMC data
| Noise immunity | IEC 61326 / NAMUR NE 21 |
| Noise emission | IEC 61326, class A |
Mounting
| Mounting type | DIN rail mounting |
| Panel mount | |
| Mounting position | Max. viewing angle range +/- 45° from the centre line of the display in every direction |
| Característica | Valor |
|---|---|
| Tipo de acessório/peça de reposição (EF000215) | Outro |
| Acessório (EF013236) | Não |
| Peça de substituição (EF013237) | Não |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
