EV-T2M3SO12-4P-R-BL-SET 1532128 PHOENIX CONTACT Conexão CHARX modular, Tomada de infraestrutura, Retangular,..
EV-T2M3SO12-4P-R-BL-SET
1532128
PHOENIX_CONTACT
10

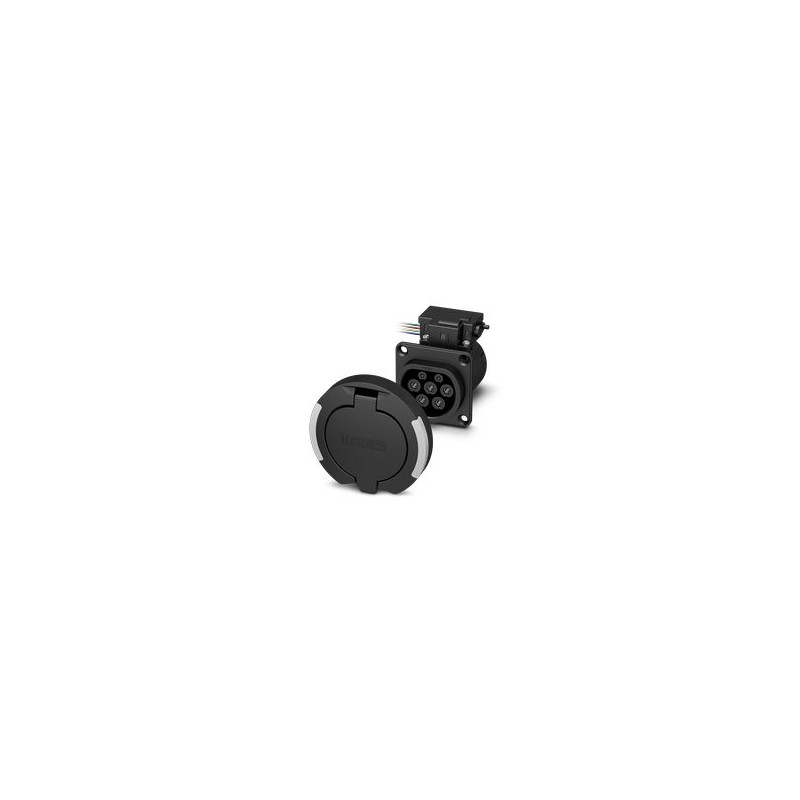

Conexão CHARX modular, Tomada de infraestrutura, Retangular, Básica, Set, Com tampa protetora redonda, Com LED (conexão catódica comum), Para carregamento de veículos elétricos (EVs) com corrente alternada (AC), Tipo 2, IEC62196-2, 32 A / 480 V (AC), sem condutores individuais, atuador de travamento: 12 V, 4 polos, Montagem na parede traseira, rosca M5, carcaça: preto, logotipo PHOENIX CONTACT
CHARX connect modular, Infrastructure charging socket, square, Basic, Set, with round protective cover, with LED (common cathode connection), for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC 62196-2, 32 A / 480 V (AC), without single-core wires, locking actuator: 12 V, 4-pos., Rear panel mounting, M5 thread, housing: black, PHOENIX CONTACT logo
Mobilidade Eletrônica
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Design (Infrastructure charging socket) | square |
| Design (Protective cover) | circular |
| Design (Protective cap) | circular |
| Product type | Infrastructure charging socket |
| Product family | CHARX connect modular |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with infrastructure charging plugs | |
| Type | Basic |
| Set | |
| Design | with round protective cover |
| with LED (common cathode connection) | |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Connection via spade connector, separable and reconnectable |
| Type of charging current | AC 3-phase |
| Charging power rating | 22 kW |
| Charging power | max. 26.6 kW |
| Charging current | max. 32 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| LED function | |
| Application | to display the charging status |
| Position | in the frame of the protective cover |
| Connection type | common cathode |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.2 A |
| Reverse current of the motor | max. 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Cross section AWG | (converted acc. to IEC) |
| Infrastructure charging socket | |
| Dimensional drawing |  |
| Width | 75 mm |
| Height | 91.71 mm |
| Depth | 87.95 mm |
| Protective cover | |
| Dimensional drawing |  |
| Width | 85 mm |
| Height | 93.7 mm |
| Depth | 30.5 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Protective cap | |
| Width | 64 mm |
| Height | 57 mm |
| Depth | 24 mm |
| Color (Housing) | black (9005) |
| Color (Protective cover) | black (9005) |
| Material (Housing) | Plastic |
| Material (Protective cover) | Plastic |
| Material (Contact surface) | Silver |
| Cable type | without single-core wires |
| Single-core wires for locking actuator | |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Single wire, material | PVC |
| Single wire, color | BU/RD, BU/GN, BU/YE, BU/BN |
| External cable diameter | 1.6 mm ±0.20 mm |
| Cable resistance | ≤ 37.1 Ω/m |
| Type of cover movement | Self-locking |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Infrastructure charging socket) | IP44 (plugged in) |
| Degree of protection (Protective cover) | IP54 |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Infrastructure charging socket | Rear panel mounting (0 to 90 degree frontal inclination possible) |
| Mounting type Protective cover | Rear panel mounting |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 30 mm (Rear panel mounting, normative maximum specification for infrastructure charging plug when using protective cover 1347426) | |
| Mounting hole diameter | 7.00 mm (ø) |
| Fixing screws | M5 thread |
| Screws included in the scope of delivery | none |
