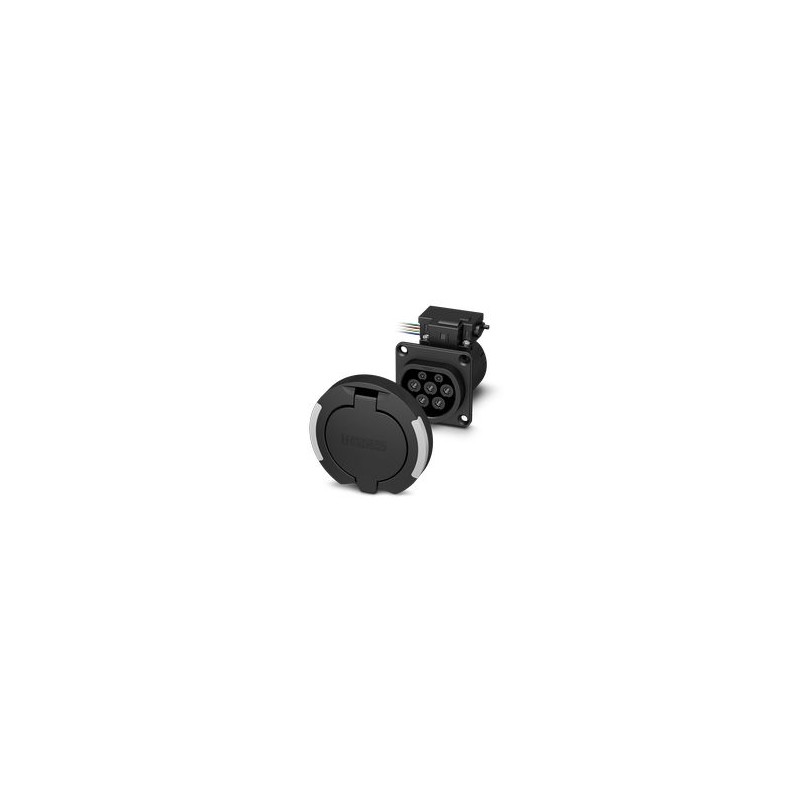

EV-T2M3SO12-4P-R-BL-SET 1532128 PHOENIX CONTACT CHARX connect modular, Infrastructure socket, Rectangular, B..
EV-T2M3SO12-4P-R-BL-SET
1532128
PHOENIX_CONTACT
10
CHARX connect modular, Infrastructure socket, Rectangular, Basic, Set, With round protective cover, With LED (common cathode connection), For charging electric vehicles (EVs) with alternating current (AC), Type 2, IEC62196-2, 32 A / 480 V (AC), without individual conductors, locking actuator: 12 V, 4 poles, Rear wall mounting, M5 thread, housing: black, PHOENIX CONTACT logo
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Product properties
| Design (Infrastructure charging socket) | square |
| Design (Protective cover) | circular |
| Design (Protective cap) | circular |
| Product type | Infrastructure charging socket |
| Product family | CHARX connect modular |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with infrastructure charging plugs | |
| Type | Basic |
| Set | |
| Design | with round protective cover |
| with LED (common cathode connection) | |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Electrical properties
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Connection via spade connector, separable and reconnectable |
| Type of charging current | AC 3-phase |
| Charging power rating | 22 kW |
| Charging power | max. 26.6 kW |
| Charging current | max. 32 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| LED function | |
| Application | to display the charging status |
| Position | in the frame of the protective cover |
| Connection type | common cathode |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Locking actuator | |
| Operating voltage | 12 V |
| Note number of positions | 4-pos. |
| Position of the locking actuator | top center |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Typical motor current for locking | 0.2 A |
| Reverse current of the motor | max. 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 10000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
Connection data
| Cross section AWG | (converted acc. to IEC) |
Dimensions
| Infrastructure charging socket | |
| Dimensional drawing |  |
| Width | 75 mm |
| Height | 91.71 mm |
| Depth | 87.95 mm |
| Protective cover | |
| Dimensional drawing |  |
| Width | 85 mm |
| Height | 93.7 mm |
| Depth | 30.5 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Protective cap | |
| Width | 64 mm |
| Height | 57 mm |
| Depth | 24 mm |
Material specifications
| Color (Housing) | black (9005) |
| Color (Protective cover) | black (9005) |
| Material (Housing) | Plastic |
| Material (Protective cover) | Plastic |
| Material (Contact surface) | Silver |
Cable/line
| Cable type | without single-core wires |
| Single-core wires for locking actuator | |
| Cable length | 0.5 m |
| Cable structure | 4 x 0.5 mm² |
| Single wire, material | PVC |
| Single wire, color | BU/RD, BU/GN, BU/YE, BU/BN |
| External cable diameter | 1.6 mm ±0.20 mm |
| Cable resistance | ≤ 37.1 Ω/m |
Mechanical properties
| Type of cover movement | Self-locking |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (Infrastructure charging socket) | IP44 (plugged in) |
| Degree of protection (Protective cover) | IP54 |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
Standards and regulations
| Standards | |
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Infrastructure charging socket | Rear panel mounting (0 to 90 degree frontal inclination possible) |
| Mounting type Protective cover | Rear panel mounting |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 30 mm (Rear panel mounting, normative maximum specification for infrastructure charging plug when using protective cover 1347426) | |
| Mounting hole diameter | 7.00 mm (ø) |
| Fixing screws | M5 thread |
| Screws included in the scope of delivery | none |
