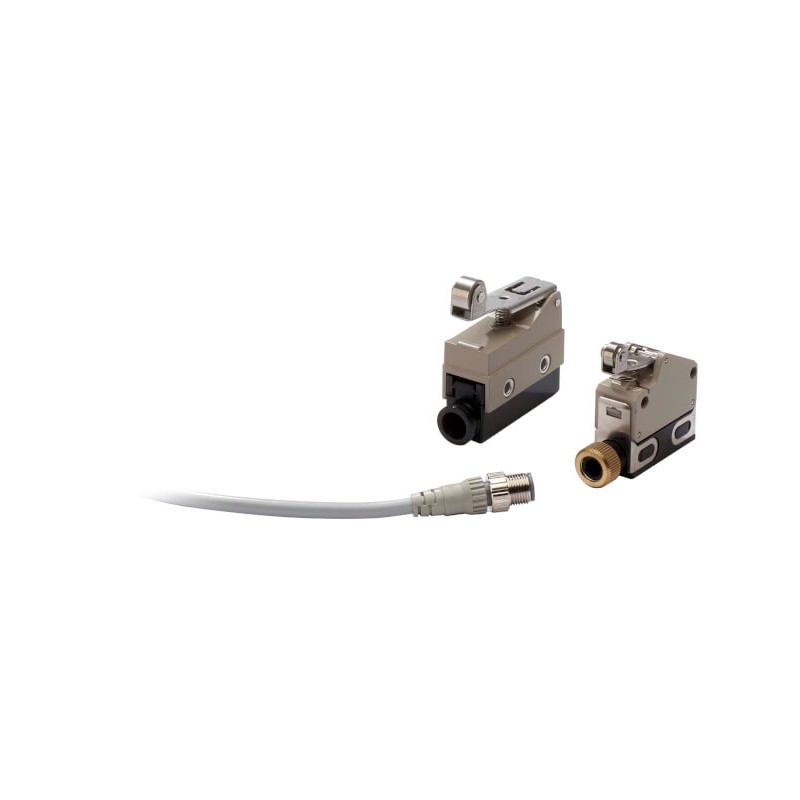

SHL-W55 SHLN2700M 111619 OMRON Alavanca curta IP67 miniatura

Enclosed Switch
SHL
Subminiature Enclosed Switch (Measuring
48 x 17.5 x 45 mm) with High Sealing
Property
• Built-in coil spring type basic switch housed in rigid zinc diecast alloy casting boasts long life and high precision.
• Requires nearly the same operating force as conventional basic precision switches (2.35 to 3.92 N).
• Molded terminal model is available.
• Operation indicator model is also available.
Model Number Structure
■ Model Number Legend
Standard Models
SHL-@55-@
1 2
1. Actuator
D: Plunger
Q: Panel mount plunger
Q22: Panel mount roller plunger
Q21: Panel mount crossroller plunger
W: Short hinge lever
W1: Hinge lever
W2: Short hinge roller lever
W21: Hinge roller lever
W3: One-way action short hinge roller lever
W31: One-way action hinge roller lever
2. Rated Current
None: Standard
01: Micro Load
Note: Refer to page 53 for Molded Terminal Models.
Ordering Information
■ List of Models
Plunger
Actuator Standard model Micro voltage
SHL-D55 SHL-D55-01
Panel mount plunger
Panel mount roller plunger
Panel mount crossroller plunger
Short hinge lever
SHL-Q55 SHL-Q55-01
SHL-Q2255 SHL-Q2255-01
SHL-Q2155 SHL-Q2155-01
SHL-W55 SHL-W55-01
Enclosed Switch SHL F-45
