EASY-BOX-E4-AC1 197229 EATON ELECTRIC Pacote inicial consistindo de FÁCIL E4-AC-12RC1, cabo de conexão e de .. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

EASY-BOX-E4-AC1 197229 EATON ELECTRIC Pacote inicial consistindo de FÁCIL E4-AC-12RC1, cabo de conexão e de ..

EASY-BOX-E4-AC1

197229

EATON-MOELLER

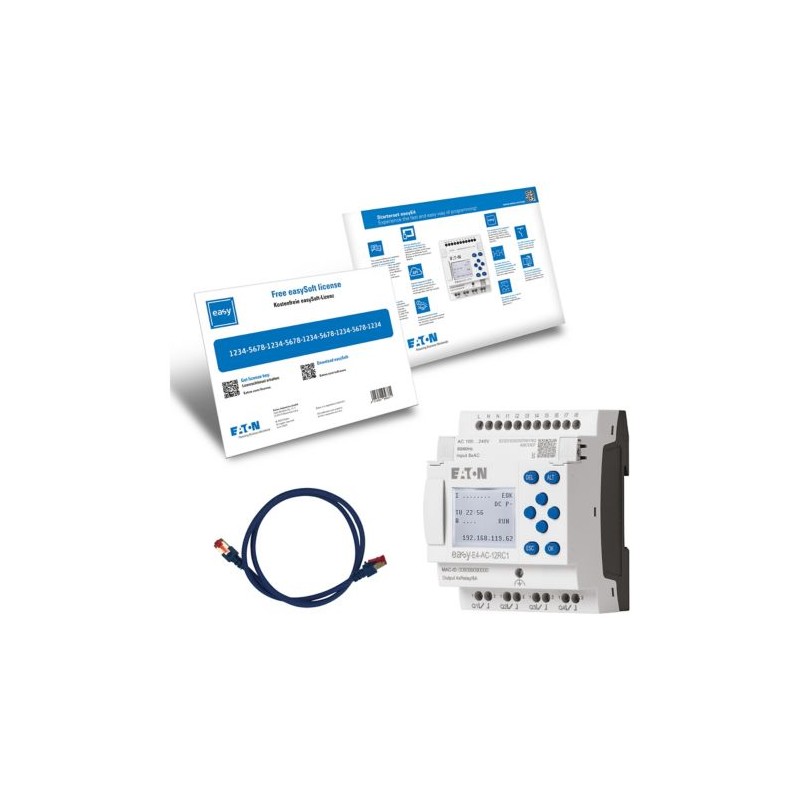

Pacote inicial consistindo de FÁCIL E4-AC-12RC1, cabo de conexão e de licença de software para easySoft

Nano easy E4 Starter Pack AC Controller (Saídas de Relé)

Eaton Moeller® series EASY Starter package consisting of EASY-E4-AC-12RC1, patch cable and software license for easySoft

Mais detalhes


Controladores industriais (PLC) > Módulo lógico

Easy E4 Nanocontroladores

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $298.85
Preço unitário: $298.85

Quantidade Preço
1+$298.85
2+$264.51
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series EASY Starter kit
Catalog Number
197229
EAN
4015080892908
Product Length/Depth
200 mm
Product Height
135 mm
Product Width
255 mm
Product Weight
0.6 kg
Compliances
Eaton supports the product until its end of life
Certifications
EN 55011
EN 55022
IEC/EN 61000-4
IEC/EN 61000-4-2
IEC 60068-2-6
IEC 60068-2-27
Catalog Notes
depending on ambient air temperature fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible
Model Code
EASY-BOX-E4-AC1

Especificações do produto

Type
Starter kit
Air discharge
8 kV
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Basic device
Connection cable
Control unit
Software preinstalled
Programming software
Pollution degree
2
Air pressure
795 - 1080 hPa (operation)
Environmental conditions
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142
Condensation: prevent with appropriate measures
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting position
Vertical
Horizontal
Contact discharge
6 kV
Overvoltage category
III
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)
Insulation resistance
According to EN 50178
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
