> EATON - MOELLER>Nanocontrollori Easy E4>EASY-BOX-E4-AC1 197229 ELECTRIC Starter package consisting of EASY-E4-AC-12RC1, patch cable and softwa..
Prodotto precedente Prodotto successivo
EASY-BOX-E4-AC1 197229 EATON ELECTRIC Starter package consisting of EASY-E4-AC-12RC1, patch cable and softwa.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

EASY-BOX-E4-AC1 197229 EATON ELECTRIC Starter package consisting of EASY-E4-AC-12RC1, patch cable and softwa..

EASY-BOX-E4-AC1

197229

EATON-MOELLER

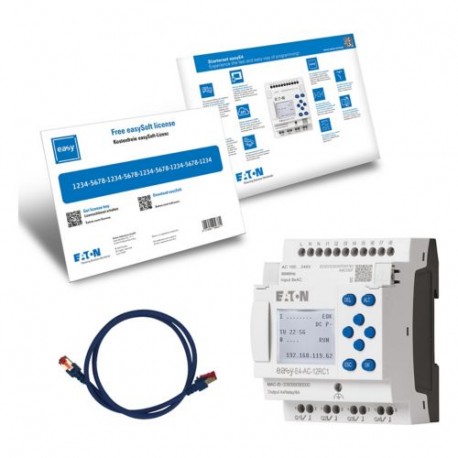

Starter package consisting of EASY-E4-AC-12RC1, patch cable and software license for easySoft

Nano easy E4 Starter Pack Controller CA (uscite a relè)

Eaton Moeller® series EASY Starter package consisting of EASY-E4-AC-12RC1, patch cable and software license for easySoft

Maggiori dettagli


sistemi di controllo industriali (PLC) > modulo logico

Nanocontrollori Easy E4

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $298.85
Prezzo unitario: $298.85

Quantità Prezzo
1+$298.85
2+$264.51
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series EASY Starter kit
Catalog Number
197229
EAN
4015080892908
Product Length/Depth
200 mm
Product Height
135 mm
Product Width
255 mm
Product Weight
0.6 kg
Compliances
Eaton supports the product until its end of life
Certifications
EN 55011
EN 55022
IEC/EN 61000-4
IEC/EN 61000-4-2
IEC 60068-2-6
IEC 60068-2-27
Catalog Notes
depending on ambient air temperature fluctuations of up to ± 5 s/day (± 0.5 h⁄year) are possible
Model Code
EASY-BOX-E4-AC1

Caratteristiche & Funzioni

Fitted with:
Basic device
Connection cable
Control unit
Software preinstalled
Programming software

Informazioni generali

Insulation resistance
According to EN 50178
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Overvoltage category
III
Pollution degree
2
Type
Starter kit

Condizioni ambientali, dati meccanici

Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Mounting position
Vertical
Horizontal
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Condizioni ambientali e climatiche

Air discharge
8 kV
Environmental conditions
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 142
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (IEC 60068-2-30, IEC 60068-2-78)

Compatibilità elettromagnetica

Air discharge
8 kV
Contact discharge
6 kV
Immunity to line-conducted interference
10 V (according to IEC/EN 61000-4-6)

Verifica di progetto

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON EASY E4 EN.pdf 2 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
