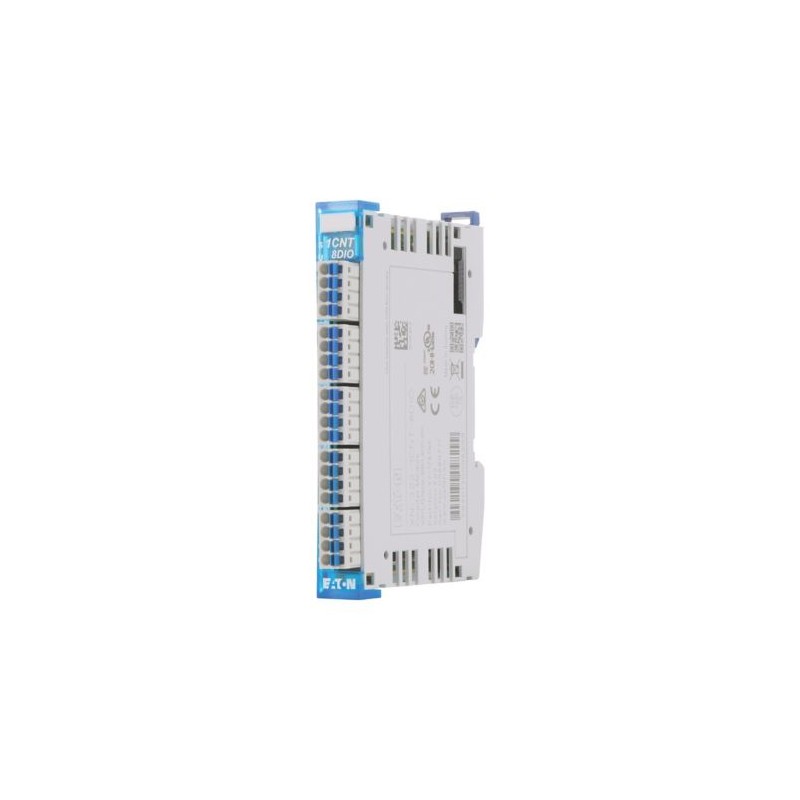

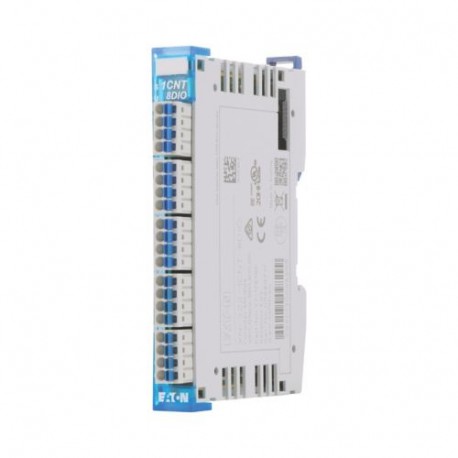

XN-322-1CNT-8DIO 178795 Y7-178795 EATON ELECTRIC Modulo contatore, 4 ingressi digitali +24 V , 4 uscite digi..
XN-322-1CNT-8DIO
178795
Y7-178795
EATON-MOELLER
Modulo contatore, 4 ingressi digitali +24 V , 4 uscite digitali, +24 V/ 2 A, 1 ingresso trasduttore incrementale (RS422 o TTL) fino a 125 kHz, 16 bit
Modulo XN300 4 Ingressi Digitali + 4 Uscite Digitali 2A + 1 Ingresso
Eaton XN-322 Counter module, 4 digital inputs +24 V , 4 digital outputs, +24 V/ 2A, 1 incremental encoder input (RS422 or TTL) up to 125 kHz, 16 bits
Modulo contatore con ingressi RS422/TTL per frequenze fino a 125 kHz e 4 ingressi digitali e 4 uscite digitali da 2 A. Questi moduli sono particolarmente utili per la lettura dei valori dei contatori utilizzati nelle applicazioni di posizionamento.
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – modulo funzionale/tecnologico
Moduli I / O remoti XN300
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XN-322 Counter module
Catalog Number
178795
EAN
7640130098299
Product Length/Depth
104.2 mm
Product Height
16.8 mm
Product Width
80.3 mm
Product Weight
0.061 kg
Certifications
IEC/EN 61131-2
UL File No.: E135462
IEC/EN 61000-6-4
CE
CULus
IEC/EN 61000-6-2
UL File No.: E135462
IEC/EN 61000-6-4
CE
CULus
IEC/EN 61000-6-2
Model Code
XN-322-1CNT-8DIO
Features & Functions
Features
Fieldbus connection over separate bus coupler possible
Flux controller possible
Flux controller possible
Functions
Single-axis positioning possible
X4 signal analysis
X1 signal analysis
Electronic positioning available
TTL Operating mode
X2 signal analysis
RS422 Operating mode
Frequency measurement
Single-axis controller possible
X4 signal analysis
X1 signal analysis
Electronic positioning available
TTL Operating mode
X2 signal analysis
RS422 Operating mode
Frequency measurement
Single-axis controller possible
General
Counter frequency
500 kHz max. (X4 encoding), Operating Mode TTL
500 kHz max. (X4 encoding), Operating Mode RS422
500 kHz max. (X4 encoding), Operating Mode RS422
Current consumption
None mA (typ.), for +24 V, Power supply - Input
40 mA (typ.), for +5 V power supply (internal), Power supply - Input
40 mA (typ.), for +5 V power supply (internal), Power supply - Input
Degree of protection
IP20
NEMA 1
NEMA 1
Input frequency
125 kHz
Mounting method
Rail mounting possible
Number of channels
4
Overvoltage category
III
Pollution degree
3
Product category
XN-322 counter module
Resolution
16 Bit (Functions)
Suitable for
Incremental data detection
Counting
flux measurement
Counting
flux measurement
Type
XN300 technology module
Used with
XN300
XN-312-…
XN-312-…
Voltage type
DC
Ambient conditions, mechanical
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting method
Rail mounting possible
Shock resistance
15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
0 - 95 % (non-condensing)
Electro magnetic compatibility
Air discharge
8 kV/4 kV, Air/contact discharge, ESD
Burst impulse
1 kV, Signal cable
2 kV, Supply cable
2 kV, Supply cable
Electromagnetic fields
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Emitted interference
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
Radiated RFI
10 V
Surge rating
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
1 kV, Signal cable, unbalanced, EMC
1 kV, Signal cable, unbalanced, EMC
Voltage dips
Voltage dips: 10 ms/Voltage fluctuations: Yes
Terminal capacities
Terminal capacity
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
24 - 16 AWG
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.2 - 1.5 mm², solid, H07V-U
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
24 - 16 AWG
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.2 - 1.5 mm², solid, H07V-U
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
10 mm
Insulating material group
I
Electrical rating
Rated control supply voltage
5 V (Sensor/transmitter supply)
Rated operational voltage
160 V (terminations)
24 V (for incremental encoder)
24 V (for digital outputs)
24 V (for incremental encoder)
24 V (for digital outputs)
Short-circuit protection
Yes, Short-circuit rating, Digital outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
18 VDC
Supply voltage at DC - max
30 VDC
Communication
Connection
Push-in spring-cage terminal (plug-in connection) in TOP direction
Protocol
Other bus systems
Input/Output
Delay time
< 200 µs, Digital outputs, Delay on signal change and resistive load, from High to Low signal
< 200 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
< 200 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
Incremental encoder
Heat dissipation (per active channel): 1.105 W
Must be wired using a screened cable. For RS422 encoders use a screened twisted-pair cable. Shielding must be terminated as close as possible to the module (upstream).
Channels: 1
Signals RS422: A, /A, B, /B, R, /R
Signals Bus termination resistor: 120 Ω (internal)
Signals TTL: A, B, R
Signals Bus termination resistor: 1200 Ω (internal pull-up resistor)
Must be wired using a screened cable. For RS422 encoders use a screened twisted-pair cable. Shielding must be terminated as close as possible to the module (upstream).
Channels: 1
Signals RS422: A, /A, B, /B, R, /R
Signals Bus termination resistor: 120 Ω (internal)
Signals TTL: A, B, R
Signals Bus termination resistor: 1200 Ω (internal pull-up resistor)
Input current
≥ 2.3 mA (Digital inputs, high level)
3.7 mA (Digital inputs)
≤ 1.1 mA (Digital inputs, low level)
3.7 mA (Digital inputs)
≤ 1.1 mA (Digital inputs, low level)
Input delay
10 µs (falling edge)
10 µs (rising edge)
10 µs (rising edge)
Input voltage
0 - 8 V (Digital inputs, low level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
Load current
Not specified by plug manufacturer
Load resistance
> 12 Ω
Output
Protective devices must be installed directly at the inductive load in order to prevent interference.
Output current
< 0.5 mA (low level)
2 A
≤ 2000 mA (high level, Digital outputs)
2 A
≤ 2000 mA (high level, Digital outputs)
Output voltage
< 1 V DC (Low level, digital outputs)
< 24 V DC (High level, digital outputs)
24 V DC (digital outputs)
< 24 V DC (High level, digital outputs)
24 V DC (digital outputs)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between Digital inputs: no
Digital inputs, Input delay: no
Power supply, Input: no
Between Digital outputs: no
Sensor/transmitter supply: no
Digital inputs, Input delay: no
Power supply, Input: no
Between Digital outputs: no
Sensor/transmitter supply: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
3.516 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione AC 50 Hz (EF007532) | 0 V |
| tensione di alimentazione AC 60 Hz (EF007533) | 0 V |
| tensione di alimentazione DC (EF007534) | 18 V |
| tipo di tensione di alimentazione (EF002991) | DC |
| numero di funzioni (EF003244) | 0 |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 0 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 0 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW wireless (EF006933) | 0 |
| numero di interfacce HW USB (EF003025) | 0 |
| numero di interfacce HW altre (EF003027) | 1 |
| con interfaccia ottica (EF003028) | No |
| supporta il protocollo per EtherCAT (EF017564) | No |
| supporta il protocollo per TCP/IP (EF003050) | No |
| supporta il protocollo per PROFIBUS (EF003052) | No |
| supporta il protocollo per CAN (EF003053) | No |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo per EIB (EF003055) | No |
| supporta il protocollo pour Modbus (EF003057) | No |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | No |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per PROFINET IO (EF007525) | No |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | No |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | Sì |
| standard radio Bluetooth (EF007178) | No |
| standard radio WLAN 802.11 (EF007179) | No |
| standard radio GPRS (EF008523) | No |
| standard radio GSM (EF008524) | No |
| standard radio UMTS (EF008525) | No |
| link IO master (EF007298) | No |
| componenti del sistema (EF004118) | Sì |
| adatto per conteggio (EF003248) | Sì |
| adatto per pesatura (EF003249) | No |
| adatto per regolazione temperatura (EF008344) | No |
| adatto per regolazione saldatura (EF003251) | No |
| adatto per regolazione pressione (EF003252) | No |
| adatto per NC (EF003253) | No |
| adatto per rilevamento percorso (EF003255) | Sì |
| adatto per CNC (EF003256) | No |
| adatto per SSI (EF003254) | No |
| adatto per rilevamento valore incrementale (EF003258) | Sì |
| adatto per rilevamento valore assoluto (EF003259) | No |
| adatto per regolazione portata (EF003260) | Sì |
| adatto per misurazione portata (EF003261) | Sì |
| adatto per controllo contornatura (EF003262) | No |
| adatto per controllo camma (EF003263) | No |
| adatto per sega volante (EF003264) | No |
| adatto per regolazione multiasse (EF003265) | No |
| adatto per regolazione monoasse (EF003266) | Sì |
| adatto per posizionamento multiasse (EF003267) | No |
| adatto per posizionamento monoasse (EF003268) | Sì |
| blocco funzionale blocco del riavvio (EF007212) | No |
| blocco funzionale del reset automatico (EF007208) | No |
| blocco funzionale per controllo del contattore (EF007467) | No |
| blocco funzionale arresto d'emergenza (EF007211) | No |
| blocco funzionale di dispositivi di protezione attivi senza contatto (EF007209) | No |
| blocco funzionale tasto di consenso (EF007214) | No |
| blocco funzionale circuito a due mani (EF007215) | No |
| blocco funzionale di selezione del modo di funzionamento (EF007210) | No |
| blocco funzionale di controllo d'accesso (EF007213) | No |
| grado di protezione (IP) (EF005474) | IP20 |
| indice di protezione (NEMA) (EF011959) | 1 |
| collegamento bus di campo tramite accoppiatore separato possibile (EF004002) | Sì |
| misurazione di frequenza (EF000599) | Sì |
| montaggio su guida portante possibile (EF003972) | Sì |
| montaggio a parete/diretto possibile (EF007020) | No |
| montaggio frontale possibile (EF007016) | No |
| montaggio su rack possibile (EF007018) | No |
| adatto per funzioni di sicurezza (EF001597) | No |
| SIL secondo IEC 61508 (EF009889) | senza |
| livello di performance secondo EN ISO 13849-1 (EF007399) | senza |
| risorsa corrispondente (Ex ia) (EF004141) | No |
| risorsa corrispondente (Ex ib) (EF004142) | No |
| categoria di protezione antideflagrante per gas (EF003997) | senza |
| categoria di protezione antideflagrante per polvere (EF003998) | senza |
| certificato per area pericolosa UL classe I (EF017622) | No |
| certificato per area pericolosa UL classe II (EF017625) | No |
| certificato per area pericolosa UL classe III (EF017627) | No |
| certificato per area pericolosa UL divisione 1 (EF017628) | No |
| certificato per area pericolosa UL divisione 2 (EF017629) | No |
| certificato per area pericolosa UL gruppo A (acetilene) (EF017632) | No |
| certificato per area pericolosa UL gruppo B (idrogeno) (EF017633) | No |
| certificato per area pericolosa UL gruppo C (etilene) (EF017635) | No |
| certificato per area pericolosa UL gruppo D (propano) (EF017636) | No |
| certificato per area pericolosa UL gruppo E (polvere metallica) (EF017637) | No |
| certificato per area pericolosa UL gruppo F (polvere carboniosa) (EF017638) | No |
| certificato per area pericolosa UL gruppo G (polvere non conduttiva) (EF017639) | No |
| larghezza (EF000008) | 80.3 mm |
| altezza (EF000040) | 16.8 mm |
| profondità (EF000049) | 104.2 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XN-322-1CNT-8DIO Y7-178795 178795 ES_178779.pdf | 3 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
