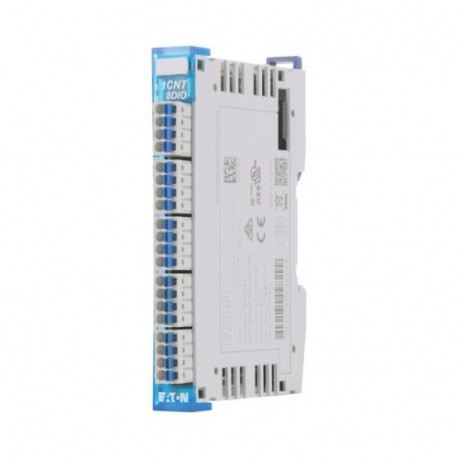

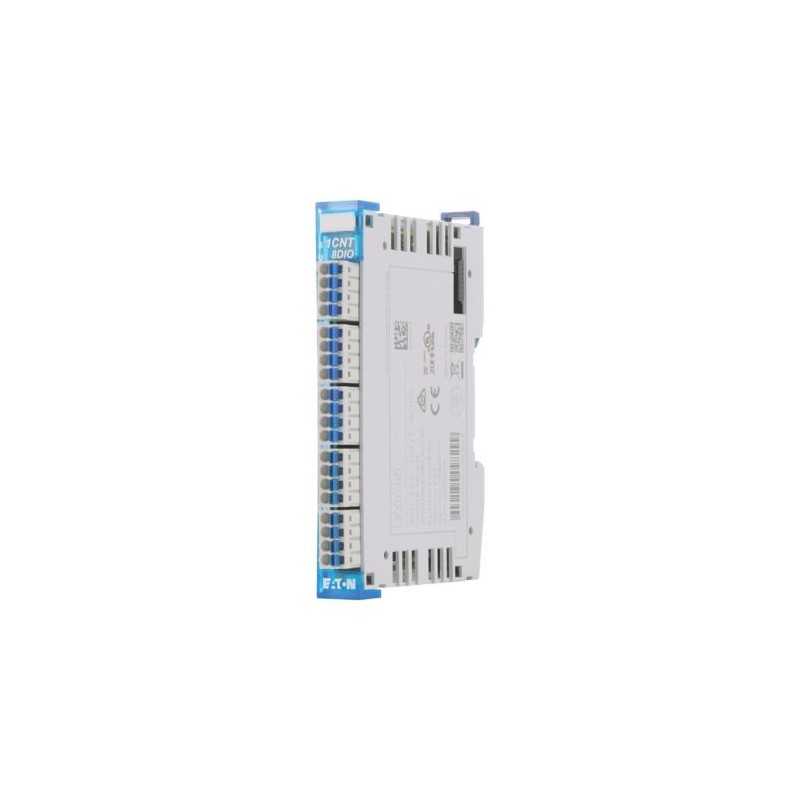

XN-322-1CNT-8DIO 178795 Y7-178795 EATON ELECTRIC Counter module, 4 digital inputs +24 V , 4 digital outputs,..
XN-322-1CNT-8DIO
178795
Y7-178795
EATON-MOELLER
Counter module, 4 digital inputs +24 V , 4 digital outputs, +24 V/ 2A, 1 incremental encoder input (RS422 or TTL) up to 125 kHz, 16 bits
XN-322-1CNT-8DIO
Counter module with RS422/TTL inputs for frequencies of up to 125 kHz and 4 digital inputs and 4 digital outputs with 2 A. These modules are particularly useful for reading counter values used in positioning applications.
PLC's > Fieldbus, decentr. periphery - function-/technology module
Remote I / O Modules XN300
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton XN-322 Counter module
Catalog Number
178795
Model Code
XN-322-1CNT-8DIO
EAN
7640130098299
Product Length/Depth
104.2 mm
Product Height
16.8 mm
Product Width
80.3 mm
Product Weight
0.061 kg
Certifications
IEC/EN 61131-2
UL File No.: E135462
IEC/EN 61000-6-4
CE
CULus
IEC/EN 61000-6-2
UL File No.: E135462
IEC/EN 61000-6-4
CE
CULus
IEC/EN 61000-6-2
Features & Functions
Features
Fieldbus connection over separate bus coupler possible
Flux controller possible
Flux controller possible
Functions
Single-axis positioning possible
X4 signal analysis
X1 signal analysis
Electronic positioning available
TTL Operating mode
X2 signal analysis
RS422 Operating mode
Frequency measurement
Single-axis controller possible
X4 signal analysis
X1 signal analysis
Electronic positioning available
TTL Operating mode
X2 signal analysis
RS422 Operating mode
Frequency measurement
Single-axis controller possible
General
Counter frequency
500 kHz max. (X4 encoding), Operating Mode TTL
500 kHz max. (X4 encoding), Operating Mode RS422
500 kHz max. (X4 encoding), Operating Mode RS422
Current consumption
None mA (typ.), for +24 V, Power supply - Input
40 mA (typ.), for +5 V power supply (internal), Power supply - Input
40 mA (typ.), for +5 V power supply (internal), Power supply - Input
Degree of protection
IP20
NEMA 1
NEMA 1
Input frequency
125 kHz
Mounting method
Rail mounting possible
Number of channels
4
Overvoltage category
III
Pollution degree
3
Product category
XN-322 counter module
Resolution
16 Bit (Functions)
Suitable for
Incremental data detection
Counting
flux measurement
Counting
flux measurement
Type
XN300 technology module
Used with
XN300
XN-312-…
XN-312-…
Voltage type
DC
Ambient conditions, mechanical
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
Horizontal
Shock resistance
15 g, Mechanical, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance
5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
85 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
0 - 95 % (non-condensing)
Electro magnetic compatibility
Air discharge
8 kV/4 kV, Air/contact discharge, ESD
Burst impulse
1 kV, Signal cable
2 kV, Supply cable
2 kV, Supply cable
Electromagnetic fields
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Emitted interference
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
Radiated RFI
10 V
Surge rating
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
1 kV, Signal cable, unbalanced, EMC
1 kV, Signal cable, unbalanced, EMC
Voltage dips
Voltage dips: 10 ms/Voltage fluctuations: Yes
Terminal capacities
Terminal capacity
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
24 - 16 AWG
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.2 - 1.5 mm², solid, H07V-U
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
24 - 16 AWG
0.2 - 1.5 mm², flexible without ferrule, H07V-K
0.2 - 1.5 mm², solid, H07V-U
Gauge pin
A1 (according to IEC/EN 60947-1)
Stripping length (main cable)
10 mm
Insulating material group
I
Electrical rating
Rated control supply voltage
5 V (Sensor/transmitter supply)
Rated operational voltage
160 V (terminations)
24 V (for incremental encoder)
24 V (for digital outputs)
24 V (for incremental encoder)
24 V (for digital outputs)
Short-circuit protection
Yes, Short-circuit rating, Digital outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
18 VDC
Supply voltage at DC - max
30 VDC
Communication
Connection
Push-in spring-cage terminal (plug-in connection) in TOP direction
Protocol
Other bus systems
Input/Output
Delay time
< 200 µs, Digital outputs, Delay on signal change and resistive load, from High to Low signal
< 200 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
< 200 µs, Digital outputs, Delay on signal change and resistive load, from Low to High signal
Incremental encoder
Heat dissipation (per active channel): 1.105 W
Must be wired using a screened cable. For RS422 encoders use a screened twisted-pair cable. Shielding must be terminated as close as possible to the module (upstream).
Channels: 1
Signals RS422: A, /A, B, /B, R, /R
Signals Bus termination resistor: 120 Ω (internal)
Signals TTL: A, B, R
Signals Bus termination resistor: 1200 Ω (internal pull-up resistor)
Must be wired using a screened cable. For RS422 encoders use a screened twisted-pair cable. Shielding must be terminated as close as possible to the module (upstream).
Channels: 1
Signals RS422: A, /A, B, /B, R, /R
Signals Bus termination resistor: 120 Ω (internal)
Signals TTL: A, B, R
Signals Bus termination resistor: 1200 Ω (internal pull-up resistor)
Input current
≥ 2.3 mA (Digital inputs, high level)
3.7 mA (Digital inputs)
≤ 1.1 mA (Digital inputs, low level)
3.7 mA (Digital inputs)
≤ 1.1 mA (Digital inputs, low level)
Input delay
10 µs (falling edge)
10 µs (rising edge)
10 µs (rising edge)
Input voltage
0 - 8 V (Digital inputs, low level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
24 V DC (Digital inputs)
14 - 30 V (Digital inputs, high level)
Load current
Not specified by plug manufacturer
Load resistance
> 12 Ω
Output
Protective devices must be installed directly at the inductive load in order to prevent interference.
Output current
< 0.5 mA (low level)
2 A
≤ 2000 mA (high level, Digital outputs)
2 A
≤ 2000 mA (high level, Digital outputs)
Output voltage
< 1 V DC (Low level, digital outputs)
< 24 V DC (High level, digital outputs)
24 V DC (digital outputs)
< 24 V DC (High level, digital outputs)
24 V DC (digital outputs)
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Between Digital inputs: no
Digital inputs, Input delay: no
Power supply, Input: no
Between Digital outputs: no
Sensor/transmitter supply: no
Digital inputs, Input delay: no
Power supply, Input: no
Between Digital outputs: no
Sensor/transmitter supply: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
3.516 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of functions (EF003244) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Suitable for counting (EF003248) | Yes |
| Suitable for weighing (EF003249) | No |
| Suitable for temperature control (EF008344) | No |
| Suitable for welding control (EF003251) | No |
| Suitable for pressure control (EF003252) | No |
| Suitable for NC (EF003253) | No |
| Suitable for electronic positioning (EF003255) | Yes |
| Suitable for CNC (EF003256) | No |
| Suitable for SSI (EF003254) | No |
| Suitable for incremental data detection (EF003258) | Yes |
| Suitable for detection absolute value (EF003259) | No |
| Suitable for flux controller (EF003260) | Yes |
| Suitable for flux measurement (EF003261) | Yes |
| Suitable for path controller (EF003262) | No |
| Suitable for cam controller (EF003263) | No |
| Suitable for flying saw (EF003264) | No |
| Suitable for multi-axis control (EF003265) | No |
| Suitable for single-axis controller (EF003266) | Yes |
| Suitable for multi-axis positioning (EF003267) | No |
| Suitable for single-axis positioning (EF003268) | Yes |
| Function block restart blockage (EF007212) | No |
| Function block automatic reset (EF007208) | No |
| Contactor control function block (EF007467) | No |
| Function block emergency stop (EF007211) | No |
| Function block contactless working protection installation (EF007209) | No |
| Function block affirm push button (EF007214) | No |
| Function block 2-hand switching (EF007215) | No |
| Function block operating mode selection (EF007210) | No |
| Function block access control (EF007213) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Frequency measurement (EF000599) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Width (EF000008) | 80.3 mm |
| Height (EF000040) | 16.8 mm |
| Depth (EF000049) | 104.2 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XN-322-1CNT-8DIO Y7-178795 178795 ES_178779.pdf | 3 Mbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
