Visualizza ingrandito

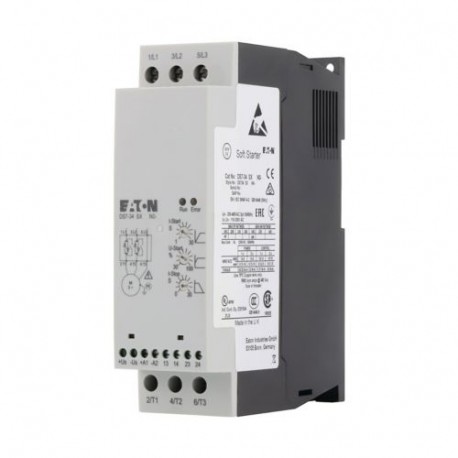

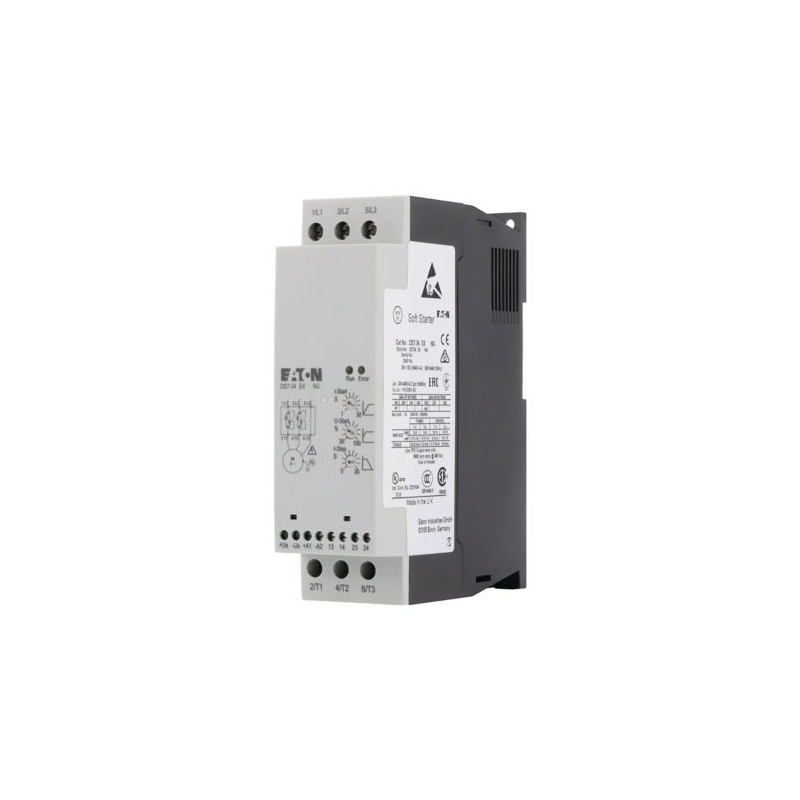

DS7-340SX032N0-N 134914 Y7-134914 EATON ELECTRIC Softstarter, 3p, 32A, 200-480VAC, Us 24VAC/DC
DS7-340SX032N0-N
134914
Y7-134914
EATON-MOELLER
Softstarter, 3p, 32A, 200-480VAC, Us=24VAC/DC
DS7 Soft Starter 32A 200-480V AC us=24V AC/DC
Eaton DS7 Soft starter, 32 A, 200 - 480 V AC, Us= 24 V AC/DC, Frame size FS2
Soft starter, Descrizione: Con contatti di derivazione interni, Funzione: Soft starter per carichi trifase, Tensione di alimentazione (50/60 Hz): ULN= 200 - 480 V AC, Tensione di alimentazione: Us= 24 V AC/DC, Tensione di controllo: UC= 24 V AC, 24 V DC, Potenza nominale assegnata al motore (standard, collegamento in linea) a 400 V, 50 Hz: P= 15 kW, a 460 V, 60 Hz: P= 25 HP, Corrente nominale di esercizio AC-53: Ie= 32 A, Tensione nominale di esercizio: Ue= 200 V, 230 V, 400 V, 480 V, Collegamento SmartWire-DT: no, Dimensioni del telaio: FS2, Norme: IEC/EN 60947-4-2, UL 508, CSA22.2-14
Apparecchi elettrici a bassa tensione > starter progressivo
Soft Starter standard
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton DS7 Soft starter
Catalog Number
134914
EAN
4015081316991
Product Length/Depth
118 mm
Product Height
150 mm
Product Width
45 mm
Product Weight
0.4 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 0-M91
CSA Std. C22.2 No. 14-05
IEC 60947-4-2
EN 60947-4-2
C-Tick
CSA22.2-14
UL File No.: E251034
CSA File No.: 2511305
CSA-C22.2 No 14-05
UL
UkrSEPRO
GB 14048.6
CE
CSA-C22.2 No 0-M91
CSA
IEC/EN 60947-4-2
CSA Class No.: 321106
CSA Std. C22.2 No. 0-M91
CSA Std. C22.2 No. 14-05
IEC 60947-4-2
EN 60947-4-2
C-Tick
CSA22.2-14
UL File No.: E251034
CSA File No.: 2511305
CSA-C22.2 No 14-05
UL
UkrSEPRO
GB 14048.6
CE
CSA-C22.2 No 0-M91
CSA
IEC/EN 60947-4-2
CSA Class No.: 321106
Model Code
DS7-340SX032N0-N
Modelli & caratteristiche
Fitted with:
Internal bypass
Internal bypass contacts
Internal bypass contacts
Functions
Potential isolation between power and control sections
Suppression of DC components for motors
Soft start function
Single direction
Suppression of closing transients
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of DC components for motors
Soft start function
Single direction
Suppression of closing transients
Min. ramp time 1 s - fast switching (semiconductor contactor)
Informazioni generali
Class
Other
Connection to SmartWire-DT
No
Degree of protection
NEMA 1
IP20
IP20
Frame size
FS2
Mains voltage - max
480 V
Mains voltage - min
200 V
Overvoltage category
II
Pollution degree
2
Radio interference class
Class B (EN 55011)
Suitable for
Branch circuits, (UL/CSA)
Type
Soft starter for three-phase loads
Voltage type
AC/DC
Condizioni meccaniche ambientali
Mounting position
Vertical
Shock resistance
8 g, 11 ms, Mechanical
Vibration resistance
2M2 to EN 60721-3-2
Condizioni ambientali e climatiche
Altitude
Above 1000 m with 1 % derating per 100 m
Max. 2000 m
Max. 2000 m
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Parti conduttive principali
Overload cycle
AC-53a: 3 - 5: 75 - 10
Rated operational current (Ie) at AC-53
32 A
Rated operational voltage (Ue) - max
480 V
Rated operational voltage (Ue) - min
230 V
Short-circuit protection rating
3 x 170M1366, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths
PKM0-32 (+ CL-PKZ0), Type “1” coordination, Main conducting paths
PKM0-32 (+ CL-PKZ0), Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
480 V
Potenza nominale d'impiego (Motore)
Assigned motor power at 200/208 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
25 HP
Rated operational power at 220/230 V, 50 Hz
7.5 kW
Rated operational power at 400 V, 50 Hz
15 kW
Sezioni di collegamento
Terminal capacity (flexible with ferrule)
2 x (0.5 - 0.75) mm², Control circuit cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
Terminal capacity (solid)
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
Terminal capacity (solid/stranded AWG)
1 x (21 - 14), Control circuit cables
2 x (21 - 18), Control circuit cables
18 - 6, Main cables
2 x (21 - 18), Control circuit cables
18 - 6, Main cables
Terminal capacity (stranded)
1 x (0.5 - 1.5) mm², Control circuit cables
1 x 16 mm², Main cables
2 x (0.5 - 1.0) mm², Control circuit cables
1 x 16 mm², Main cables
2 x (0.5 - 1.0) mm², Control circuit cables
Screwdriver size
PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver
0.6 x 3.5 mm, Terminal screws, Control circuit cables
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Tightening torque
3.2 Nm
1.2 Nm, Screw terminals, Control circuit cables
1.2 Nm, Screw terminals, Control circuit cables
Circuito di comando
Current consumption
50 mA, Control circuit, Regulator supply
1.6 mA, Control circuit, Digital inputs, External 24 V
1.6 mA, Control circuit, Digital inputs, External 24 V
Drop-out time
350 ms, Control circuit, Digital Inputs, DC operated
Drop-out voltage
AC operated: 0 - 3 V, AC operated
0 - 3 V, DC operated
0 - 3 V, DC operated
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
24 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Ingresso/uscita
Number of outputs
2 Relay Outputs (TOR, Ready)
Output voltage
250 V AC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V AC
24 V DC
24 V DC (-15 %/+10 %)
24 V AC (-15 %/+10 %)
24 V DC
24 V DC (-15 %/+10 %)
24 V AC (-15 %/+10 %)
Rated operational current (Ie) at AC-11
1 A
Funzione soft start
Application
Delay time
0 - 30 s, Soft start function, Ramp times
Ramp/run-up time
1 - 30 s
Start voltage
Min. 30 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
1.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| corrente d'esercizio nominale Ie a 40°C Tu (EF007039) | 32 A |
| tensione d'esercizio nominale Ue (EF002418) | 230 V |
| potenza nominale motore trifase, circuito standard, a 230 V (EF007053) | 7.5 kW |
| potenza nominale motore trifase, circuito standard, a 400 V (EF007054) | 15 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 230 V (EF007055) | 0 kW |
| potenza nominale motore trifase, circuito a radice di 3, a 400 V (EF007056) | 0 kW |
| funzione (EF000030) | senso di rotazione unico |
| cavallottamento interno (EF009214) | Sì |
| con display (EF000458) | No |
| controllo della coppia (EF009215) | No |
| temperatura ambiente nominale senza derating (EF007074) | 40 °C |
| tensione di alimentazione pilota nominale AC 50 Hz (EF003978) | 24 V |
| tensione di alimentazione pilota nominale AC 60 Hz (EF003979) | 24 V |
| tensione di alimentazione pilota nominale DC (EF003980) | 24 V |
| tipo di tensione per l'azionamento (EF008242) | AC/DC |
| protezione integrata contro il sovraccarico del motore (EF007297) | No |
| classe di intervento (EF006668) | altro |
| grado di protezione (IP) (EF005474) | IP20 |
| indice di protezione (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
