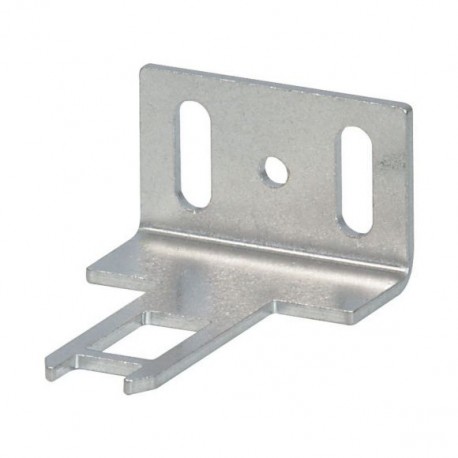

LS-XW-ZBZ 106839 EATON ELECTRIC Azionamento, a gomito
LS-XW-ZBZ
106839
EATON-MOELLER
10
Azionamento, a gomito
Attuatore a gomito
Eaton Moeller® series LS Actuator, angled
sensori > Attuatore per interruttore di posizione con attuatore separato
Interruttori di posizione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series LS Actuator
Catalog Number
106839
EAN
4015081065998
Product Length/Depth
33 mm
Product Height
15 mm
Product Width
35 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 14
UL 508
CSA-C22.2 No. 14
IEC/EN 60947
CSA Class No.: 3211-03
CSA
CE
CSA File No.: 012528
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
IEC 60947-5
CSA Std. C22.2 No. 14
UL 508
CSA-C22.2 No. 14
IEC/EN 60947
CSA Class No.: 3211-03
CSA
CE
CSA File No.: 012528
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
Model Code
LS-XW-ZBZ
Specifiche del prodotto
Type
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating frequency
800 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Rated impulse withstand voltage (Uimp)
4000 V AC
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated insulation voltage (Ui)
400 V
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Functions
For combination with LS-...ZBZ/X basic devices
Mounting position
As required
Material
Stainless steel
Overvoltage category
III
Duty factor
100 %
Voltage tolerance
0.85 x Us, Pick-up and drop-out values
1.1 x Us, Pick-up and drop-out values
1.1 x Us, Pick-up and drop-out values
Repetition accuracy
0.02 mm (Contacts/switching capacity)
Shock resistance
10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
Mechanical holding force
1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG)
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
1200 N (according to GS-ET-19 (04/2004), XNW)
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
1200 N (according to GS-ET-19 (04/2004), XNW)
Supply frequency
Max. 400 Hz, Contacts
Model
Actuator with vertical mounting
Power consumption
8 VA at 120 V AC (electromechanical actuation)
8 W at 24 V DC (electromechanical actuation)
8 W at 24 V DC (electromechanical actuation)
Rated operational current (Ie)
3 A at 24 V
6 A at AC-15, 220 V 230 V 240 V
0.8 A at 110 V
4 A at AC-15, 380 V 400 V 415 V
6 A at AC-15, 24 V
0.3 A at 220 V
6 A at AC-15, 220 V 230 V 240 V
0.8 A at 110 V
4 A at AC-15, 380 V 400 V 415 V
6 A at AC-15, 24 V
0.3 A at 220 V
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Terminal capacity (flexible with ferrule)
2 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²
