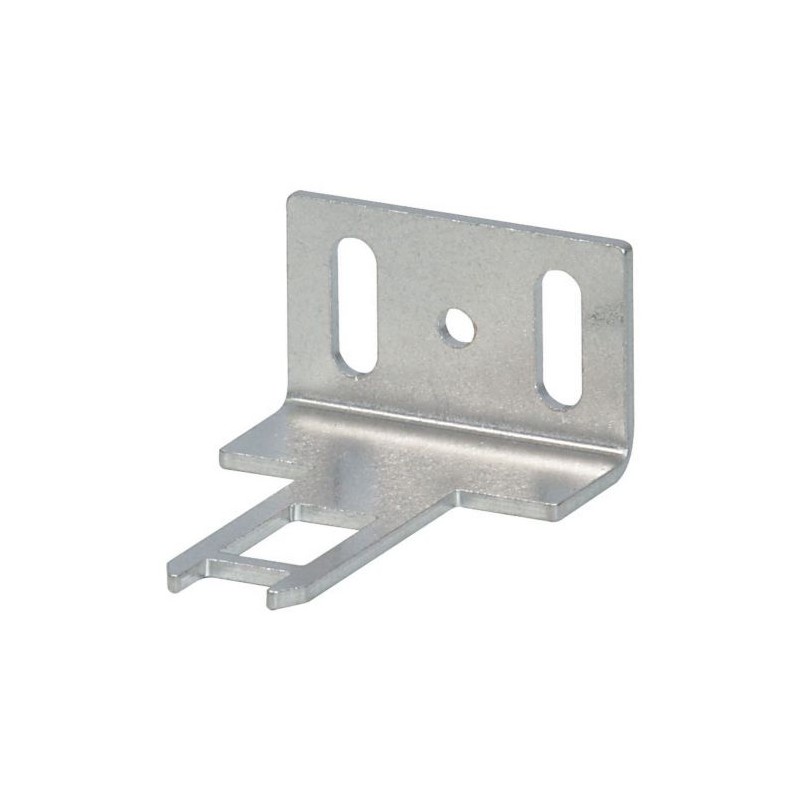

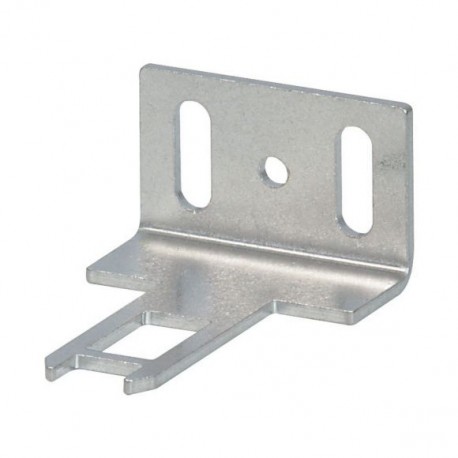

LS-XW-ZBZ 106839 Y7-106839 EATON ELECTRIC Clé d'actionnement, coudée Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

LS-XW-ZBZ 106839 Y7-106839 EATON ELECTRIC Clé d'actionnement, coudée

LS-XW-ZBZ

106839

Y7-106839

EATON-MOELLER

Clé d'actionnement, coudée

LS-XW-ZBZ

Eaton Moeller® series LS Actuator, angled

Actionneur, Fonction de base : actionneurs, Référence du groupe de pièces : LS... ZBZ/X, Fonction : Actionneur coudé, Court, Acier inoxydable, À utiliser avec : Pour les portes battantes de plus de 350 mm de largeur

Plus de détails


Détecteurs > Actionneur pour commutateur de position avec actionneur séparé

Interrupteurs de position

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $7.76
Prix unitaire: $7.76
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series LS Actuator
Catalog Number
106839
Model Code
LS-XW-ZBZ
EAN
4015081065998
Product Length/Depth
33 mm
Product Height
15 mm
Product Width
35 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 14
UL 508
CSA-C22.2 No. 14
IEC/EN 60947
CSA Class No.: 3211-03
CSA
CE
CSA File No.: 012528
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5
UL

Features & Functions

Functions
For combination with LS-...ZBZ/X basic devices
Material
Stainless steel

General

Duty factor
100 %
Model
Actuator with vertical mounting
Operating frequency
800 Operations/h
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
4000 V AC
Repetition accuracy
0.02 mm (Contacts/switching capacity)
Type

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 1.5) mm²

Electrical rating

Power consumption
8 VA at 120 V AC (electromechanical actuation)
8 W at 24 V DC (electromechanical actuation)
Rated insulation voltage (Ui)
400 V
Rated operational current (Ie)
3 A at 24 V
6 A at AC-15, 220 V 230 V 240 V
0.8 A at 110 V
4 A at AC-15, 380 V 400 V 415 V
6 A at AC-15, 24 V
0.3 A at 220 V
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Supply frequency
Max. 400 Hz, Contacts
Voltage tolerance
0.85 x Us, Pick-up and drop-out values
1.1 x Us, Pick-up and drop-out values

Actuator

Mechanical holding force
1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG)
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
1200 N (according to GS-ET-19 (04/2004), XNW)

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 106839 Détecteurs (EC001487)
Caractéristique Valeur
Modèle (EF000010) Actionneur avec fixation verticale

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LS-XW-ZBZ Y7-106839 106839 FR_106837.pdf 4 Mbytes LS-XW-ZBZ Y7-106839 106839 FR_106837.pdf
