Visualizza ingrandito

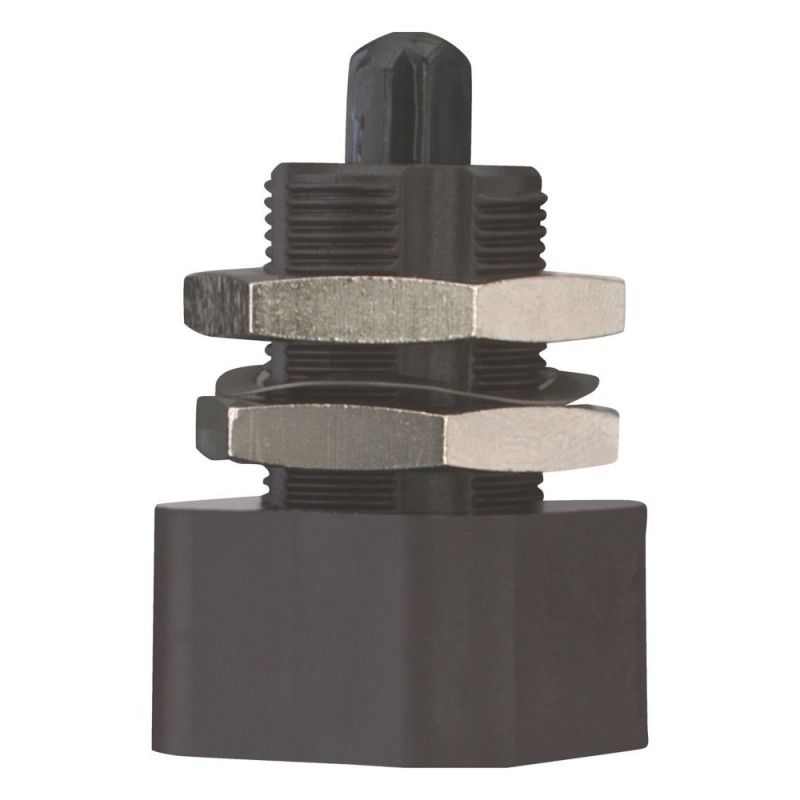

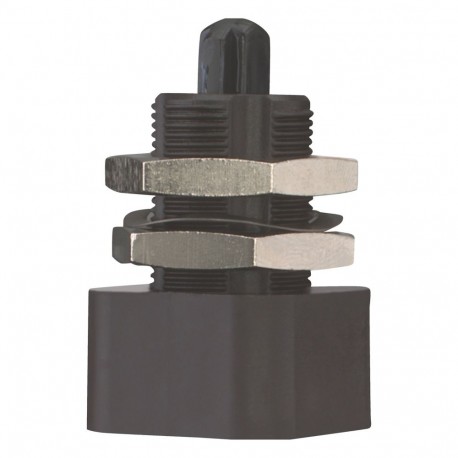

LS-XZS 114024 EATON ELECTRIC Perno con cappa, fissaggio centrale
LS-XZS
114024
EATON-MOELLER
5
Perno con cappa, fissaggio centrale
Testa motrice Plastica Fissaggio centrale a pistone tondo
Eaton Moeller® series LS Rounded plunger, center fixing
sensori > Testa di azionamento per interruttori di posizione / interruttori a cerniera
Interruttori di posizione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series LS Rounded plunger
Catalog Number
114024
EAN
4015081134465
Product Length/Depth
46 mm
Product Height
25 mm
Product Width
25 mm
Product Weight
0.028 kg
Certifications
CSA
CE
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL
UL 508
CSA File No.: 012528
CSA-C22.2 No. 14
UL File No.: E29184
IEC/EN 60947-5
CE
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL
UL 508
CSA File No.: 012528
CSA-C22.2 No. 14
UL File No.: E29184
IEC/EN 60947-5
Model Code
LS-XZS
Specifiche del prodotto
Type
Operating heads
Features
The operating head can be rotated 90° to enable adaptation to the specified approach direction
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Actuator type
Without actuator
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Rounded plunger, centre fixing
Functions
For mounting in enclosure wall or mounting plate drilling M18 x 1
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| LS-XZS LS-XZS 114024 ES_106790.pdf | 2 Mbytes |
 |
