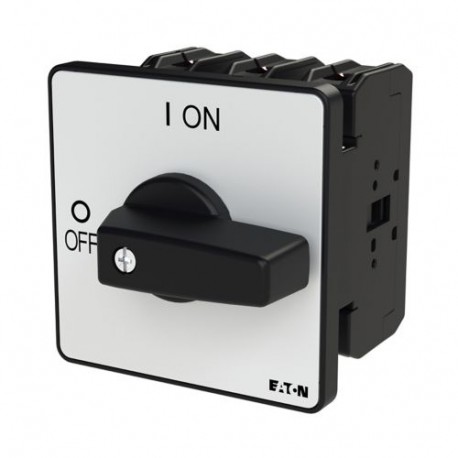

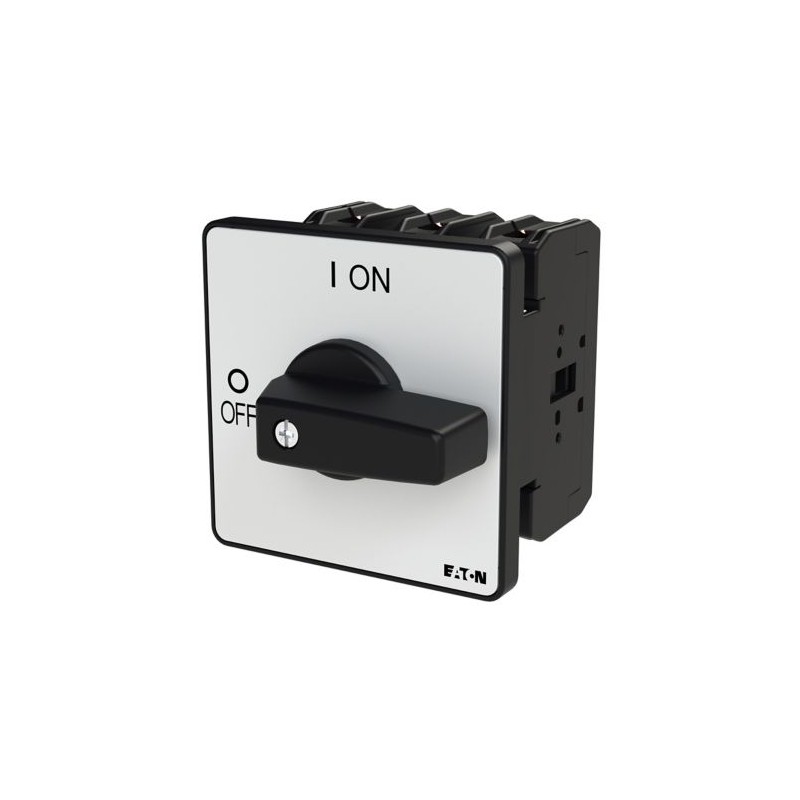

P3-100/E 067201 Y7-67201 EATON ELECTRIC Interruptor seccionador ON-OFF 3 polos 100 A Montaje Empotrado
P3-100/E
067201
Y7-67201
EATON-MOELLER
Interruptor seccionador ON-OFF, 3 polos, 100 A, Montaje Empotrado
Eaton Moeller® series P3 On-Off switch, P3, 100 A, flush mounting, 3 pole, with black thumb grip and front plate
Interruptor de encendido y apagado, Gama de productos: Interruptor de encendido y apagado, Referencia del grupo de piezas: P3, con empuñadura de pulgar negra y placa frontal, Información sobre el equipo suministrado: Contacto auxiliar o conductor neutro instalado por el usuario., 3 polos, Grado de protección: Frontal IP65, Diseño: empotrado, Potencia del motor AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Corriente nominal ininterrumpida: Iu = 100 A, Normas: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Interruptor-seccionador según IEC/EN 60947-3
Componentes industriales de baja tensión > Seccionador
Interruptores Seccionadores y de Levas
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
| Product Name | Eaton Moeller® series P3 On-off switch |
| Catalog Number | 067201 |
| EAN | 4015080672012 |
| Product Length/Depth | 100 mm |
| Product Height | 90 mm |
| Product Width | 90 mm |
| Product Weight | 0.33 kg |
| Certifications | CSA File No.: 012528 CSA Class No.: 3211-05 UL Category Control No.: NLRV VDE 0660 UL 60947-4-1 IEC/EN 60947 CSA UL File No.: E36332 IEC/EN 60947-3 UL CSA-C22.2 No. 94 IEC/EN 60204 CE CSA-C22.2 No. 60947-4-1-14 |
| Catalog Notes | Rated Short-time Withstand Current (Icw) for a time of 1 second |
| Model Code | P3-100/E |
Features & Functions
| Fitted with: | Black thumb grip and front plate |
| Number of poles | 3 |
General information
| Accessories | Auxiliary contact or neutral conductor fitted by user. |
| Degree of protection | NEMA 12 |
| Degree of protection (front side) | IP65 |
| Lifespan, mechanical | 100,000 Operations |
| Mounting method | Flush mounting |
| Mounting position | As required |
| Operating frequency | 1200 Operations/h |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product Category | On-Off switch |
| Product Category | On-Off switch |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Safe isolation | 440 V AC, Between the contacts, According to EN 61140 |
| Safety parameter (EN ISO 13849-1) | B10d values as per EN ISO 13849-1, table C.1 |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms |
| Suitable for | Front mounting 4-hole Branch circuits, suitable as motor disconnect, (UL/CSA) |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
Terminal capacities
| Terminal capacity | 1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228 2 x (2.5 - 10) mm², solid or stranded 14 - 2 AWG, solid or flexible with ferrule 2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228 1 x (2.5 - 35) mm², solid or stranded |
| Screw size | M5, Terminal screw |
| Tightening torque | 26.5 lb-in, Screw terminals 3 Nm, Screw terminals |
Electrical rating
| Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3) | 760 A |
| Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3) | 740 A |
| Rated breaking capacity at 500 V (cos phi to IEC 60947-3) | 880 A |
| Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3) | 520 A |
| Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V | 71 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 71 A |
| Rated operational current (Ie) at AC-3, 500 V | 65 A |
| Rated operational current (Ie) at AC-3, 660 V, 690 V | 23.8 A |
| Rated operational current (Ie) at AC-21, 440 V | 100 A |
| Rated operational current (Ie) at AC-23A, 230 V | 100 A |
| Rated operational current (Ie) at AC-23A, 400 V, 415 V | 100 A |
| Rated operational current (Ie) at AC-23A, 500 V | 96 A |
| Rated operational current (Ie) at AC-23A, 690 V | 68 A |
| Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms | 100 A |
| Rated operational current (Ie) at DC-23A, 24 V | 50 A |
| Rated operational current (Ie) at DC-23A, 48 V | 50 A |
| Rated operational current (Ie) at DC-23A, 60 V | 50 A |
| Rated operational current (Ie) at DC-23A, 120 V | 25 A |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 37 kW |
| Rated operational power at AC-3, 415 V, 50 Hz | 37 kW |
| Rated operational power at AC-3, 500 V, 50 Hz | 45 kW |
| Rated operational power at AC-3, 690 V, 50 Hz | 37 kW |
| Rated operational power at AC-23A, 220/230 V, 50 Hz | 30 kW |
| Rated operational power at AC-23A, 400 V, 50 Hz | 55 kW |
| Rated operational power at AC-23A, 500 V, 50 Hz | 55 kW |
| Rated operational power at AC-23A, 690 V, 50 Hz | 55 kW |
| Rated operational voltage (Ue) at AC - max | 690 V |
| Rated uninterrupted current (Iu) | 100 A |
| Uninterrupted current | Rated uninterrupted current Iu is specified for max. cross-section. |
Short-circuit rating
| Rated conditional short-circuit current (Iq) | 4 kA (Load side) 80 kA (Supply side) |
| Rated short-time withstand current (Icw) | 2 kA |
| Short-circuit current rating (basic rating) | 150A, max. Fuse, SCCR (UL/CSA) 10 kA, SCCR (UL/CSA) |
| Short-circuit protection rating | 100 A gG/gL, Fuse, Contacts |
Switching capacity
| Load rating | 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) |
| Number of contacts in series at DC-23A, 24 V | 1 |
| Number of contacts in series at DC-23A, 48 V | 2 |
| Number of contacts in series at DC-23A, 60 V | 2 |
| Number of contacts in series at DC-23A, 120 V | 3 |
| Switching capacity (main contacts, general use) | 100 A, If used with neutral conductor IU = max. 90 A, Rated uninterrupted current max. (UL/CSA) |
| Switching capacity (auxiliary contacts, general use) | 10A, IU, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) | P600 (UL/CSA) A600 (UL/CSA) |
| Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3) | 950 A |
| Voltage per contact pair in series | 60 V |
Motor rating
| Assigned motor power at 115/120 V, 60 Hz, 1-phase | 5 HP |
| Assigned motor power at 200/208 V, 60 Hz, 1-phase | 10 HP |
| Assigned motor power at 200/208 V, 60 Hz, 3-phase | 20 HP |
| Assigned motor power at 230/240 V, 60 Hz, 1-phase | 15 HP |
| Assigned motor power at 230/240 V, 60 Hz, 3-phase | 25 HP |
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 60 HP |
| Assigned motor power at 575/600 V, 60 Hz, 3-phase | 75 HP |
Contacts
| Control circuit reliability | 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA) |
| Number of auxiliary contacts (change-over contacts) | 0 |
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 0 |
Actuator
| Actuator color | Black |
| Actuator type | Short thumb-grip |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 7.5 W |
| Rated operational current for specified heat dissipation (In) | 100 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | UV resistance only in connection with protective shield. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Característica | Valor |
|---|---|
| Ejecución como interruptor principal (EF006981) | No |
| Ejecución como interruptor de mantenimiento/reparación (EF006986) | No |
| Ejecución como interruptor de seguridad (EF006985) | No |
| Ejecución como dispositivo de parada de emergencia (EF006959) | No |
| Ejecución como conmutador-inversor (EF009408) | No |
| Número de interruptores (EF005586) | 1 |
| Tensión de funcionamiento nominal máxima Ue CA (EF007355) | 690 V |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 100 A |
| Corriente permanente asignada a AC-23, 400 V (EF011777) | 100 A |
| Corriente permanente asignada con AC-21, 400 V (EF009165) | 100 A |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 37 kW |
| Resistencia de corriente nominal de corta duración Icw (EF007050) | 2 kA |
| Potencia de funcionamiento nominal a 400 V CA-23 (EF007027) | 55 kW |
| Poder de corte a 400 V (EF009166) | 55 kW |
| Corriente nominal de cortocircuito condicional Iq (EF001444) | 80 kA |
| Número de polos (EF001391) | 3 |
| Número de contactos auxiliares normalmente cerrados (EF001377) | 0 |
| Número de contactos auxiliares normalmente abiertos (EF001376) | 0 |
| Número de contactos auxiliares como contacto de cambio (EF003531) | 0 |
| Accionamiento motorizado opcional (EF007386) | No |
| Accionamiento motorizado integrado (EF006697) | No |
| Liberación de tensión opcional (EF007491) | No |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Apto para montaje frontal de 4 orificios (EF007247) | Sí |
| Apto para montaje frontal central (EF007248) | No |
| Apto para la instalación del distribuidor (EF007262) | No |
| Apto para montaje intermedio (EF007264) | No |
| Color del elemento de accionamiento (EF007167) | Negro |
| Ejecución del elemento accionador (EF006976) | Mango giratorio corto |
| Interbloqueable (EF006281) | No |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Con cableado premontado (EF016444) | No |
| Grado de protección (IP), frontal (EF003118) | IP65 |
| Grado de protección (NEMA) (EF011959) | 12 |
| Anchura (EF000008) | 90 mm |
| Altura (EF000040) | 90 mm |
| Profundidad (EF000049) | 100 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf | 9 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P3-100/E Y7-67201 067201 ES_067201.pdf | 83 Kbytes |
|
