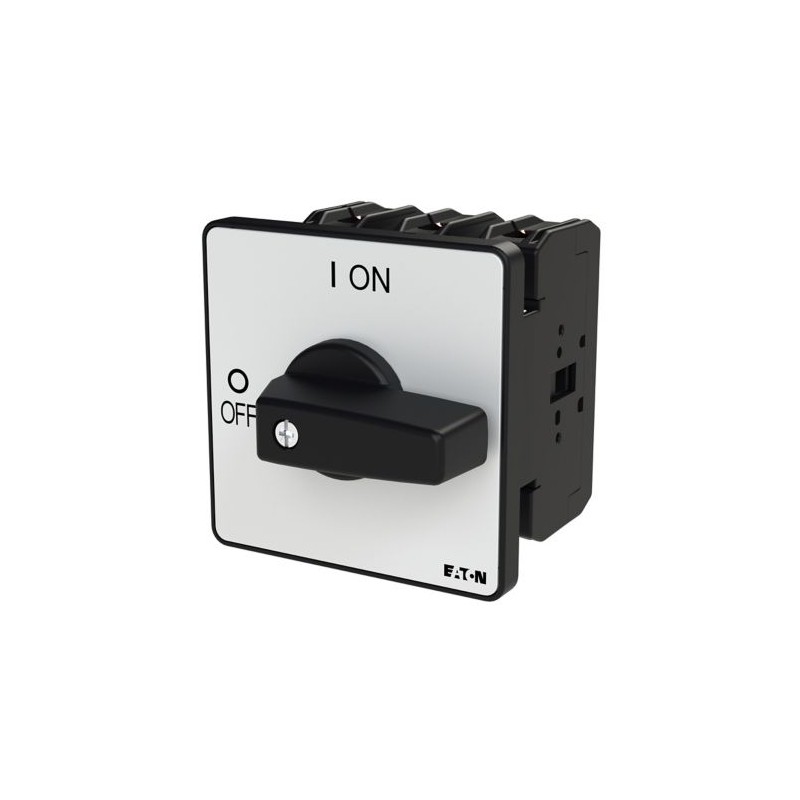

P3-100/E 067201 Y7-67201 EATON ELECTRIC interruptor construído-break 100A 3p
P3-100/E
067201
Y7-67201
EATON-MOELLER

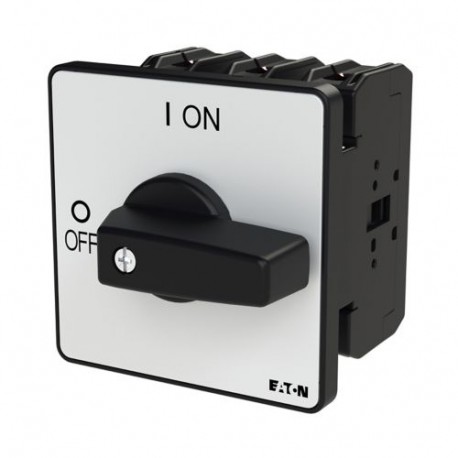

interruptor construído-break 100A 3p
Interruptor seccionador de 3 polos ON-OFF 100 A Flush Mount
Eaton Moeller® series P3 On-Off switch, P3, 100 A, flush mounting, 3 pole, with black thumb grip and front plate
Interruptor de ligar e desligar, Gama de produtos: Interruptor de ligar e desligar, Referência do grupo de peças: P3, com punho de polegar preto e placa frontal, Informações sobre o equipamento fornecido: Contacto auxiliar ou condutor neutro instalado pelo utilizador., 3 pólos, Grau de proteção: Frontal IP65, Desenho: encastrado, Potência do motor AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Corrente nominal ininterrupta: Iu = 100 A, Normas: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Interruptor-seccionador de acordo com IEC/EN 60947-3
Aparelhos elétricos de baixa tensão > Suporte
Desconexões e Comutadores Cam
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series P3 On-off switch |
| Catalog Number | 067201 |
| EAN | 4015080672012 |
| Product Length/Depth | 100 mm |
| Product Height | 90 mm |
| Product Width | 90 mm |
| Product Weight | 0.33 kg |
| Certifications | CSA File No.: 012528 CSA Class No.: 3211-05 UL Category Control No.: NLRV VDE 0660 UL 60947-4-1 IEC/EN 60947 CSA UL File No.: E36332 IEC/EN 60947-3 UL CSA-C22.2 No. 94 IEC/EN 60204 CE CSA-C22.2 No. 60947-4-1-14 |
| Catalog Notes | Rated Short-time Withstand Current (Icw) for a time of 1 second |
| Model Code | P3-100/E |
Especificações do produto
| Product Category | On-Off switch |
| Actuator color | Black |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | UV resistance only in connection with protective shield. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Black thumb grip and front plate |
| Operating frequency | 1200 Operations/h |
| Pollution degree | 3 |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Rated permanent current at AC-21, 400 V | 100 A |
| Rated permanent current at AC-23, 400 V | 100 A |
| Rated uninterrupted current (Iu) | 100 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Switching power at 400 V | 55 kW |
| Voltage per contact pair in series | 60 V |
| Accessories | Auxiliary contact or neutral conductor fitted by user. |
| Rated operational power at AC-3, 500 V, 50 Hz | 45 kW |
| Device construction | Built-in device fixed built-in technique |
| Rated short-time withstand current (Icw) | 2 kA |
| Electrical connection type of main circuit | Screw connection |
| Mounting position | As required |
| Actuator type | Short thumb-grip |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Assigned motor power at 115/120 V, 60 Hz, 1-phase | 5 HP |
| Assigned motor power at 200/208 V, 60 Hz, 1-phase | 10 HP |
| Assigned motor power at 200/208 V, 60 Hz, 3-phase | 20 HP |
| Assigned motor power at 230/240 V, 60 Hz, 1-phase | 15 HP |
| Assigned motor power at 230/240 V, 60 Hz, 3-phase | 25 HP |
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 60 HP |
| Assigned motor power at 575/600 V, 60 Hz, 3-phase | 75 HP |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 7.5 W |
| Number of auxiliary contacts (change-over contacts) | 0 |
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Rated conditional short-circuit current (Iq) | 4 kA (Load side) 80 kA (Supply side) |
| Overvoltage category | III |
| Control circuit reliability | 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA) |
| Degree of protection (front side) | IP65 |
| Number of poles | 3 |
| Mounting method | Flush mounting |
| Degree of protection | NEMA 12 |
| Suitable for | Front mounting 4-hole Branch circuits, suitable as motor disconnect, (UL/CSA) |
| Number of switches | 1 |
| Safe isolation | 440 V AC, Between the contacts, According to EN 61140 |
| Screw size | M5, Terminal screw |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms |
| Lifespan, mechanical | 100,000 Operations |
| Load rating | 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) |
| Switching capacity (auxiliary contacts, general use) | 10A, IU, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) | P600 (UL/CSA) A600 (UL/CSA) |
| Terminal capacity | 1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228 2 x (2.5 - 10) mm², solid or stranded 14 - 2 AWG, solid or flexible with ferrule 2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228 1 x (2.5 - 35) mm², solid or stranded |
| Switching capacity (main contacts, general use) | 100 A, If used with neutral conductor IU = max. 90 A, Rated uninterrupted current max. (UL/CSA) |
| Safety parameter (EN ISO 13849-1) | B10d values as per EN ISO 13849-1, table C.1 |
| Number of auxiliary contacts (normally open contacts) | 0 |
| Number of contacts in series at DC-23A, 120 V | 3 |
| Number of contacts in series at DC-23A, 24 V | 1 |
| Number of contacts in series at DC-23A, 48 V | 2 |
| Number of contacts in series at DC-23A, 60 V | 2 |
| Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3) | 760 A |
| Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3) | 740 A |
| Rated breaking capacity at 500 V (cos phi to IEC 60947-3) | 880 A |
| Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3) | 520 A |
| Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3) | 950 A |
| Rated operating voltage (Ue) - max | 690 V |
| Rated operating voltage (Ue) - min | 690 V |
| Rated operational voltage (Ue) at AC - max | 690 V |
| Short-circuit current rating (basic rating) | 150A, max. Fuse, SCCR (UL/CSA) 10 kA, SCCR (UL/CSA) |
| Short-circuit protection rating | 100 A gG/gL, Fuse, Contacts |
| Rated operational current (Ie) at AC-21, 440 V | 100 A |
| Rated operational current (Ie) at AC-23A, 230 V | 100 A |
| Rated operational current (Ie) at AC-23A, 400 V, 415 V | 100 A |
| Rated operational current (Ie) at AC-23A, 500 V | 96 A |
| Rated operational current (Ie) at AC-23A, 690 V | 68 A |
| Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V | 71 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 71 A |
| Rated operational current (Ie) at AC-3, 500 V | 65 A |
| Rated operational current (Ie) at AC-3, 660 V, 690 V | 23.8 A |
| Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms | 100 A |
| Rated operational current (Ie) at DC-23A, 120 V | 25 A |
| Rated operational current (Ie) at DC-23A, 24 V | 50 A |
| Rated operational current (Ie) at DC-23A, 48 V | 50 A |
| Rated operational current (Ie) at DC-23A, 60 V | 50 A |
| Rated operational current for specified heat dissipation (In) | 100 A |
| Rated operational power at AC-23A, 220/230 V, 50 Hz | 30 kW |
| Rated operational power at AC-23A, 400 V, 50 Hz | 55 kW |
| Rated operational power at AC-23A, 500 V, 50 Hz | 55 kW |
| Rated operational power at AC-23A, 690 V, 50 Hz | 55 kW |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 37 kW |
| Rated operational power at AC-3, 415 V, 50 Hz | 37 kW |
| Rated operational power at AC-3, 690 V, 50 Hz | 37 kW |
| Tightening torque | 26.5 lb-in, Screw terminals 3 Nm, Screw terminals |
| Uninterrupted current | Rated uninterrupted current Iu is specified for max. cross-section. |
| Housing color | Black |
| Housing material | Plastic |
| Característica | Valor |
|---|---|
| Versão de interruptor principal (EF006981) | Não |
| Versão de chave de manutenção/serviço (EF006986) | Não |
| Versão de interruptor de segurança (EF006985) | Não |
| Versão como instalação de paragem de emergência (EF006959) | Não |
| Versão do interruptor de inversão (EF009408) | Não |
| Número de interruptores (EF005586) | 1 |
| Máx. tensão nominal de operação Ue CA (EF007355) | 690 V |
| Tensão nominal de operação (EF001435) | 690 V |
| Corrente permanente nominal Iu (EF001389) | 100 A |
| Corrente contínua nominal, AC-23, 400 V (EF011777) | 100 A |
| Corrente permanente nominal em AC-21, 400 V (EF009165) | 100 A |
| Potência de operação nominal em AC-3, 400 V (EF001364) | 37 kW |
| Corrente nominal suportável lcw atual (EF007050) | 2 kA |
| Potência de operação nominal em AC-23, 400 V (EF007027) | 55 kW |
| Potência de comutação a 400 V (EF009166) | 55 kW |
| Corrente condicional nominal de curto-circuito Iq (EF001444) | 80 kA |
| Número de polos (EF001391) | 3 |
| Número de contatos auxiliares como contato normalmente fechado (EF001377) | 0 |
| Número de contatos auxiliares como contato normalmente aberto (EF001376) | 0 |
| Número de contatos auxiliares como contato de comutação (EF003531) | 0 |
| Acionamento do motor opcional (EF007386) | Não |
| Acionamento do motor integrado (EF006697) | Não |
| Saída de tensão opcional (EF007491) | Não |
| Construção do dispositivo (EF008240) | Técnica de instalação fixa para dispositivo embutido |
| Adequado para montagem frontal de 4 furos (EF007247) | Sim |
| Adequado para o centro de montagem frontal (EF007248) | Não |
| Apropriado para a instalação do quadro de distribuição (EF007262) | Não |
| Adequado para montagem intermediária (EF007264) | Não |
| Cor do elemento de atuação (EF007167) | Preto |
| Tipo de elemento de controlo (EF006976) | Botão de giro curto |
| Possível interbloqueio (EF006281) | Não |
| Tipo de conexão elétrica do circuito principal (EF006819) | Ligação com parafuso |
| Com cablagem pré-montada (EF016444) | Não |
| Grau de proteção (IP), frente (EF003118) | IP65 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Largura (EF000008) | 90 mm |
| Altura (EF000040) | 90 mm |
| Profundidade (EF000049) | 100 mm |
