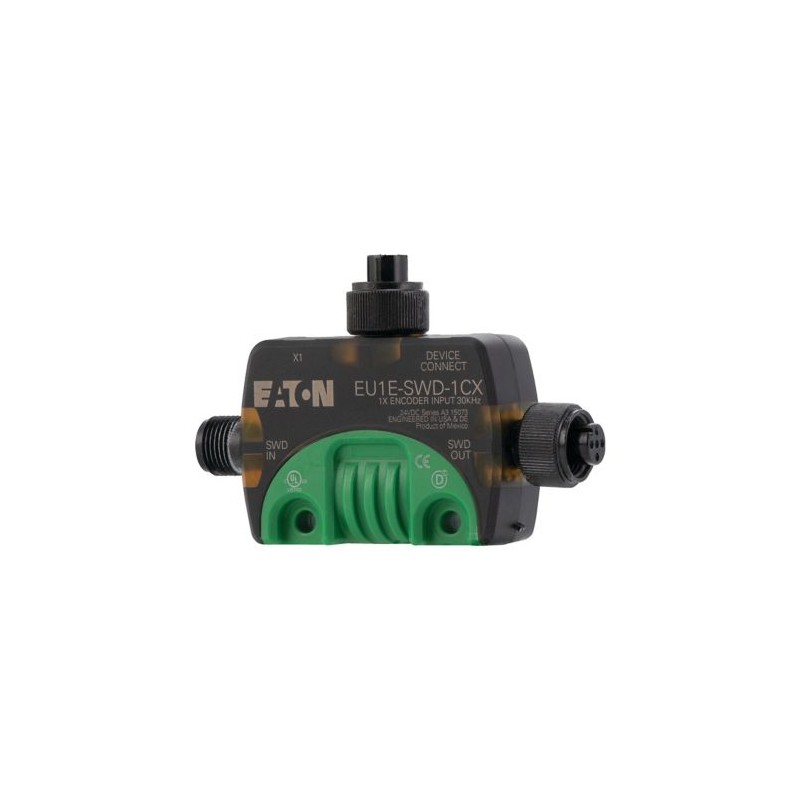

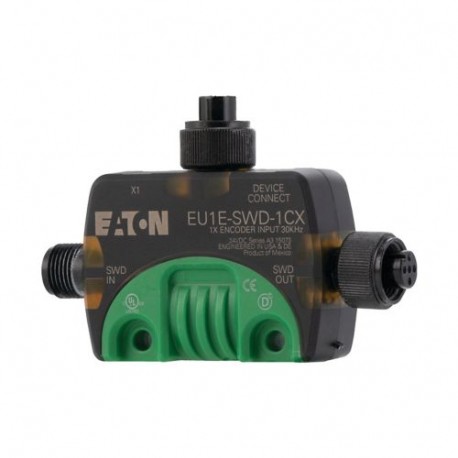

EU1E-SWD-1CX 174721 Y7-174721 EATON ELECTRIC Módulo SWDT IP67 1 Entrada contaje 1 conector M12
EU1E-SWD-1CX
174721
Y7-174721
EATON-MOELLER
Módulo SWDT IP67, 1 Entrada contaje, 1 conector M12
Eaton EU1E SWD T-Connector counter module IP69K, one counter input with power supply, M12 I/O socket
Módulo SmartWire-DT con grado de protección IP67 para conectar un contador digital; Fuente de alimentación a prueba de cortocircuitos de 24 VDC, 70 mA para contador; configuración automática de direcciones; Contador simple de 24 VDC, CODIFICADOR INCREMENTAL (A, B, R) con codificación X1, X2, X4; Contador Up/Down hasta 30 kHz; conexión de mostrador con toma M12
Controladores industriales (PLC) > Módulo de función/tecnología de PLC
Smartwire Darwin
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton EU1E Counter module
Catalog Number
174721
EAN
4015081712076
Product Length/Depth
85.6 mm
Product Height
20.1 mm
Product Width
56.9 mm
Product Weight
0.07 kg
Certifications
IEC/EN 61131-2
UL File No.: E170645
CSA
UL
UL File No.: E170645
CSA
UL
Model Code
EU1E-SWD-1CX
Características y funciones
Features
Overload protection (sensor supply)
Short-circuit protection (sensor supply)
Flux controller possible
Short-circuit protection (sensor supply)
Flux controller possible
Functions
Electronic positioning available
Single-axis controller possible
Single-axis positioning possible
For connecting a counter
Single-axis controller possible
Single-axis positioning possible
For connecting a counter
General
Current consumption
70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network
57 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
57 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
Degree of protection
IP69 (according to IEC/EN 60529, EN 50178, VBG 4)
IP69
IP69
Mounting method
Screw fixing (M4)
Mounting section (Clip M20)
DIN rail
Mounting section (Clip M20)
DIN rail
Overvoltage category
II
Pollution degree
3
Product category
SmartWire-DT slave
Suitable for
Counting
Incremental data detection
Path controller
Incremental data detection
Path controller
Condiciones ambientales y mecánicas
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: permissible
Operating temperature - min
-25 °C
Operating temperature - max
70 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilidad electromagnética
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Surge rating
0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Especificaciones eléctricas
Power loss
Normally 1.4 W
Rated operational voltage
24 V DC (counter inputs)
Comunicación
Connection
5-pin M12 socket (A-keyed), Terminal for I/O sensor, Connection supply and I/O
M12 plug (A-keyed), 5 pole, SWD-IN
M12 socket (A-keyed), 5 pole, SWD-OUT
M12 plug (A-keyed), 5 pole, SWD-IN
M12 socket (A-keyed), 5 pole, SWD-OUT
Connection to SmartWire-DT
Yes
Data transfer rate
Setting automatically
2 MBit/s, SmartWire-DT
2 MBit/s, SmartWire-DT
LED indicator
Status indication of Counter status: Yellow LED
Status indication of SmartWire-DT network: Green LED
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network
Entrada/salida
Counter frequency
30 kHz
Input
1 Counter input
32 Bit (Counter value)
32 Bit (Counter value)
Seguridad
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Inputs for SmartWire-DT: no
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.4 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Número de funciones (EF003244) | 3 |
| Redundancia (EF003156) | No |
| Apto para contar (EF003248) | Sí |
| Apto para pesar (EF003249) | No |
| Apto para el control de temperatura (EF008344) | No |
| Apto para control de soldadura (EF003251) | No |
| Apto para control de presión (EF003252) | No |
| Apto para NC (EF003253) | No |
| Apto para la detección de posición (EF003255) | Sí |
| Apto para CNC (EF003256) | No |
| Apto para SSI (EF003254) | No |
| Apto para la adquisición de valor incremental (EF003258) | Sí |
| Apto para la adquisición de valor absoluto (EF003259) | No |
| Apto para control de flujo (EF003260) | Sí |
| Apto para la medición de flujo (EF003261) | No |
| Apto para el control ferroviario (EF003262) | Sí |
| Apto para control de leva (EF003263) | No |
| Apto para sierra volante (EF003264) | No |
| Apto para control de ejes múltiples (EF003265) | No |
| Apto para el control de un solo eje (EF003266) | Sí |
| Apto para posicionamiento multieje (EF003267) | No |
| Apto para posicionamiento de un solo eje (EF003268) | Sí |
| Apto para funciones de seguridad (EF001597) | No |
| SIL según IEC 61508 (EF009889) | Ninguno |
| Nivel de rendimiento según EN ISO 13849-1 (EF007399) | Ninguno |
| Equipos asociados (Ex ia) (EF004141) | No |
| Equipos asociados (Ex ib) (EF004142) | No |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Anchura (EF000008) | 56.9 mm |
| Altura (EF000040) | 20.1 mm |
| Profundidad (EF000049) | 85.6 mm |
