SKVS 21/GL 10060620 WISKA Light grey cable glands RAL 7035, PA IP68, input flexible protection range from 13..
SKVS 21/GL
10060620
WISKA
10
Light grey cable glands RAL 7035, PA IP68, input flexible protection range from 13.0 to 18.0mm, pg.21 thread

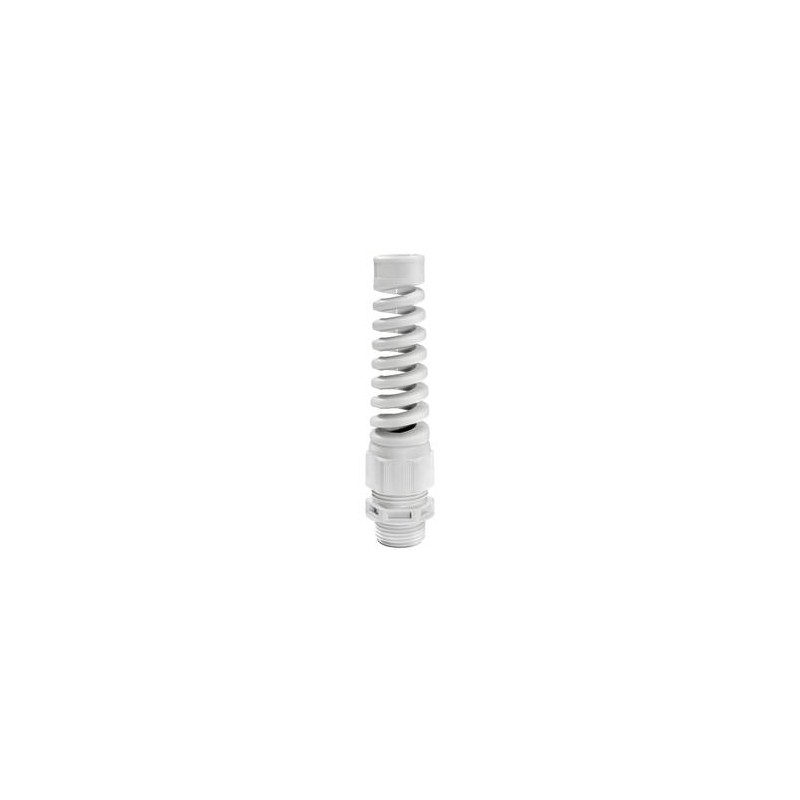

Cable gland with bend protection, polyamide, Pg 21, RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 18 mm |
| Key width SW | 33 mm |
| Collar diameter (E) | 38 mm |
| Total length TL | 139 mm |
| Type of cable anchorage | A |
| Product Color | RAL 7035 |
| Type | SKVS 21 |
| Order no. RAL 7035 | 10060620 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| SKVS 21/GL 10060620 EN_10060620.pdf | 316 Kbytes |
|
