SKV 42/G
10066009
WISKA
5

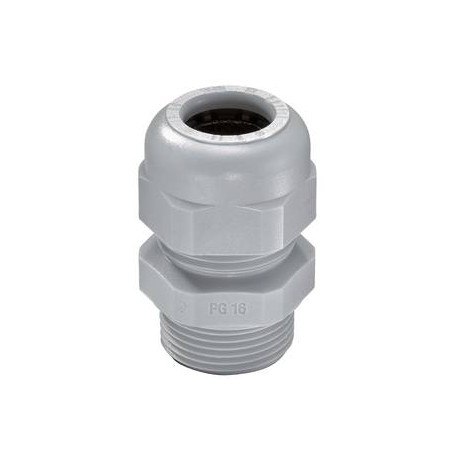

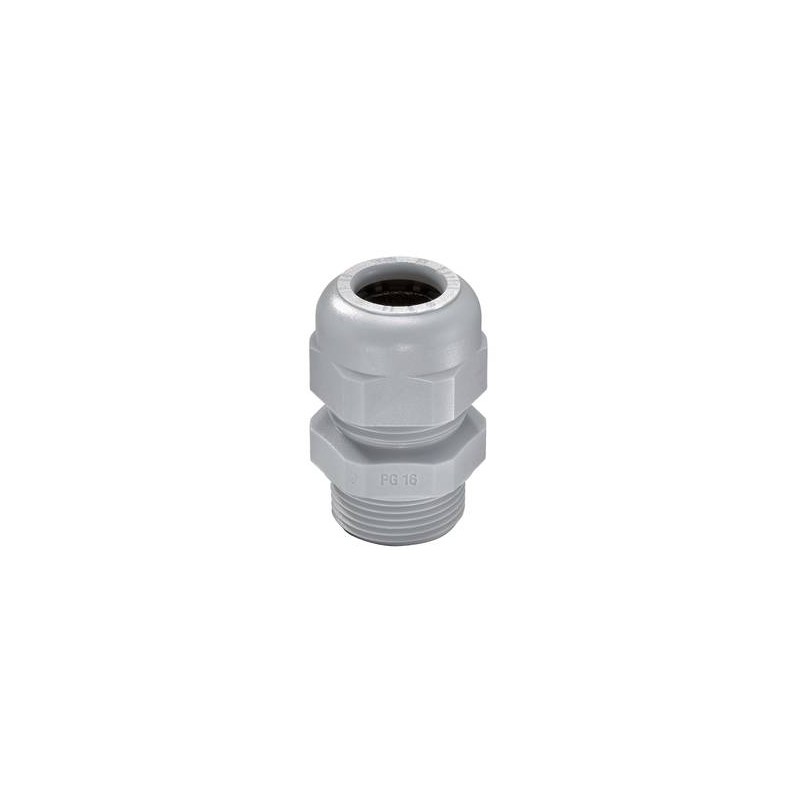

Light grey cable glands RAL 7035, PA IP68, range from 28.0 to 38.0mm, thread PG 42
Cable gland, polyamide, Pg 42 RAL 7001
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP68 (5 bar 30 min) |
Thread type | PG |
Ø Connection thread D | 42 |
Length screw-in thread L | 14 mm |
Ø cable diameter min | 28 mm |
Ø cable diameter max | 38 mm |
Key width SW | 60 mm |
Collar diameter (E) | 67 mm |
Total length TL | 58 mm - 67 mm |
Glow wire test | 750 °C |
Type of cable anchorage | A |
Product Color | RAL 7001 |
Order no. RAL 7001 | 10066009 |
Type | SKV 42 |
Packing unit | 5 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
SKV 42/G 10066009 EN_10066009.pdf | 261 Kbytes |
