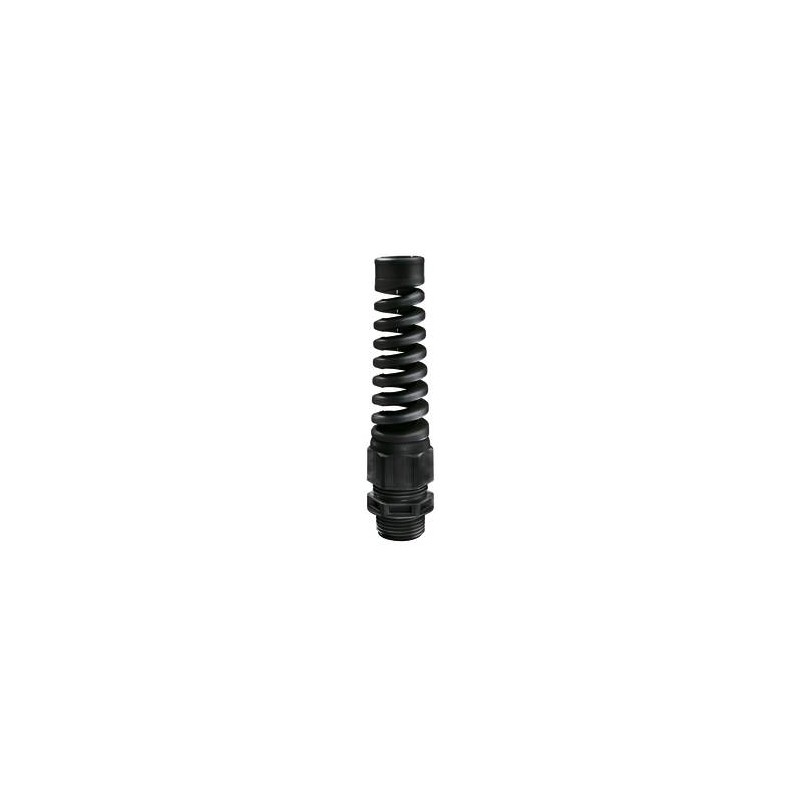

SKVS 21/B 10061876 WISKA Black cable glands RAL 9005, PA IP68, flexible protection input range from 13.0 to ..
SKVS 21/B
10061876
WISKA
10
Black cable glands RAL 9005, PA IP68, flexible protection input range from 13.0 to 18.0mm, pg.21 thread
Cable gland with bend protection, polyamide, Pg 21, RAL 9005
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 18 mm |
| Key width SW | 33 mm |
| Collar diameter (E) | 38 mm |
| Total length TL | 139 mm |
| Type of cable anchorage | A |
| Product Color | RAL 9005 |
| Type | SKVS 21 |
| Order no. RAL 9005 | 10061876 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| SKVS 21/B 10061876 EN_10061876.pdf | 414 Kbytes |
|
