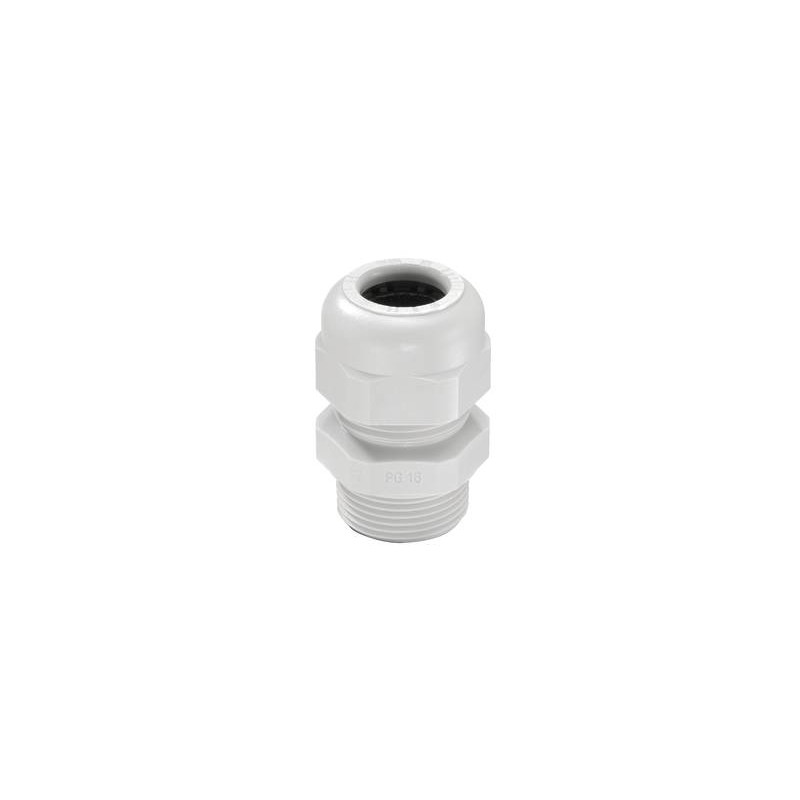

SKV 42/G 10066408 WISKA Dark grey cable glands RAL 7001, PA IP68, range from 28.0 to 38.0mm, thread PG 42
SKV 42/GL
10066408
WISKA
5
Dark grey cable glands RAL 7001, PA IP68, range from 28.0 to 38.0mm, thread PG 42
Cable gland, polyamide, Pg 42, RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 42 |
| Length screw-in thread L | 14 mm |
| Ø cable diameter min | 28 mm |
| Ø cable diameter max | 38 mm |
| Key width SW | 60 mm |
| Collar diameter (E) | 67 mm |
| Total length TL | 58 mm - 67 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10066408 |
| Type | SKV 42 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| SKV 42/GL 10066408 EN_10066408.pdf | 251 Kbytes |
|
