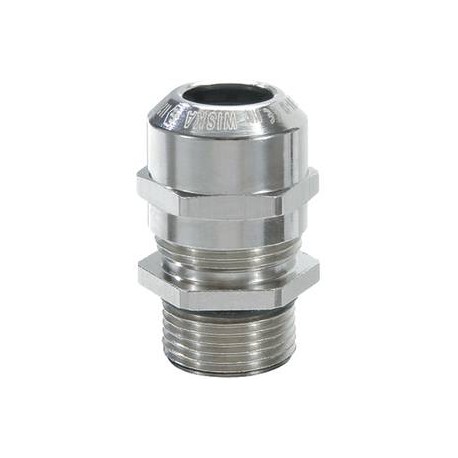

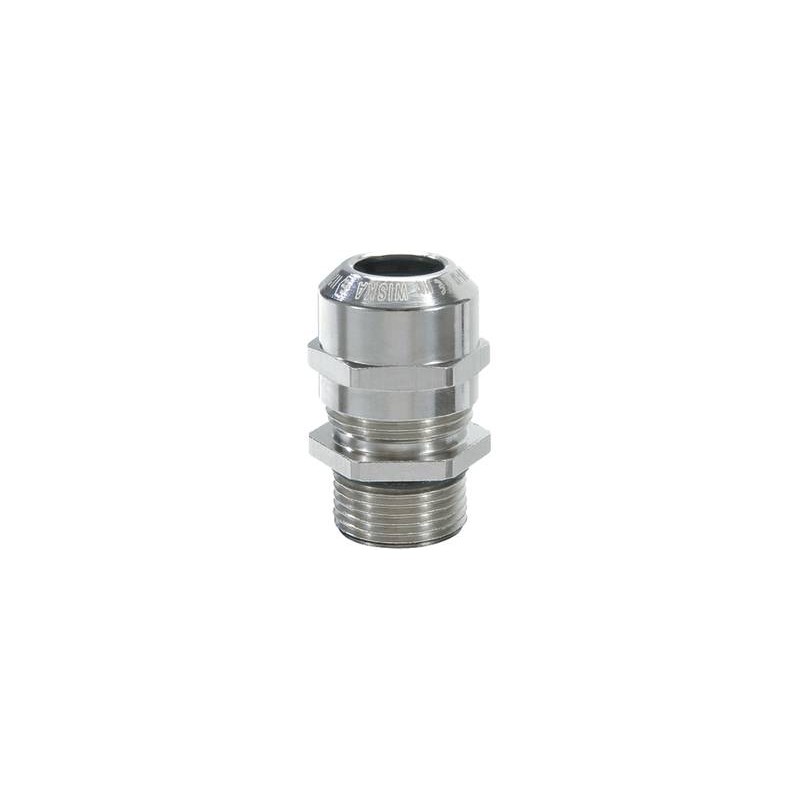

EMSKE-L 20 10065050 WISKA Metal cable glands, "ATEX" IP68, range from 6 to 13mm, long thread M20
EMSKE-L 20
10065050
WISKA
50
Metal cable glands, "ATEX" IP68, range from 6 to 13mm, long thread M20
Ex-cable gland, brass nickel-plated with long thread, M20
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 35 mm - 43 mm |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065050 |
| Type | EMSKE-L 20 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| EMSKE-L 20 10065050 EN_10065050.pdf | 330 Kbytes |
|
