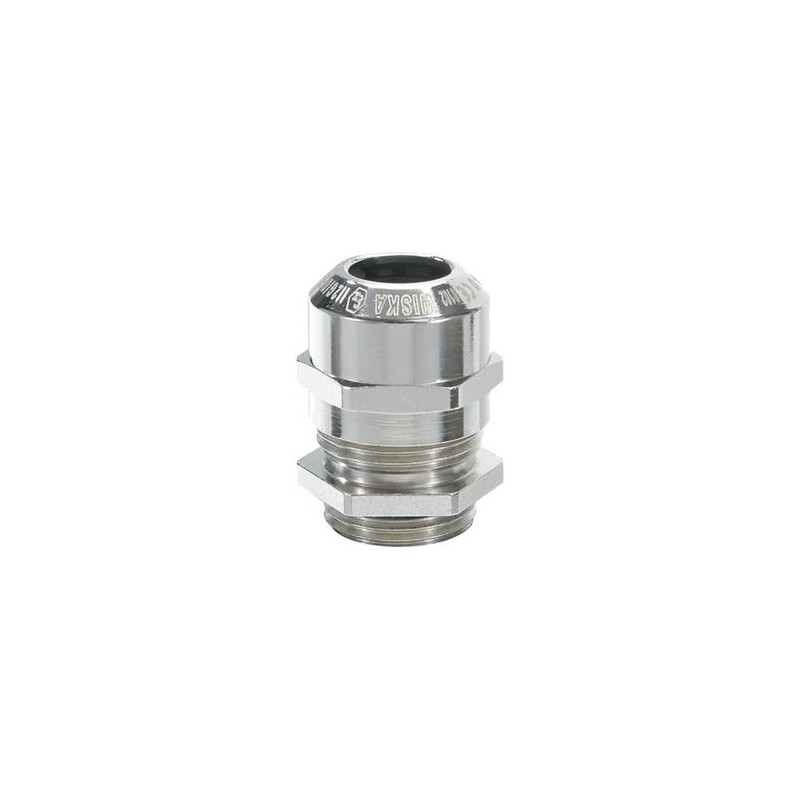

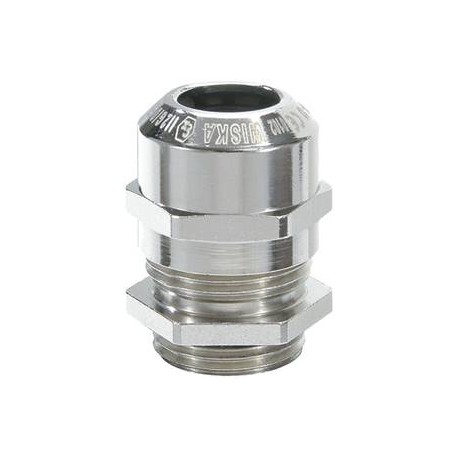

EMSKE 40 LT 10065951 WISKA Metal cable glands, "ATEX" IP68, -60o range from 16 to 28mm, thread M40
EMSKE 40 LT
10065951
WISKA
10
Metal cable glands, "ATEX" IP68, -60o range from 16 to 28mm, thread M40
Ex-cable gland LowTemp, brass nickel-plated with short thread, M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 44 mm - 55 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065951 |
| Type | EMSKE 40 LT |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKE 40 LT 10065951 EN_10065951.pdf | 323 Kbytes |
|
