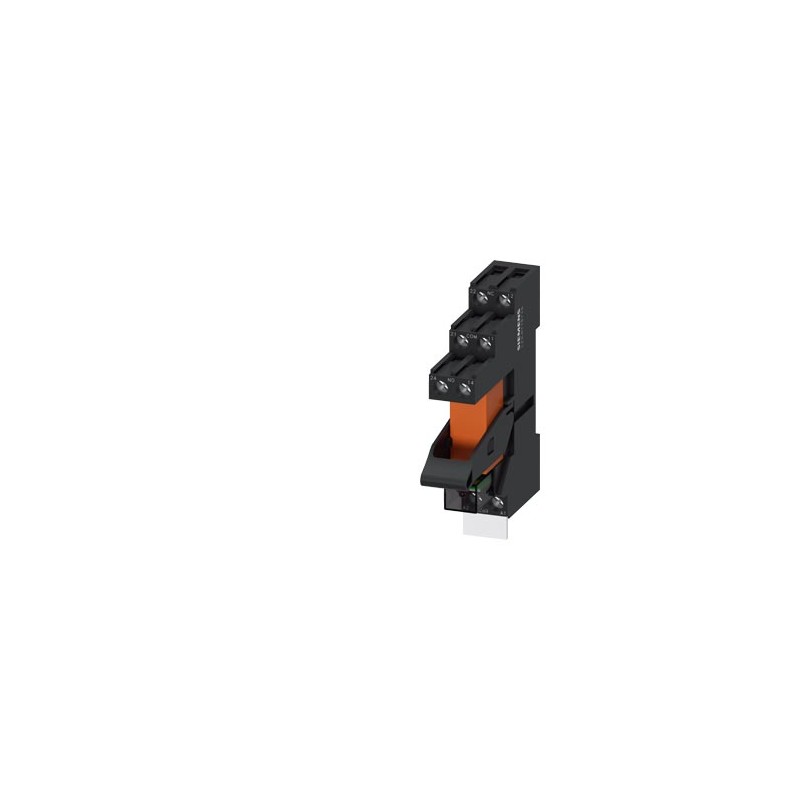

LZS:RT3B4T30 SIEMENS Plug-in relay complete unit 1 W, 230 V AC LED module red Socket with logic isolation sc..

LZS:RT3B4T30

SIEMENS

5

Plug-in relay complete unit 1 W, 230 V AC LED module red Socket with logic isolation screw terminal

'SIRIUS Plug-in Relays, Full Element, 230V AC, 1 CO, Logic Separation

More details


CONTROL AND CONTACTORS > Function relays

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $118.55
Unit price: $23.71

Quantity Price
5+$23.71
10+$20.49
15+$19.51
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Plug-in relay complete unit 1 W, 230 V AC LED module red Socket with logic isolation screw terminal
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
General technical data
display version LEDYes
percental drop-out voltage related to the input voltage15 %
protection class IPIP20
operating frequency without load36 000 1/h
operating frequency with load360 1/h
switching behaviormonostable
design of the switching functionchangeover switch
design of the switching function positively drivenNo
mechanical service life (switching cycles) typical10 000 000
electrical endurance (switching cycles) at AC-15 at 230 V typical70 000
thermal current16 A
reference code according to IEC 81346-2K
Substance Prohibitance (Date)05/01/2012
Control circuit/ Control
control supply voltage at AC
● at 50 Hz rated value230 V
● at 60 Hz rated value230 V
control supply voltage frequency
● 1 rated value50 Hz
● 2 rated value60 Hz
supply voltage frequency for auxiliary and control circuit rated value50 ... 60 Hz
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value0.9
● full-scale value1.1
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value0.9
● full-scale value1.1
design of the relay operating mechanismpoled
product component plug-in socketYes
design of the snap-on socket baseSocket with logic isolation
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A
Auxiliary circuit
type of switching contactChangeover contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts1
Main circuit
type of voltageAC
Display
display version as status display by LEDLED red
Connections/ Terminals
product function removable terminalNo
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections
● solid1x (1,0 ... 2,5), 2x 1,0, 2x 1,5, 2x 2,5
● finely stranded with core end processing1x (1.0 ... 1.5), 2x 1.0, 2x 1.5
● at AWG cables solid1x (18 ... 14), 2x 18, 2x 16, 2x 14
connectable conductor cross-section
● solid1 ... 2.5 mm²
● finely stranded with core end processing1 ... 1.5 mm²
AWG number as coded connectable conductor cross section
● solid18 ... 14
tightening torque with screw-type terminals0.5 ... 0.7 N·m
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height77 mm
width15.5 mm
depth71 mm
Ambient conditions
ambient temperature
● during operation-40 ... +70 °C
● during storage-20 ... +70 °C
● during transport-20 ... +70 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Derating
last modified:10/13/2021
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)LZS:RT3B4T30
Product DescriptionPlug-in relay complete unit 1 W, 230 V AC LED module red Socket with logic isolation screw terminal
Product familyCoupling relays
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLB------
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,064 Kg
Packaging Dimension85,50 x 103,00 x 77,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity5
Additional Product Information
EAN4011209674660
UPC754554959092
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5816
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-16-01
eClass7.127-37-16-01
eClass827-37-16-01
eClass927-37-16-01
eClass9.127-37-16-01
ETIM5EC001437
ETIM6EC001437
ETIM7EC001437
ETIM8EC001437
UNSPSC1439-12-23-26
UNSPSC1539-12-23-26

ETIM data

ETIM: EC001437 - Switching relay

Value Unit
Type of electric connection (EF003961) Screw connection
With detachable clamps (EF003340) false
Nominal current (EF000001) -A
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
With forced-guided contacts (EF003357) false
Type of switch contact (EF003358) Single contact
Complete with socket (EF003359) true
With LED indication (EF005950) true
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 15.5mm
Height (EF000040) 71.0mm
Depth (EF000049) 77.0mm
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
