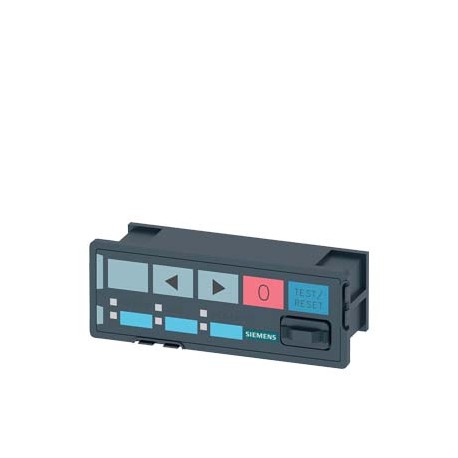

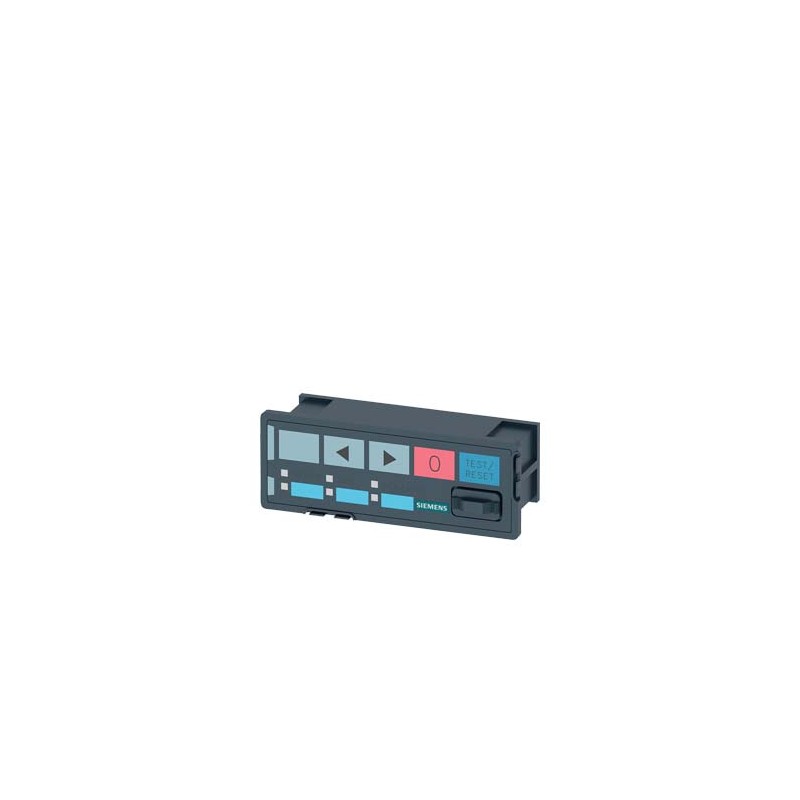

3UF7200-1AA01-0 SIEMENS Operator panel titanium gray, installation in control cabinet door or front plate, c.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3UF7200-1AA01-0 SIEMENS Operator panel titanium gray, installation in control cabinet door or front plate, c..

3UF7200-1AA01-0

SIEMENS

Operator panel titanium gray, installation in control cabinet door or front plate, can be plugged onto basic unit or extension modules, 10 LEDs for status display and 5 freely assignable keys for manual control

TITAN GREY CONTROL MODULE; MOUNTING ON CABINET DOOR OR FRONT PANEL; PLUG-IN TO BASE UNIT WITHOUT EXPANSION UNIT; 10 LEDS TO INDICATE STATUS AND 5 ASSIGNABLE BUTTONS FOR MANUAL CONTROL

More details


Low-voltage industrial components > Operator panel for Motor management device

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $373.22
Unit price: $373.22

Quantity Price
1+$373.22
2+$361.84
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

Operator panel titanium gray, installation in control cabinet door or front plate, can be plugged onto basic unit or extension modules, 10 LEDs for status display and 5 freely assignable keys for manual control
product brand nameSIRIUS
product designationoperator panels
General technical data
consumed active power0.1 W
insulation voltage rated value300 V
surge voltage resistance rated value4 000 V
protection class IP on the frontIP54
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
reference code according to IEC 81346-2A
Substance Prohibitance (Date)07/01/2006
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-41 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
Installation/ mounting/ dimensions
mounting positionvertical
fastening methodfront plate mounting
height36 mm
width96 mm
depth44 mm
Ambient conditions
installation altitude at height above sea level
● maximum4 000 m
● 1 maximum2 000 m
● 2 maximum3 000 m; max. +50 °C (no protective separation)
● 3 maximum4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shippingother

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

RMRS / Russian Maritime Register

DNV-GL

Confirmation

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:4/7/2022
Date
5/2/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UF7200-1AA01-0
Product DescriptionOperator panel titanium gray, installation in control cabinet door or front plate, can be plugged onto basic unit or extension modules, 10 LEDs for status display and 5 freely assignable keys for manual control
Product familySIMOCODE pro 3UF7 motor management and control devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42J / 42J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,092 Kg
Packaging Dimension47,00 x 114,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209916241
UPC887621549268
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5836
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-08-06
eClass7.127-37-08-06
eClass827-37-08-06
eClass927-37-08-06
eClass9.127-37-08-06
ETIM5EC002614
ETIM6EC002614
ETIM7EC002614
ETIM8EC002614
IDEA44776
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002614 - Operator panel for Motor management device

Value Unit
Suitable for front mounting (EF001127) -
Number of buttons (EF003144) -
Degree of protection (NEMA) (EF011959) -
Number of displays (EF006884) -
Number of status indications (EF006941) -
Degree of protection (IP) (EF005474) IP54
