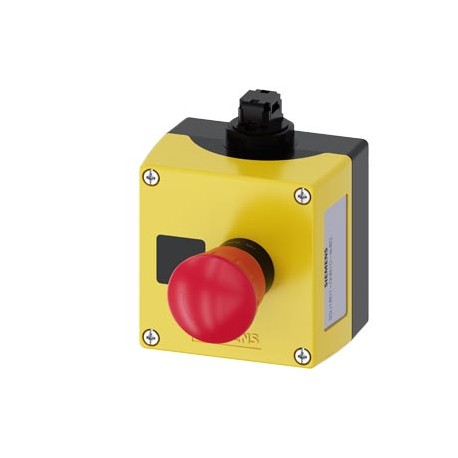

3SU1801-0NB10-4HB2 SIEMENS AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plas.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

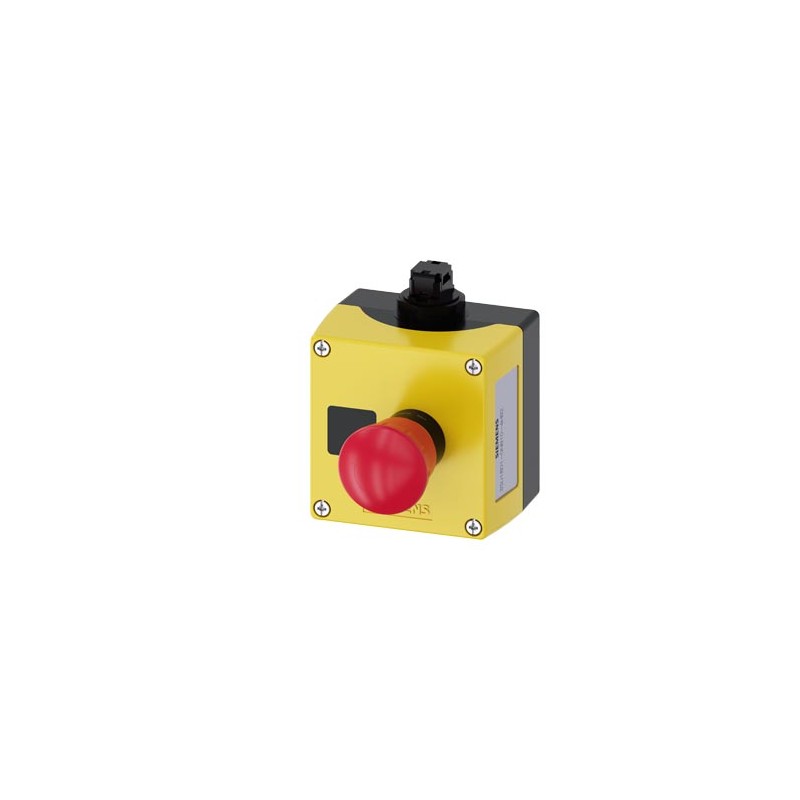

3SU1801-0NB10-4HB2 SIEMENS AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plas..

3SU1801-0NB10-4HB2

SIEMENS

AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Label enclosed

More details


Low-voltage industrial components > Control circuit devices combination in enclosure

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $232.87
Unit price: $232.87
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

AS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Label enclosed
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
equipment of commanding and signaling deviceA = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism
manufacturer's article number
● of supplied contact moduleA1 = 3SU1400-2AA10-3CA0, A2 = 3SU1400-2AA10-3CA0
● of supplied contact module at the command point A 13SU1400-2AA10-3CA0
● of supplied contact module at the command point A 23SU1400-2AA10-3CA0
● of supplied communication moduleAB = 3SU1400-2EA10-6AA0
● of the supplied holderA = 3SU1500-0AA10-0AA0
● of the supplied holder at the command point A3SU1500-0AA10-0AA0
● of the supplied actuatorA = 3SU1000-1HB20-0AA0
● of the supplied actuator at the command point A3SU1000-1HB20-0AA0
● of supplied empty enclosure3SU1801-0AA00-0AB2
Enclosure
design of the housingwith recess for label
shape of the enclosure frontSquare
material of the enclosureplastic
number of command points1
product component
● EMERGENCY STOP deviceYes
● protective collarNo
color of the enclosure top partyellow
delivery state
● as a kitNo
● pre-wired on strip terminalNo
fastening method of the enclosureVertical
Actuator
design of the actuating elementEMERGENCY STOP mushroom pushbutton
suitability for use EMERGENCY OFF switchYes
product feature lockoutNo
product extension optional light sourceNo
color of the actuating elementred
material of the actuating elementplastic
shape of the actuating elementround
number of contact modules2
type of unlocking deviceA = rotate-to-unlatch mechanism
Front ring
product component front ringNo
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
product function
● positive openingYes
● EMERGENCY OFF functionYes
● EMERGENCY STOP functionYes
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13
shock resistance
● according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
● for railway applications according to EN 61373Category 1, Class B
vibration resistance
● according to IEC 60068-2-610 ... 500 Hz: 5g
● for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (Date)10/01/2014
operating voltage
● at AC
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
cable entry typeAdapter ASI shaped cable (insulation displacement method) M20 cable entry
Communication/ Protocol
design of the interface for communicationAS-i
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
Connections/ Terminals
type of electrical connection of modules and accessoriesSpring-type terminal
type of electrical connection on enclosureAdapter ASI shaped cable (insulation displacement method)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height105.4 mm
width85 mm
depth109 mm
shape of the installation openinground
Accessories
number of labels0
number of inscription plates0
number of backing plates0
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

CCC

Confirmation

UL

EAC

UK Declaration of Conformity

Declaration of ConformityTest Certificatesother

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1801-0NB10-4HB2
Product DescriptionAS-Interface enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 1 control point plastic, Recess for label, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, 1 NC, spring-type terminal, floor mounting, Insulation displacement system on top, Label enclosed
Product familyPushbuttons and indicator lights in the enclosure for AS-Interface
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,423 Kg
Packaging Dimension98,00 x 129,00 x 134,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209970342
UPC804766075100
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5454
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-16
eClass7.127-37-12-16
eClass827-37-12-16
eClass927-37-12-16
eClass9.127-37-12-16
ETIM5EC000225
ETIM6EC000225
ETIM7EC000225
ETIM8EC000225
UNSPSC1539-12-22-21

ETIM data

ETIM: EC000225 - Control circuit devices combination in enclosure

Value Unit
Degree of protection (IP) (EF005474) -
Number of command positions (EF001372) 1
Number of push buttons (EF005558) 1
Number of indicator lights (EF001965) 0
Number of key switches (EF005590) 0
Number of selector switches (EF005567) 0
Number of mushroom-shaped push-buttons (EF006670) 0
Suitable for emergency stop (EF001433) true
Rated control supply voltage Us at AC 50HZ (EF003978) ['5', '500']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['5', '500']V
Rated control supply voltage Us at DC (EF003980) ['5', '500']V
Colour housing cover (EF001373) Yellow
Material housing (EF001596) Plastic
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as change-over contact (EF008257) 0
Degree of protection (NEMA) (EF011959) NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1801-0NB10-4HB2 3SU1801-0NB10-4HB2 EN_3SU1801-0NB10-4HB2.pdf 353 Kbytes 3SU1801-0NB10-4HB2 3SU1801-0NB10-4HB2 EN_3SU1801-0NB10-4HB2.pdf
