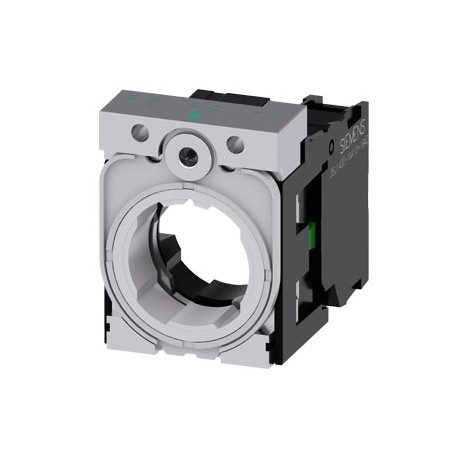

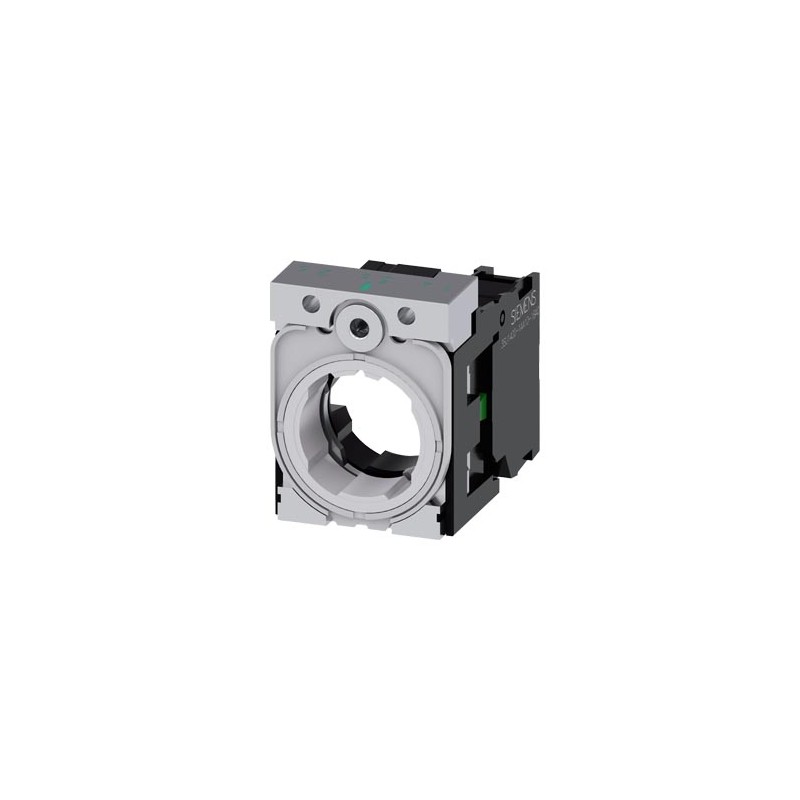

holder, universal, 3-way, plastic/metal, 1 NO, screw terminal >>new design<
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
holder, universal, 3-way, plastic/metal, 1 NO, screw terminal >>new design<< | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Holders | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied contact module | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at position 1 | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | 3-way with module | |||||||||||||||||||||||||||||||||||||
number of contact modules | 1 | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
Display | ||||||||||||||||||||||||||||||||||||||
number of LED modules | 0 | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function positive opening | No | |||||||||||||||||||||||||||||||||||||
product component | ||||||||||||||||||||||||||||||||||||||
● diode | No | |||||||||||||||||||||||||||||||||||||
● lamp transformer | No | |||||||||||||||||||||||||||||||||||||
● light source | No | |||||||||||||||||||||||||||||||||||||
● series resistor | No | |||||||||||||||||||||||||||||||||||||
insulation voltage rated value | 500 V | |||||||||||||||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||||||||||||||
surge voltage resistance rated value | 6 kV | |||||||||||||||||||||||||||||||||||||
protection class IP of the terminal | IP20 | |||||||||||||||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||||||||||||||
operating frequency maximum | 3 600 1/h | |||||||||||||||||||||||||||||||||||||
mechanical service life (switching cycles) typical | 10 000 000 | |||||||||||||||||||||||||||||||||||||
thermal current | 10 A | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | U | |||||||||||||||||||||||||||||||||||||
continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A | |||||||||||||||||||||||||||||||||||||
continuous current of the quick DIAZED fuse link | 10 A | |||||||||||||||||||||||||||||||||||||
continuous current of the DIAZED fuse link gG | 10 A | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
operating voltage | ||||||||||||||||||||||||||||||||||||||
● at AC | ||||||||||||||||||||||||||||||||||||||
— at 50 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
— at 60 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
● at DC rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
Power Electronics | ||||||||||||||||||||||||||||||||||||||
contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) | |||||||||||||||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
design of the contact of auxiliary contacts | Silver alloy | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 1 | |||||||||||||||||||||||||||||||||||||
operational current at AC-15 at 230 V rated value | 6 A | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection | ||||||||||||||||||||||||||||||||||||||
● of modules and accessories | Screw-type terminal | |||||||||||||||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
● solid with core end processing | 2x (0.5 ... 0.75 mm²) | |||||||||||||||||||||||||||||||||||||
● solid without core end processing | 2x (1.0 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) | |||||||||||||||||||||||||||||||||||||
● at AWG cables | 2x (18 ... 14) | |||||||||||||||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
tightening torque | ||||||||||||||||||||||||||||||||||||||
● with screw-type terminals | 0.8 ... 0.9 N·m | |||||||||||||||||||||||||||||||||||||
● for grounding | 0.8 ... 1 N·m | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method | front plate mounting | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
height | 40 mm | |||||||||||||||||||||||||||||||||||||
width | 30 mm | |||||||||||||||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
installation width | 30 mm | |||||||||||||||||||||||||||||||||||||
installation depth | 49.8 mm | |||||||||||||||||||||||||||||||||||||
thickness of the front plate usable | 1 ... 6 mm | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/27/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/14/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | ||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1550-1AA10-1BA0 | |||||||||||||||||||||||||||||||||
Product Description | holder, universal, 3-way, plastic/metal, 1 NO, screw terminal >>new design<< | |||||||||||||||||||||||||||||||||
Product family | Holders | |||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
Metal Factor | LBO----- | |||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | |||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,051 Kg | |||||||||||||||||||||||||||||||||
Packaging Dimension | 40,00 x 50,00 x 30,00 | |||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||
EAN | 4011209963603 | |||||||||||||||||||||||||||||||||
UPC | 804766074967 | |||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||
Product Group | 5452 | |||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | |||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Type of electric connection (EF003961) | - | |
Number of fault-signal switches (EF007613) | - | |
Number of contacts as change-over contact (EF008257) | 0 | |
Number of contacts as normally open contact (EF008256) | 1 | |
Number of contacts as normally closed contact (EF008255) | 0 | |
Rated operation current Ie at AC-15, 230 V (EF001385) | 6 | A |
Model (EF000010) | - | |
Mounting method (EF000003) | Front fastening | |
Lamp holder (EF000048) | None |
