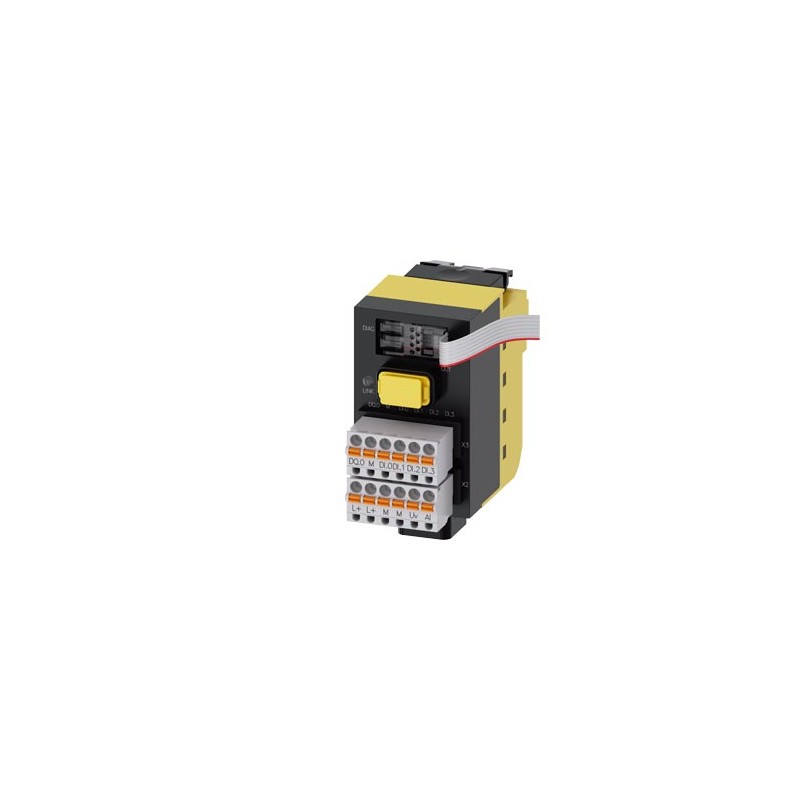

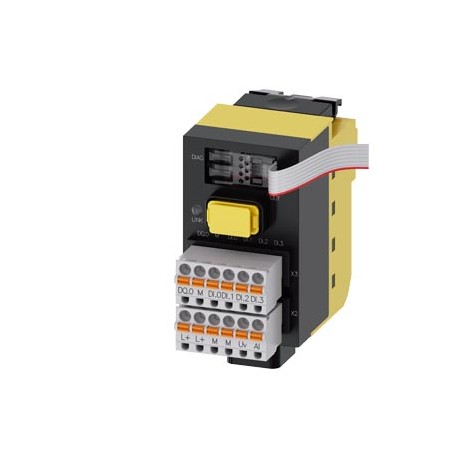

3SU1400-1LL10-3BA1 SIEMENS SIRIUS ACT with PROFINET: Fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-1LL10-3BA1 SIEMENS SIRIUS ACT with PROFINET: Fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1..

3SU1400-1LL10-3BA1

SIEMENS

SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, spring-loaded terminal, front plate mounting, 1 to 20 terminal modules connectable

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $368.66
Unit price: $368.66

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

SIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, spring-loaded terminal, front plate mounting, 1 to 20 terminal modules connectable
product brand nameSIRIUS ACT
product designationFail-safe interface module for PROFINET
product type designation3SU1
Display
display version
● for diagnostic function: Supply voltage monitoring power LEDYes
● status Tx/Rx linkYes
General technical data
product function
● reverse polarity protectionYes; With polarity change, DI1 ... DI4 may not be connected to (M) pole
● diagnostics functionYes
● alarmsYes
● I&M dataYes; I&M0 ... I&M3
firmware version2.1.1
hardware version1
configuration function with datasetYes
software version with STEP 7 in the TIA Portal requiredIntegrated in TIA Portal Version 14 SP1 or higher (HSP for V13 and V14)
number of units per rack maximum20
number of submodules per station maximum24
power loss [W] typical0.67 W
insulation voltage rated value30 V
degree of pollution3
type of voltage
● of the operating voltageDC
● of the input voltageDC
surge voltage resistance rated value0.8 kV
consumed current
● maximum100 mA
● rated value28 mA
protection class IPIP20
reference code according to IEC 81346-2K
Substance Prohibitance (Date)12/19/2016
operating voltage rated value20.4 V
I2t value0.008 A²·s
Supply voltage
supply voltage at DC rated value24 V
Communication/ Protocol
protocol is supported
● PROFINET IO protocolYes
● PROFIsafe protocolYes
product function at the Ethernet interface
● AutocrossoverYes
● AutonegotiationYes
protocol at the 1st interface media redundancy protocolNo
product function at the 1st interface PROFINET IO deviceYes
product function of the PROFINET IO device is supported PROFINET system redundancyNo
service as PROFINET IO device
● prioritized startupNo
● isochronous modeNo
● supports Shared DeviceNo
● supports PROFIenergyNo
● IRTNo
● MRPNo
● MRPDNo
service for open IE communication
● LLDPYes
● SNMPYes
● TCP/IPYes
GSD version/revision with PROFINET requiredV2.3
transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)
network load class according to PROFINET1
specification for Security Level 1 test according to PROFINETResilient to network loading
Control circuit/ Control
inrush current maximum16 A
Galvanic isolation
galvanic isolation between PROFINET and all other circuitsYes
Inputs/ Outputs
number of digital inputs4
● safety-related0
number of analog inputs1
number of digital outputs1
Connections/ Terminals
type of electrical connectionspring-loaded terminals
connectable conductor cross-section for auxiliary contacts
● solid or stranded0.2 ... 2.5 mm²
● finely stranded with core end processing2.5 mm²
connectable conductor cross-section
● solid0.2 ... 2.5 mm²
● solid with core end processing0.2 ... 2.5 mm²
● finely stranded with core end processing0.25 ... 2.5 mm²
● finely stranded without core end processing0.2 ... 2.5 mm²
AWG number as coded connectable conductor cross section26 ... 12
Safety related data
Safety Integrity Level (SIL) according to IEC 615083
SIL Claim Limit (subsystem) according to EN 62061SILCL 3
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
Safe failure fraction (SFF)99.6 %
PFHD with high demand rate according to EN 620610.0000000006 1/h
PFDavg with low demand rate according to IEC 615080.0000024
service life maximum20 y
T1 value according to IEC 615081 y
design of the interface
● Ethernet interfaceYes; for Ethernet services
● Fast Ethernet interfaceYes; PROFINET with 100 Mbps
interface design 1
● integrated switchNo
● RJ45 (Ethernet)Yes
number of ports at the 1st interface1
number of interfaces according to PROFINET1
Ambient conditions
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)
explosion protection marking for intrinsic safety of related equipment EEx iaNo
explosion protection marking for intrinsic safety of related equipment EEx ibNo
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height80.1 mm
width40 mm
depth72.1 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalFunctional Safety/Safety of MachineryDeclaration of Conformity

Confirmation

UL

EAC

Type Examination Certificate

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test Certificatesother

Special Test Certificate

Type Test Certificates/Test Report

Confirmation

PROFIBUS-Certification

PROFINET-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-1LL10-3BA1
Product DescriptionSIRIUS ACT with PROFINET: fail-safe interface module with 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, spring-loaded terminal, front plate mounting, 1 to 20 terminal modules connectable
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)0,154 Kg
Packaging Dimension100,00 x 115,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621016924
UPC804766475955
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5453
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 19.12.2016
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
ETIM8EC002024
IDEA45226
UNSPSC1539-12-22-21

ETIM data

ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of mechanical accessory/spare part (EF005994) -
Type of electrical accessory/spare part (EF005722) -


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3SU1400-1LL10-3BA1 3SU1400-1LL10-3BA1 EN_3SU1400-1LL10-3BA1.pdf 192 Kbytes 3SU1400-1LL10-3BA1 3SU1400-1LL10-3BA1 EN_3SU1400-1LL10-3BA1.pdf

Reviews (0) ▲
