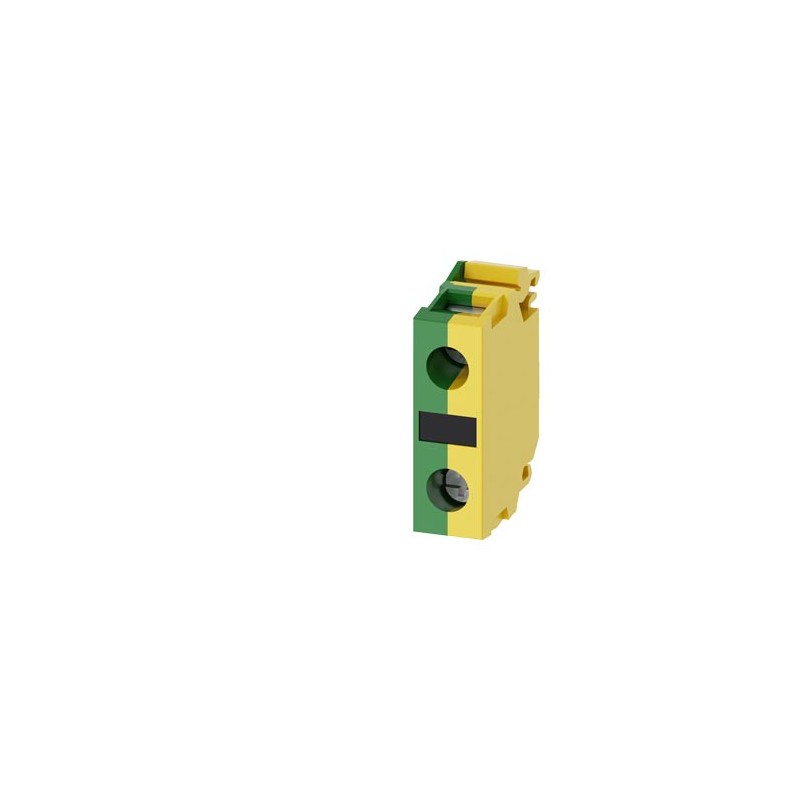

3SU1400-1DA43-1AA0 SIEMENS Support terminal, green/yellow, screw terminal, for front plate mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1400-1DA43-1AA0 SIEMENS Support terminal, green/yellow, screw terminal, for front plate mounting

3SU1400-1DA43-1AA0

SIEMENS

Support terminal, green/yellow, screw terminal, for front plate mounting

More details


CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $6.45
Unit price: $6.45

Quantity Price
1+$6.45
2+$6.45
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Support terminal, green/yellow, screw terminal, for front plate mounting
product brand nameSIRIUS ACT
product designationSupport terminal
product type designation3SU1
General technical data
suitability for integrationyes
degree of pollution3
surge voltage resistance rated value6 kV
protection class IP
● of the enclosureIP40
● of the terminalIP20
reference code according to IEC 81346-2S
Substance Prohibitance (Date)10/01/2014
Connections/ Terminals
type of electrical connectionscrew-type terminals
● of modules and accessoriesScrew-type terminal
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height33.2 mm
width9.8 mm
depth23.4 mm
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Marine / Shippingother

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/18/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SU1400-1DA43-1AA0
Product DescriptionSupport terminal, green/yellow, screw terminal, for front plate mounting
Product familyModules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorL-O-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works55 Day/Days
Net Weight (kg)0,010 Kg
Packaging Dimension25,00 x 32,00 x 10,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209965201
UPC804766475917
Commodity Code85369010
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
ETIM8EC002024

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -
