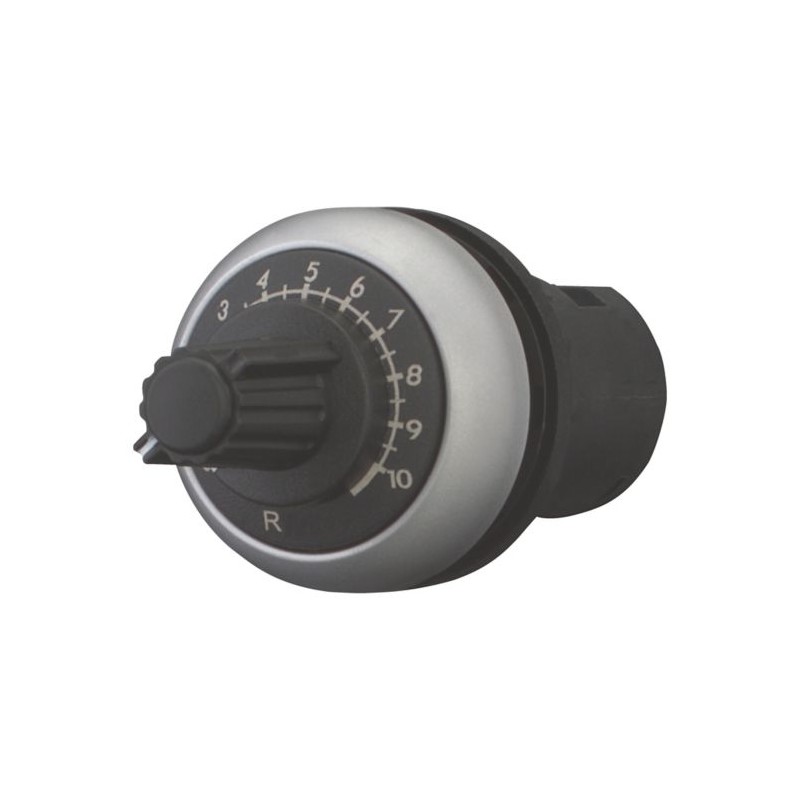

M22-R2K2 171157 Y7-171157 EATON ELECTRIC Potentiometer 2.2 kohm inscription x1000
M22-R2K2
171157
Y7-171157
EATON-MOELLER
Potentiometer 2.2 kohm inscription x1000
M22-R2K2
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, R 2.2 kΩ, P 0.5 W, Bezel: titanium
Potentiometer, RMQ design: Classical, Part group reference (e.g. DIL): M22, Mounting hole diameter: 22.5 mm, Single unit, Description: 3 individual screw terminals, Accuracy of resistance value: ± 10% (linear), Impedance: R= 2.2 kΩ, Rated power: P= 0.5 W, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660
Low-voltage industrial components > Potentiometer for command devices
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Often bought together
▲Best sellers
▲More info
▲General specifications
UL Listed
UL File No.: E29184
CSA-C22.2 No. 94-91
CSA
CSA File No.: 012528
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
VDE 0660
CE
IEC/EN 60947-5
CSA Class No.: 3211-03
IEC/EN 60947
UL 508
| Feature Name | Feature Value |
|---|---|
| Resistance (EF002431) | 2200 Ohm |
| Power consumption (EF000346) | 0.5 W |
| Hole diameter (EF000079) | 22.5 mm |
| Number of revolutions (EF006943) | 1 |
| Type of electric connection (EF003961) | Screw connection |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-R2K2 Y7-171157 171157 EN_171157.pdf | 114 Kbytes |
|
