3SU1100-7BA10-1NA0
SIEMENS
1

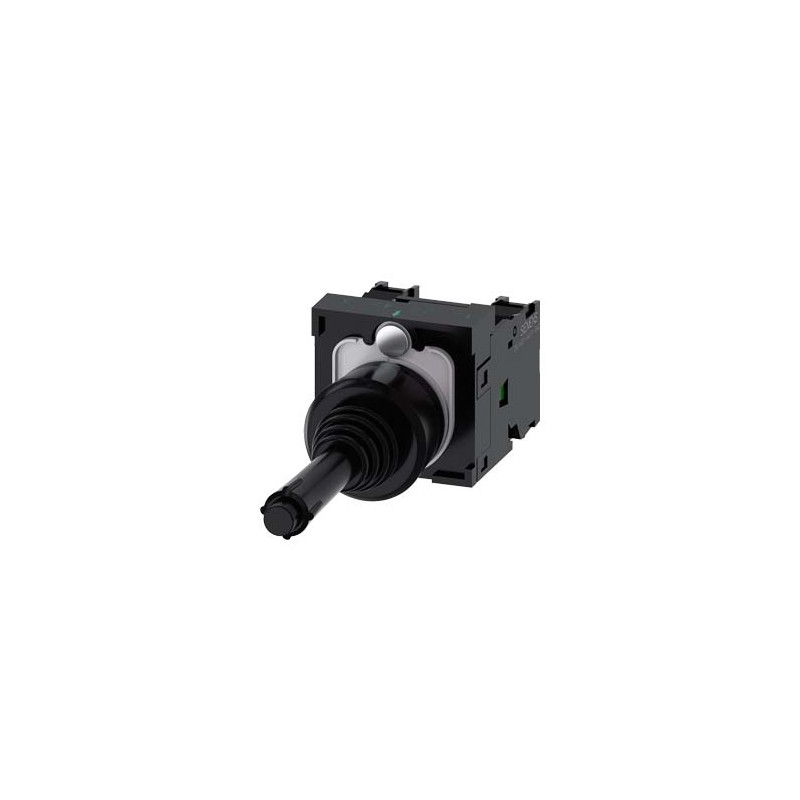

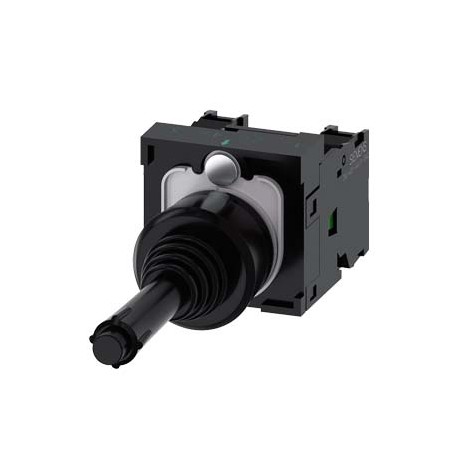

Coordinate switch, 22 mm, round, plastic, black, 2 switch positions, horizontal latching, with mechanical interlocking, in O position, with holder, 1 NO, 1 NO, screw terminal,
MANIPULATOR, 22MM, ROUND, PLASTIC, BLACK, 2 POSITIONS, HORIZONTAL, SHARP, WITH MECHANICAL INTERLOCKING IN THE POSITION OR, WITH SUPPORT, 1NA, 1NA, SCREW TERMINALS. Manufactured to order. Non-Cancelable Non-Returnable.
Low-voltage industrial components > Control switch, Joystick
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Coordinate switch, 22 mm, round, plastic, black, 2 switch positions, horizontal latching, with mechanical interlocking, in O position, with holder, 1 NO, 1 NO, screw terminal, | ||||||||||||||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||||||||||||||
product designation | Coordinate switches | |||||||||||||||||||||||||||||||||||||
design of the product | Complete unit | |||||||||||||||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||||||||||||||
product line | Plastic, black, 22 mm | |||||||||||||||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
● of supplied contact module at position 1 | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of supplied contact module at position 3 | 3SU1400-1AA10-1BA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied holder | 3SU1550-0BA10-0AA0 | |||||||||||||||||||||||||||||||||||||
● of the supplied actuator | 3SU1000-7BA10-0AA0 | |||||||||||||||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||||||||||||||
shape of the enclosure front | round | |||||||||||||||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||||||||||||||
design of the actuating element | with mechanical interlocking | |||||||||||||||||||||||||||||||||||||
principle of operation of the actuating element | latching | |||||||||||||||||||||||||||||||||||||
direction of actuation | horizontal | |||||||||||||||||||||||||||||||||||||
product extension optional light source | No | |||||||||||||||||||||||||||||||||||||
color of the actuating element | black | |||||||||||||||||||||||||||||||||||||
material of the actuating element | plastic | |||||||||||||||||||||||||||||||||||||
shape of the actuating element | Extended handle | |||||||||||||||||||||||||||||||||||||
outer diameter of the actuating element | 30.5 mm | |||||||||||||||||||||||||||||||||||||
number of contact modules | 2 | |||||||||||||||||||||||||||||||||||||
type of unlocking device | push-to-unlatch mechanism | |||||||||||||||||||||||||||||||||||||
number of switching positions | 2 | |||||||||||||||||||||||||||||||||||||
Maximum deflection angle [°] | 30° | |||||||||||||||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||||||||||||||
product component front ring | Yes | |||||||||||||||||||||||||||||||||||||
design of the front ring | high | |||||||||||||||||||||||||||||||||||||
material of the front ring | plastic | |||||||||||||||||||||||||||||||||||||
color of the front ring | black | |||||||||||||||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||||||||||||||
product function positive opening | No | |||||||||||||||||||||||||||||||||||||
insulation voltage rated value | 500 V | |||||||||||||||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||||||||||||||
type of voltage of the operating voltage | AC/DC | |||||||||||||||||||||||||||||||||||||
surge voltage resistance rated value | 6 kV | |||||||||||||||||||||||||||||||||||||
protection class IP | IP65, IP67 | |||||||||||||||||||||||||||||||||||||
● of the terminal | IP20 | |||||||||||||||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||||||||||||||
operating frequency maximum | 2 400 1/h | |||||||||||||||||||||||||||||||||||||
mechanical service life (switching cycles) | ||||||||||||||||||||||||||||||||||||||
● as operating period per direction of actuation typical | 100 000 | |||||||||||||||||||||||||||||||||||||
electrical endurance (switching cycles) typical | 10 000 000 | |||||||||||||||||||||||||||||||||||||
electrical endurance (switching cycles) with contactors 3RT1015 to 3RT1026 typical | 10 000 000 | |||||||||||||||||||||||||||||||||||||
thermal current | 10 A | |||||||||||||||||||||||||||||||||||||
reference code according to IEC 81346-2 | S | |||||||||||||||||||||||||||||||||||||
continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A | |||||||||||||||||||||||||||||||||||||
continuous current of the quick DIAZED fuse link | 10 A | |||||||||||||||||||||||||||||||||||||
continuous current of the DIAZED fuse link gG | 10 A | |||||||||||||||||||||||||||||||||||||
Substance Prohibitance (Date) | 10/01/2014 | |||||||||||||||||||||||||||||||||||||
operating voltage | ||||||||||||||||||||||||||||||||||||||
● at AC | ||||||||||||||||||||||||||||||||||||||
— at 50 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
— at 60 Hz rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
● at DC rated value | 5 ... 500 V | |||||||||||||||||||||||||||||||||||||
Power Electronics | ||||||||||||||||||||||||||||||||||||||
contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) | |||||||||||||||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||||||||||||||
design of the contact of auxiliary contacts | Silver alloy | |||||||||||||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 2 | |||||||||||||||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
type of electrical connection of modules and accessories | Screw-type terminal | |||||||||||||||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
● solid with core end processing | 2x (0.5 ... 0.75 mm²) | |||||||||||||||||||||||||||||||||||||
● solid without core end processing | 2x (1.0 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) | |||||||||||||||||||||||||||||||||||||
● at AWG cables | 2x (18 ... 14) | |||||||||||||||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||||||||||||||
tightening torque for auxiliary contacts with screw-type terminals | 0.8 ... 1 N·m | |||||||||||||||||||||||||||||||||||||
Safety related data | ||||||||||||||||||||||||||||||||||||||
B10 value with high demand rate according to SN 31920 | 100 000 | |||||||||||||||||||||||||||||||||||||
proportion of dangerous failures | ||||||||||||||||||||||||||||||||||||||
● with low demand rate according to SN 31920 | 20 % | |||||||||||||||||||||||||||||||||||||
● with high demand rate according to SN 31920 | 20 % | |||||||||||||||||||||||||||||||||||||
failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT | |||||||||||||||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
fastening method | front plate mounting | |||||||||||||||||||||||||||||||||||||
● of modules and accessories | Front plate mounting | |||||||||||||||||||||||||||||||||||||
height | 40 mm | |||||||||||||||||||||||||||||||||||||
width | 40 mm | |||||||||||||||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||||||||||||||
mounting diameter | 22.3 mm | |||||||||||||||||||||||||||||||||||||
positive tolerance of installation diameter | 0.4 mm | |||||||||||||||||||||||||||||||||||||
mounting height | 75.6 mm | |||||||||||||||||||||||||||||||||||||
installation width | 30.5 mm | |||||||||||||||||||||||||||||||||||||
installation depth | 53.7 mm | |||||||||||||||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
last modified: | 1/27/2022 | |||||||||||||||||||||||||||||||||||||
Date 5/14/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1100-7BA10-1NA0 | ||||||||||||||||||||||||||||||||||||
Product Description | Coordinate switch, 22 mm, round, plastic, black, 2 switch positions, horizontal latching, with mechanical interlocking, in O position, with holder, 1 NO, 1 NO, screw terminal, | ||||||||||||||||||||||||||||||||||||
Product family | Actuators and indicators, 22 mm, round, plastic, black | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,092 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 141,00 x 95,00 x 43,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209954762 | ||||||||||||||||||||||||||||||||||||
UPC | 804766405280 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85365080 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2014 | ||||||||||||||||||||||||||||||||||||
Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Rated operation current Ie at AC-21, 400 V (EF002417) | - | A |
Centre mounting, hole diameter (EF002424) | 22.3 | mm |
Joy stick length (EF006524) | 75.6 | mm |
Number of actuation directions (EF002425) | 2 | |
Number of switch levels (EF000246) | 2 | |
Number of normally open contacts per actuation direction (EF002427) | 2 | |
Number of normally closed contacts per actuation direction (EF008263) | 0 | |
Number of make-and-break contacts per direction (EF005599) | 0 | |
With retraction in 0-position (EF002428) | true | |
Locking in 0-position (EF006283) | false | |
Coder (EF005666) | false | |
Analogue output signal configurable (EF003236) | false | |
With front ring (EF006014) | true | |
Material front ring (EF005972) | Plastic | |
Colour front ring (EF002429) | Black | |
Degree of protection (IP) (EF005474) | IP65/IP67 | |
Degree of protection (NEMA) (EF011959) | - |
