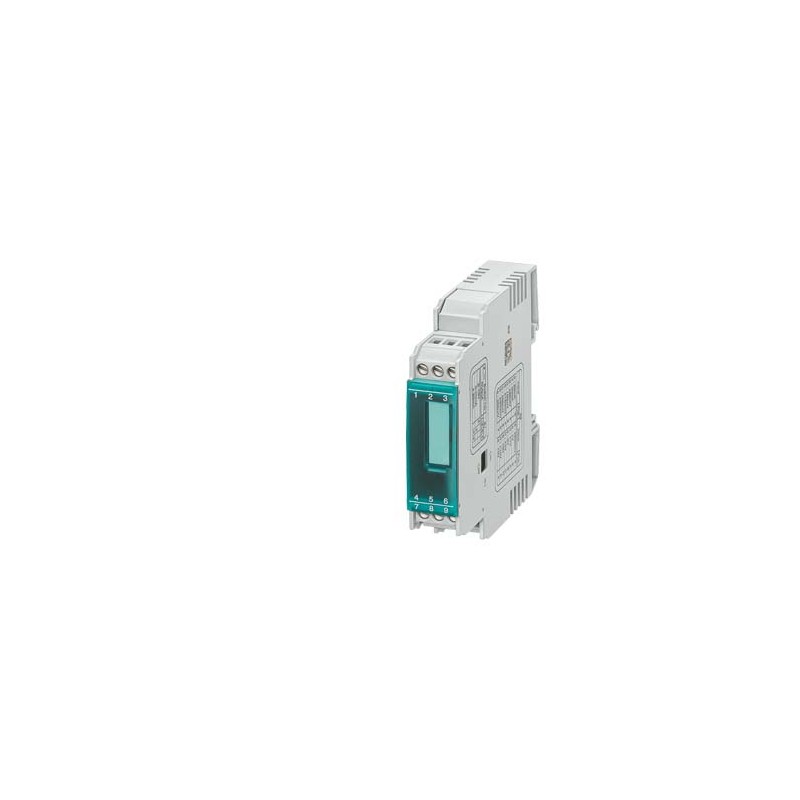

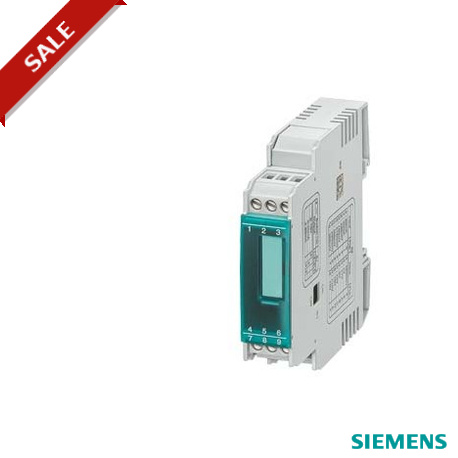

3RS1706-1FE08-0AA0 SIEMENS INTERFACE CONVERTER AC/DC 24 V, 3-WAY ISOLATION ON: 0-60MV, 0-100MV, 0-300MV, 0-5..
3RS1706-1FE08-0AA0
SIEMENS
INTERFACE CONVERTER AC/DC 24 V, 3-WAY ISOLATION ON: 0-60MV, 0-100MV, 0-300MV, 0-500MV, 0-1V, 0-2V, 0-5V, 0-10 0-20V, 2-10V, 0-5MA, 0-10MA, 0-20MA, 4-20MA, +-5MA, +-20MA OFF: 100MV PERMANENT SCREW CONNECTION
CONTROL AND CONTACTORS > Function relays
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| General technical data: | |||||||||||||||
| product brand name | SIRIUS | ||||||||||||||
| Product designation | universal converter | ||||||||||||||
| Design of the base unit | switchable, active | ||||||||||||||
| Number of channels | 1 | ||||||||||||||
| Ambient temperature | |||||||||||||||
| ● during operation | °C | -25 ... +60 | |||||||||||||
| ● during transport | °C | -40 ... +85 | |||||||||||||
| ● during storage | °C | -40 ... +85 | |||||||||||||
| Insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 2 rated value | V | 50 | |||||||||||||
| Consumed active power | W | 0.75 | |||||||||||||
| Protection class IP | IP20 | ||||||||||||||
| Vibration resistance acc. to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm | ||||||||||||||
| Shock resistance acc. to IEC 60068-2-27 | 15g / 11 ms | ||||||||||||||
| Equipment marking acc. to DIN EN 61346-2 | K | ||||||||||||||
| Equipment marking acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750 | K | ||||||||||||||
| Connections/ Terminals: | |||||||||||||||
| Type of electrical connection | screw-type terminals | ||||||||||||||
| Tightening torque with screw-type terminals | N·m | 0.4 ... 0.5 | |||||||||||||
| Type of connectable conductor cross-sections | |||||||||||||||
| ● solid | 1x (0.5 ... 2.5 mm²) | ||||||||||||||
| ● finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) | ||||||||||||||
| ● at AWG conductors | |||||||||||||||
| — stranded | 2x (20 ... 16) | ||||||||||||||
| Galvanic isolation: | |||||||||||||||
| Design of the electrical isolation | 3 paths | ||||||||||||||
| Galvanic isolation | |||||||||||||||
| ● between entrance and outlet | Yes | ||||||||||||||
| ● between the voltage supply and other circuits | No | ||||||||||||||
| Supply voltage: | |||||||||||||||
| Type of voltage | AC/DC | ||||||||||||||
| Supply voltage frequency rated value | Hz | 50 ... 60 | |||||||||||||
| Supply voltage | |||||||||||||||
| ● at AC | |||||||||||||||
| — at 50 Hz rated value | V | 24 ... 24 | |||||||||||||
| — at 60 Hz rated value | V | 24 ... 24 | |||||||||||||
| ● at DC rated value | V | 24 ... 24 | |||||||||||||
| Operating range factor supply voltage rated value | |||||||||||||||
| ● at AC | |||||||||||||||
| — at 50 Hz | 0.8 ... 1.2 | ||||||||||||||
| — at 60 Hz | 0.8 ... 1.2 | ||||||||||||||
| ● at DC | 0.7 ... 1.25 | ||||||||||||||
| Inputs: | |||||||||||||||
| Limit frequency | Hz | 30 | |||||||||||||
| Input voltage maximum | V | 30 | |||||||||||||
| Input voltage typical | V | 24 | |||||||||||||
| Outputs: | |||||||||||||||
| Load at the current output maximum | Ω | 400 | |||||||||||||
| Load at voltage output maximum | kΩ | 1 | |||||||||||||
| Property of the output Short-circuit proof | Yes | ||||||||||||||
| Overvoltage strength at the current output maximum | V | 30 | |||||||||||||
| Type of signal | |||||||||||||||
| ● at output | 100 mV fest | ||||||||||||||
| ● at input | 0 ... 60 mV, 0 ... 100 mV, 0 ... 300 mV, 0 ... 500 mV, 0 ... 1 V, 0 ... 2 V, 0 ... 5 V, 0 ... 10 V, 0 ... 20 V, 2 ... 10 V, 0 ... 5 mA, 0 ... 10 mA, 0 ... 20 mA, 4 ... 20 mA, +/-5 mA, +/-20 mA | ||||||||||||||
| Precision: | |||||||||||||||
| Relative metering precision | % | 0.1 | |||||||||||||
| Relative linearity deviation | % | 0.02 | |||||||||||||
| Temperature drift per °C | %/°C | 0.015 | |||||||||||||
| Rise time | ms | 10 | |||||||||||||
| Settling time for 1 % deviation | ms | 30 | |||||||||||||
| Voltage ripple maximum | mV | 5 | |||||||||||||
| Installation/ mounting/ dimensions: | |||||||||||||||
| Mounting type | snap-on mounting on 35 mm DIN rail according to DIN EN 50022 | ||||||||||||||
| Mounting position | any | ||||||||||||||
| Height | mm | 79 | |||||||||||||
| Width | mm | 17.5 | |||||||||||||
| Depth | mm | 84 | |||||||||||||
| Certificates/ approvals: | |||||||||||||||
| |||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3RS1706-1FE08-0AA0 SIEMENS INTERFACE CONVERTER AC/DC 24 V, 3-WAY ISOLATION ON: 0-60MV, 0-100MV, 0-300MV, | 71 Kbytes |
|
